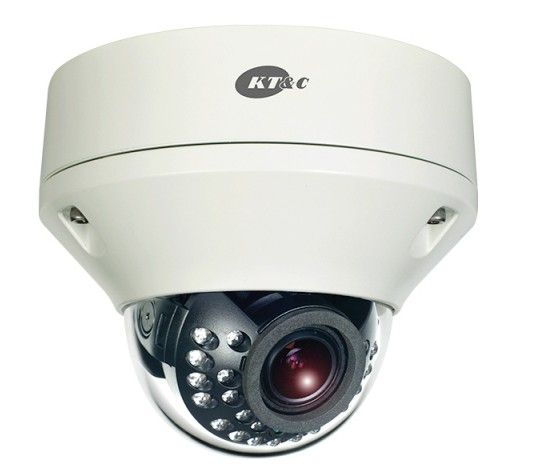

The KEZ-c2DR28V12IRN from KT&C is a 1080p HD-TVI outdoor dome with IR.
Features:
- Superlative HD resolution of 1080p Full HD or 720p HD for amazing image quality
- useful digital zoom on live view and playback
- Field select 1080p or 720p
- Field select 30/25 Hz or 60/50 Hz - Operation over ‘almost any’ wire
- More than 1000 feet on standard RG59 coax
- More than 1500 feet on RG6
- More than 500 feet on UTP (one pair from a Cat5e cable, using optional KA-HDBAL1 balun pair) - HD-TVI HD BNC main output
- CVBS analog service video output inside housing
- Use standard hand held test monitors
- Convenient aim and focus; ease of service - 1/3” Sony progressive scan CMOS sensor with .5 lux native light sensitivity
- Varifocal Aspheric 2.8~12mm 2 Megapixel lens to capture the desired field of view
- True Day/Night zero light operating range of 66 feet or more (depending on scene reflectivity) from 24 IR LEDs
- Smart IR automatic exposure level adjust to achieve the desired IR brightness despite reflections and bright spots
- Simple and easy to use OSD setup menu
- Local 3-axis joystick inside access cover
- Up-the-cable control from OMNI EZHD recorders (or other compatible Coaxitron® control equipment)
- Digital slow shutter (Sens-Up) low light enhancement
- Digital Wide Dynamic Range to handle the most challenging of bright or unbalanced lighting conditions
- Programmable Back Light Compensation (BLC) and Highlight Suppression Back Light Compensation (HSBLC)
- Adjustable 3D Noise Reduction to increase low light picture clarity and conserve DVR HDD disk space
- Privacy masking for 8 configurable zones
- Lens shading compensation for even exposure out to the lens periphery
- Defog improves image contrast in the presence of haze or smoke that obscures image details - Image H/V flip and rotate, digital zoom and more
- Dual voltage 24VAC/12VDC operation with low current draw
- IP68 water proof, vandal proof construction
- Operating temperature range of -40°F~140°F
- Easy mounting using 3-Axis positioning for convenient wall or ceiling mounting
|
Imaging Device |
1/3" Sony 2.1Mp Progressive Scan CMOS |
|
Video Format |
Main Output: 1080p30/25, 720p60/50 HD-TVI (OSD selectable) Secondary Output: CVBS (OSD selectable NTSC/PAL) service video test point |
|
Picture Elements |
1984 (H) x 1105 (V) |
|
Effective Picture Elements |
1920 (H) x 1080 (V) |
|
Horizontal Resolution |
More than 1080 HTVL (in 1080p mode) |
|
Sensitivity |
0 lux IR on; .5 lux @ F1.6 (AGC On) |
|
Day/Night Type |
True Day/Night with ICR motorized filter control |
|
Lens Type |
2 Megapixel Varifocal Type 2.8~12mm F=1.6 IR corrected |
|
IR LED |
24 Smart IR LEDs, 850nm |
|
IR Range† |
66’ / 20m |
|
Smart IR Exposure Adjust |
Active when IR enabled: Off/Low/Mid/High |
|
Video Output Connector Type |
TVI and CVBS: BNC 75Ω Test Video: CVBS video test point inside access cover, cable to BNC supplied |
|
Sync. Mode |
Internal |
|
OSD Menu |
Multiple functions using 3-axis joystick inside housing; UTC Control |
|
OSD Languages |
English, Spanish, Portuguese, German, Russian, Japanese, French |
|
UTC Control |
Full OSD Menu access via up-the-cable (Coaxitron® type ) signaling |
|
DWDR / BLC / HSBLC |
OFF/WDR/BLC/HSBLC Selectable Adjustable for Level 1~10; also BLC area, HLC color. |
|
Auto Gain Control |
OFF; 2~42dB |
|
Electronic Shutter |
Auto; FLK; or Manual 1/30 (25) to 1/30,000 |
|
White Balance |
Auto / Push Lock / Manual |
|
Color Correction |
Gamma 0.45~.65, adjustable |
|
Day & Night |
Auto True D/N with motorized ICR, controlled by photo sensor. Optional color-only and B/W only modes under OSD control |
|
Sens-Up |
DSS low light boost Off/Auto 2X~16X* |
|
3D-DNR |
Off/Low/Mid/High |
|
Digital Zoom |
1X~8X |
|
Defog |
Off/Low/Mid/High |
|
Mirror |
Off / H-flip, V-flip, rotate |
|
Motion Detection |
Off/On for programmable zone with sensitivity adjust (pixel change detection) |
|
Privacy Mask |
Off/On with full programmability for 8 selectable zones |
|
Lens Shading Compensation) |
Off/Low/Mid/High |
|
DPC (Defective Pixel Correction) |
Off/On |
|
Other OSD Functions |
Camera Title with position, Font Color; Image Sharpness |
|
Power Source |
12VDC/24VAC |
|
Power Consumption |
12VDC: 350mA, 24VAC: 4W (IR LED On) |
|
Operating Temperature |
-40 °F ~ 140 °F (-40 °C ~ 60 °C) |
|
Environmental |
IP68 water proof |
|
Mechanical |
Vandal proof metal construction |
|
Positioning |
3-axis flexible positioning for wall or ceiling mounting |
|
Dimensions |
Ø5.24” × 4.4” [Ø133 × 111.8mm] |
|
Weight |
1.63 lbs./.74 Kg |
|
Mounting Options |
Electrical box adapter: KA-RCMP1; Wall mount arm with ring: KA-WM101 |
|
Certifications |
CE / FCC / RoHS |
