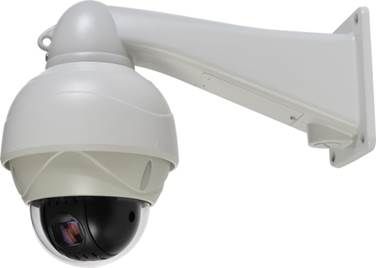

KT&C - KNC-SPDNi120HD - IP PTZ Camera
Part number:
KNC-SPDNi120HD
Price:
IP PTZ Camera
Features:
- 1/2.8” SONY Exmor CMOS
- 2.1Megapixel
- Min.Illumination of 0.1 Lux
- 12x Optical Zoom Lens
- True Day & Night with ICR Mechanism
- IP66 (Weather Resistant)
- AV 24V Power
| Camera Signal | Network IP |
|---|---|
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2.1 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 12X |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Bubble (4.4), 6.5 x 13.4 x 10 inch (Bubble (112), 166 x 341 x 255 mm) |
| Electronic Shutter | 1/30 ~ 1/10,000 |
| Image Device | 1/2.8” SONY Exmor CMOS |
| Image Pixels Total | 2144 x 1588 |
| Minimum Scene Illumination | 0.1 Lux / F2.0 |
| Operating Temperature | 14F ~ 122F (-10?C ~ 50C) |
| Power Requirements | PoE class 4 (IEEE 802.3at Type2)AC 24V 38.5 W (Heater on) |
| Protocols | IPv4, HTTP, TCP, RTSP, RTP, UDP, IGMP, RTCP, SMTP, FTP, ICMP, DHCP, ARP, DNS, DDNS, HTTPS, UpnP |
| Weatherproof | IP66 |
| Processor | CPU: ARM 926EJ-S |
| Rotation Angle | Pan 360° Endless Rotation, Tilt 180° Vector scan |
