The OMNI960-16 DVRs: record up to 30FPS @ full 960H/WD1 resolution – REAL TIME on ALL channels. To help manage LAN/WAN bandwidth for efficient remote monitoring the OMNI960-16 implements sub-stream recording. The DVR simultaneously creates and captures both the 960H high resolution image and a second stream at a separately controllable lower resolution and rate that conserves bandwidth for remote display of single or multiple displays of live and playback camera images on a PC, smart phone or tablet via cellular or low bandwidth WAN networks. With sub-stream LIVE and PLAYBACK, it is practical to remotely display multi-camera views at low bandwidth, yet at the click of a mouse the DVR can be directed to supply a fully detailed high resolution image on demand. For extreme bandwidth conservation, the OMNI960-16 DVRs offer a unique Channel 0 remote stream which displays a user defined multi-view in the bandwidth of a single channel.

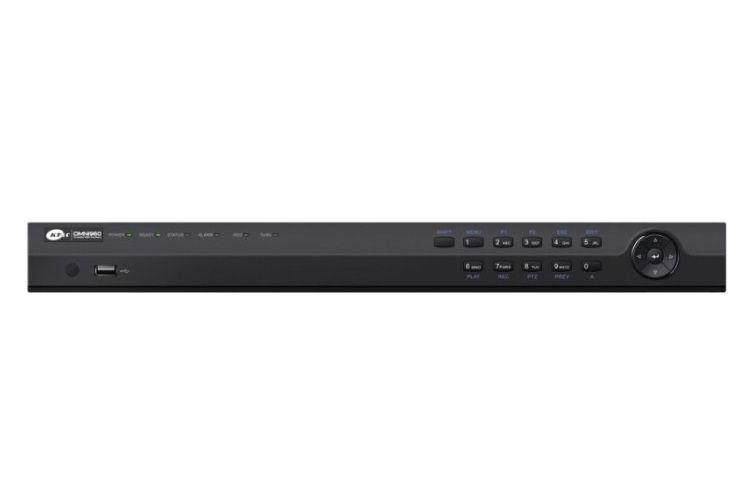

The OMNI960-16 DVRs come with multiple control inputs. These inputs include USB mouse control, front panel controls and included IR hand held remote control. Mouse control is combined with a simple Graphical User Interface (GUI), offering experienced PC users the similarity of interactive command to that employed with other computer-controlled devices. With the GUI, users can command specific actions on the OMNI960-16 DVRs through graphical icons and visual indicators. All GUI functions can also be controlled via the front panel keys and IR remote as well.
The OMNI960-16 incorporates a powerful combination of local and remote high resolution monitoring, recording and playback capabilities in a user friendly, easy to operate, familiar DVR system. Get the most out of your 600~750HTVL cameras and experience flexible analog video surveillance with the OMNI960-16.
Features:
- WD1 960x480 recording delivers 36% more detail than traditional 4CIF (704x480)
- H.264 Compression for efficient HDD utilization and streaming
- NTSC/PAL automatic signal selection
- WD1 real-time live display and recording all channels; real time playback on up to 4 channels
- Independent channel setup for resolution/FPS/bitrate/image quality/normal & event record
- HDMI (720p/1080p) + VGA (to 1920x1080) + BNC main monitors support any type of display
- Simultaneous high bandwidth recording (480 NTSC/400 PAL @WD1) plus sub-stream recording for reduced bandwidth remote viewing
- Unique Channel 0 remote stream displays user defined multi-view in the bandwidth of a single channel
- Pentaplex Operation (Simultaneous live, recording, playback, archiving and remote viewing)
- User friendly GUI with graphical icons and visual indicators
-- Easy to use on-screen menus include digital zoom and instant playback of recent video
-- Operate using front panel controls, wheel mouse or included IR remote - Quickly locate and review event video
-- Search by date/time, or preview images by pointing along a color coded timeline of record type
-- Tag video of interest for easy retrieval or export
-- Play based on results of extensive event/alarm log search
-- Use “Smart Search” to define an area of interest; the NVR quickly reviews recorded video to list instances of motion in that area for review by the operator - Watermarking for validation of recorded video
- Easy router setup for remote access: uPnP automatically sets up port forwarding (router must support/allow uPnP)
- Free DDNS Service – static IP address is not required for reliable remote access
- Supports individual HDD sizes up to 4Tb for extended recording; Up to 2 HDD
- Free iOS and Android app:
-- Scroll though single/quad display live views
-- Playback specific cameras by date/time plus easy slider control
-- Audio monitoring support
-- Mobile PTZ control
-- Relay control
-- Up to 16 camera views from HD tablets (HD app) - Multiple Control Inputs: mouse / front panel / hand held IR remote controller (included)
- Remote configuration support from built-in web interface and/or free CMS program
- Ethernet (10/100) interface for remote network viewing and control
- On-screen PTZ control via mouse or front panel
- Audio recording capabilities plus two-way audio support
- USB 2.0 ports on front and rear panels for video archive and mouse usage
- Free Windows CMS displays dozens of cameras
- Free MAC client software connects to individual sites for live view and playback
- Multi-language support
- Rack mountable with rack ears (order KA-ORM1)
|
Video inputs |
16-ch |
|
Video input interface |
BNC (1.0 Vp-p, 75 Ω), PAL /NTSC auto detection |
|
Audio input |
1-ch, RCA (2.0 Vp-p, 1 kΩ) |
|
Two-way audio |
Audio input pass through to remote web or CMS client; remote audio from web or CMS client pass through to audio output |
|
Encoding resolution |
WD1 (960x480) / 4CIF / 2CIF / CIF / QCIF |
|
Video compression |
H.264 |
|
Dual-stream |
Supported; sub-stream @ CIF/ QCIF @ 25 fps (P) / 30 fps (N) |
|
Stream types |
Video, Video & Audio |
|
Frame rate per camera |
25 fps (P) / 30 fps (N) |
|
Video bit rate per camera |
32 Kbps ~ 3072 Kbps, or user defined (Max. 3072 Kbps) |
|
Recording Modes |
Continuous, Motion |
|
Motion Detection |
Configurable per camera for area(s), sensitivity and arming schedule programmable by day of week and hour of day |
|
Schedule Period |
Per day in 1 hour blocks; or 8 time periods per day, each with different record mode; plus holidays |
|
Pre- and Post- Event Recording |
Pre-record 0~30 seconds; post record 5s~10 minutes |
|
Audio compression |
G.711 |
|
Audio bit rate |
64 Kbps |
|
HDMI/VGA output |
1080P: 1920×1080/60Hz; SXGA: 1280×1024/60Hz; 720P: 1280×720/60Hz; XGA: 1024×768/60Hz |
|
CVBS output |
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
|
Audio output |
1-ch, RCA (Linear, 1 kΩ) |
|
Synchronous playback |
16-ch |
|
Playback search modes |
Time/Date; motion or log event; Manual Tags; Smart Search for motion events from recorded video |
|
Playback Controls |
Play; Pause; Forward/Reverse; speed control for single~1.8~16X; Slide bar with over- view of record type and snapshot display from slider position |
|
Digital Zoom During Playback |
Supported on Local Displays and CMS |
|
SATA |
2 SATA interfaces |
|
Capacity |
Up to 4TB capacity for each disk |
|
NAS/SAN |
up to 8 network disks (8 NAS disks, or 7 NAS disks +1 IP SAN disk) |
|
Network interface |
1, RJ45 10M / 100M Ethernet interface |
|
DST/NTP |
Supported; choice of time zone, NTP server, DST start/end/offset |
|
Port Mapping/uPnP |
Automatic port forwarding/redirection using uPnP on routers with this capability |
|
Serial interface |
1 RS-485 interface, half-duplex |
|
USB interface |
2, USB 2.0 |
|
Built-in Web Server Interface |
Live view, playback and configuration via IE, Chrome, Firefox, Safari (with free plug-in/ extension installed) |
|
CMS |
PC and MAC Client supports multiple device viewing, playback (with digital zoom) and configuration; user rights per camera; E-map support; live view up to 64 cameras in 4:3 and 48 cameras in 16:9; up to 16 cameras in playback |
|
Mobile Apps |
iOS and Android supported ; live 1 & 4 camera views; single camera playback; snap- shots from live or play; copy clips/record to smartphone; audio support; PTZ control. HD version of app, optimized for tablets, displays up to 16 live view cameras |
|
User Rights Control |
Per user-per camera for multiple functions |
|
Event Logging |
Multiple types: alarm, exception, operation, information; dozens of sub-types within each major type |
|
Firmware Upgrade |
From USB or remotely |
|
Backup/Restore Configuration |
From USB or remotely |
|
Power supply |
12 VDC |
|
Consumption |
≤ 20 W |
|
Operating Temperature |
-10 ºC ~+55 ºC |
|
Operating Humidity Range |
10% ~ 90% |
|
Chassis Type |
19-inch rack-mountable 1U chassis (Optional rack ears KA-ORM1) |
|
Dimensions (W × D × H) |
17.52” x 11.42” x 1.77” 445 × 290 × 45mm |
|
Weight |
≤ 8.8 lb. ≤ 4 kg (without hard disk) |
