The OMNI960-8 DVR record up to 30FPS @ full 960H/WD1 resolution – REAL TIME on ALL channels. To help manage LAN/WAN bandwidth for efficient remote monitoring the OMNI960-8 implements sub-stream re-cording. The DVR simultaneously creates and captures both the 960H high resolution image and a second stream at a separately controllable lower resolution and rate that conserves bandwidth for remote display of single or multiple displays of live and playback camera images on a PC, smart phone or tablet via cellular or low bandwidth WAN networks. With sub-stream LIVE and PLAYBACK, it is practical to remotely display multi-camera views at low bandwidth, yet at the click of a mouse the DVR can be directed to supply a fully detailed high resolution image on demand. For extreme bandwidth conservation, the OMNI960-8 DVRs offer a unique Channel 0 remote stream which displays a user defined multi-view in the bandwidth of a single channel.

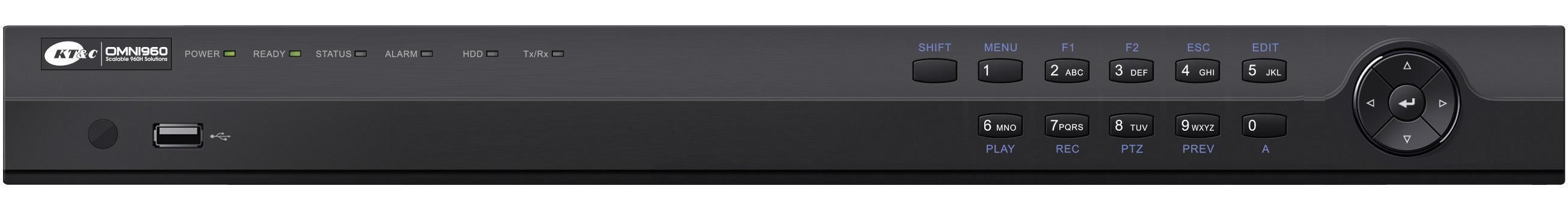

The OMNI960-8 DVR come with multiple control inputs. These inputs include USB mouse control, front panel controls and included IR hand held remote control. Mouse control is combined with a simple Graphical User Interface (GUI), offering experienced PC users the similarity of interactive command to that employed with other computer-controlled devices. With the GUI, users can command specific actions on the OMNI960 Series DVRs through graphical icons and visual indicators. All GUI functions can also be controlled via the front panel keys and IR remote as well.
Features:
- WD1 960x480 recording delivers 36% more detail than traditional 4CIF (704x480)
- H.264 Compression for efficient HDD utilization and streaming
- NTSC/PAL automatic signal selection
- WD1 real-time live display and recording all channels; real time playback on up to 4 channels
- Independent channel setup for resolution/FPS/bitrate/image quality/normal & event record
- HDMI (720p/1080p) + VGA (to 1920x1080) + BNC main monitors support any type of display
- Simultaneous high bandwidth recording (480 NTSC/400 PAL @WD1) plus sub-stream recording for reduced bandwidth remote viewing
- Unique Channel 0 remote stream displays user defined multi-view in the bandwidth of a single channel
- Pentaplex Operation (Simultaneous live, recording, playback, archiving and remote viewing)
- User friendly GUI with graphical icons and visual indicators
-- Easy to use on-screen menus include digital zoom and instant playback of recent video
-- Operate using front panel controls, wheel mouse or included IR remote - Quickly locate and review event video
-- Search by date/time, or preview images by pointing along a color coded timeline of record type
-- Tag video of interest for easy retrieval or export
-- Play based on results of extensive event/alarm log search
-- Use “Smart Search” to define an area of interest; the NVR quickly reviews recorded video to list instances of motion in that area for review by the operator - Watermarking for validation of recorded video
- Easy router setup for remote access: uPnP automatically sets up port forwarding (router must support/allow uPnP)
- Free DDNS Service – static IP address is not required for reliable remote access
- Supports individual HDD sizes up to 4Tb for extended recording; Up to 2 HDD
- Free iOS and Android app:
-- Scroll though single/quad display live views
-- Playback specific cameras by date/time plus easy slider control
-- Audio monitoring support
-- Mobile PTZ control
-- Relay control
-- Up to 16 camera views from HD tablets (HD app) - Multiple Control Inputs: mouse / front panel / hand held IR remote controller (included)
- Remote configuration support from built-in web interface and/or free CMS program
- Ethernet (10/100) interface for remote network viewing and control
- On-screen PTZ control via mouse or front panel
- Audio recording capabilities plus two-way audio support
- USB 2.0 ports on front and rear panels for video archive and mouse usage
- Free Windows CMS displays dozens of cameras
- Free MAC client software connects to individual sites for live view and playback
- Multi-language support
- Rack mountable with rack ears (order KA-ORM1)
| Video inputs | 8-ch |
| Video input interface | BNC (1.0 Vp-p, 75 Ω), PAL /NTSC auto detection |
| Audio input | 1-ch, RCA (2.0 Vp-p, 1 kΩ) |
| Two-way audio | Audio input pass through to remote web or CMS client; remote audio from web or CMS client pass through to audio output |
| Encoding resolution | WD1 (960x480) / 4CIF / 2CIF / CIF / QCIF |
| Video compression | H.264 |
| Dual-stream | Supported; sub-stream @ CIF/ QCIF @ 25 fps (P) / 30 fps (N) |
| Stream types | Video, Video & Audio |
| Frame rate per camera | 25 fps (P) / 30 fps (N) |
| Video bit rate per camera | 32 Kbps ~ 3072 Kbps, or user defined (Max. 3072 Kbps) |
| Recording Modes | Continuous, Motion |
| Motion Detection | Configurable per camera for area(s), sensitivity and arming schedule programmable by day of week and hour of day |
| Schedule Period | Per day in 1 hour blocks; or 8 time periods per day, each with different record mode; plus holidays |
| Pre- and Post- Event Recording | Pre-record 0~30 seconds; post record 5s~10 minutes |
| Audio compression | G.711 |
| Audio bit rate | 64 Kbps |
| HDMI/VGA output | 1080P: 1920×1080/60Hz; SXGA: 1280×1024/60Hz; 720P: 1280×720/60Hz; XGA: 1024×768/60Hz |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio output | 1-ch, RCA (Linear, 1 kΩ) |
| Synchronous playback | 8-ch |
| Playback search modes | Time/Date; motion or log event; Manual Tags; Smart Search for motion events from recorded video |
| Playback Controls | Play; Pause; Forward/Reverse; speed control for single~1.8~16X; Slide bar with over- view of record type and snapshot display from slider position |
| Digital Zoom During Playback | Supported on Local Displays and CMS |
| SATA | 2 SATA interfaces |
| Capacity | Up to 4TB capacity for each disk |
| NAS/SAN | up to 8 network disks (8 NAS disks, or 7 NAS disks +1 IP SAN disk) |
| Network interface | 1, RJ45 10M / 100M Ethernet interface |
| DST/NTP | Supported; choice of time zone, NTP server, DST start/end/offset |
| Port Mapping/uPnP | Automatic port forwarding/redirection using uPnP on routers with this capability |
| Serial interface | 1 RS-485 interface, half-duplex |
| USB interface | 2, USB 2.0 |
| Built-in Web Server Interface | Live view, playback and configuration via IE, Chrome, Firefox, Safari (with free plug-in/ extension installed) |
| CMS | PC and MAC Client supports multiple device viewing, playback (with digital zoom) and configuration; user rights per camera; E-map support; live view up to 64 cameras in 4:3 and 48 cameras in 16:9; up to 16 cameras in playback |
| Mobile Apps | iOS and Android supported ; live 1 & 4 camera views; single camera playback; snap- shots from live or play; copy clips/record to smartphone; audio support; PTZ control. HD version of app, optimized for tablets, displays up to 16 live view cameras |
| User Rights Control | Per user-per camera for multiple functions |
| Event Logging | Multiple types: alarm, exception, operation, information; dozens of sub-types within each major type |
| Firmware Upgrade | From USB or remotely |
| Backup/Restore Configuration | From USB or remotely |
| Power supply | 12 VDC |
| Consumption | ≤ 15 W |
| Operating Temperature | -10 ºC ~+55 ºC |
| Operating Humidity Range | 10% ~ 90% |
| Chassis Type | 19-inch rack-mountable 1U chassis (Optional rack ears KA-ORM1) |
| Dimensions (W × D × H) | 17.52” x 11.42” x 1.77” 445 × 290 × 45mm |
| Weight | ≤ 8.8 lb. ≤ 4 kg (without hard disk) |
