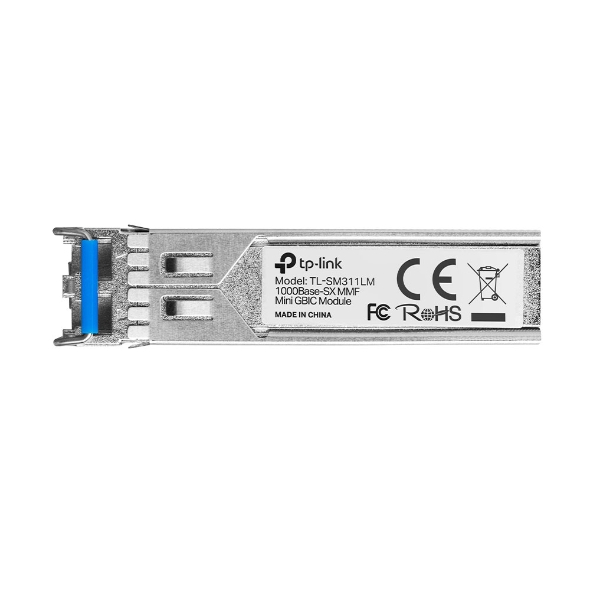

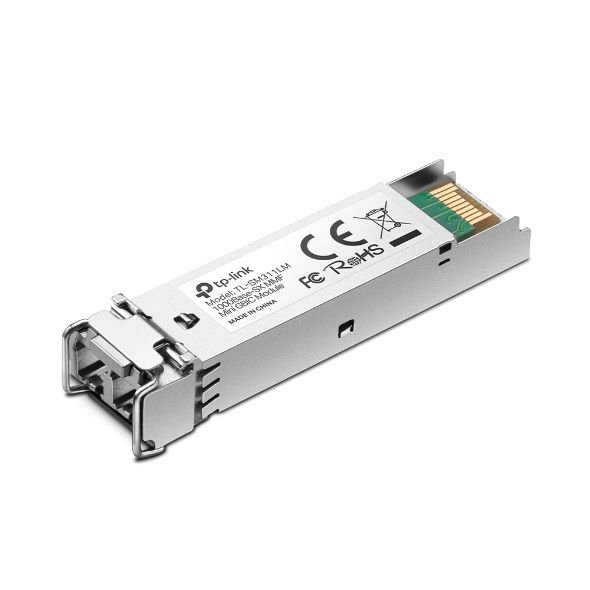

TP-Link - TL-SM311LM - LC MINIGBIC 802.3 PERP COMPLIANT TCP/IP 550/275M
Part number:
TL-SM311LM
Price:
MiniGBIC Module
Features:
- Multi-mode MiniGBIC module

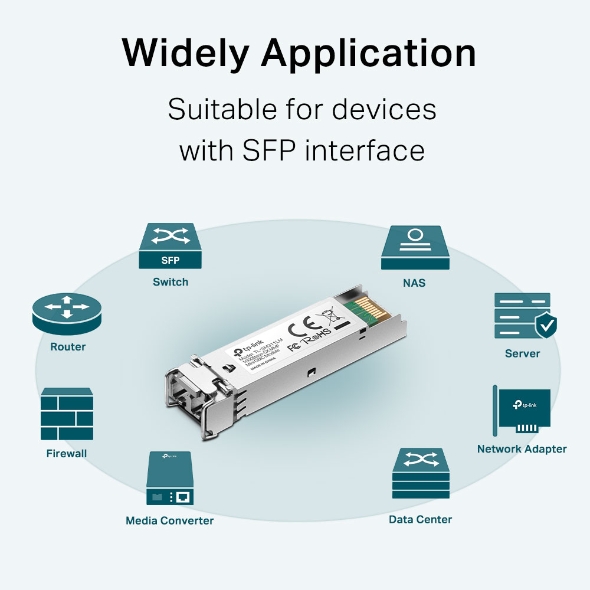

- Compatible with all SFP ports on TP-Link product including JetStream switches, and media converter MC220L.
- Work with MC200CM with a multi-mode fiber connection
- Up to 550m range with 50/125 μm multi-mode fiber
- Up to 275m range with 62.5/125 μm multi-mode fiber
| MEDIA CONVERTER & MODULE | |
| Standards and Protocols | IEEE 802.3z, CSMA/CD, TCP/IP |
| Wave Length | 850nm |
| Power Supply | 3.3V |
| Safety & Emission | FCC, CE |
| Cabel | Multi-mode Fiber |
| Fiber Type | 50/125μm or 62.5/125μm Multi-mode |
| Max. Cable Length | 550m |
| Data Rate | 1.25Gbps |
| Port Type | LC/UPC |
| Environment | Operating Temperature: 0℃~70℃ (32℉~158℉) |
| Storage Temperature: -40℃~80℃ (-40℉~176℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
| Package Contents | • SFP Module TL-SM311LM |
| • Installation Guide |
