LOUROE - LE-007 - Bi-Directional Speaker Microphone Surface/Flush Mount

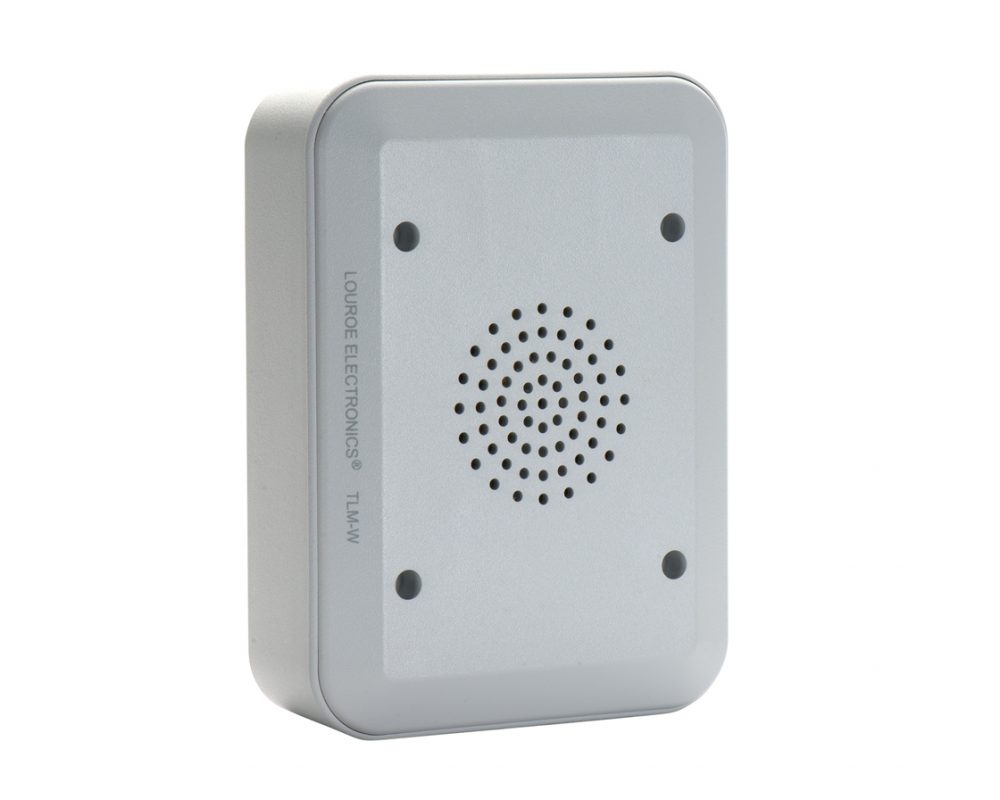

Models TLM-W is a two-way speaker/microphone with an electret condenser microphone and 2.5” speaker, all within one housing. As part of a Louroe audio system, It provides two-way communication between the remote area and the audio receiving device (Louroe Base Station, etc). Provided with the unit is a plastic back box for surface mounting to a wall.



Application

  • Sleep Disorder Labs
  • Convenience Stores
  • Security Entrances (Indoor)
  • Parking Structures
  • Therapy Labs
  • Company Training Sessions
  • Elevator Cabs

Features

  • Sturdy ABS plastic housing
  • Flush mounting requires a standard 3 gang electrical +box
  • Microphone pre-amp contains sensitivity switch to lower +gain
  • Omni-directional microphone and 2.5” speaker
  • UL listed
  • Compatible with any Louroe 2 way Audio Base Stations
  • May be installed up to 1,000’ from base station
Part number:
LE-007
Price:
Output of microphone (Mic) Line Level (0 dB, 600W @ 1K Ohm)
Frequency Response (Mic) 40 Hz to 15 kHz
Current Drain (mic) 10 mA
Speaker 2 1/2”, 7W w/ 70V transformer
Faceplate 6.8”L x 5.12”W x 0.5”D
Backbox 6.92”L x 5.12”W x 1.62”D
Weight 13 oz
Shipping Weight 2 lbs
Name
Description
Size
Downloads
File
Instructions
2.4mb
File
Specifications
0.3mb
