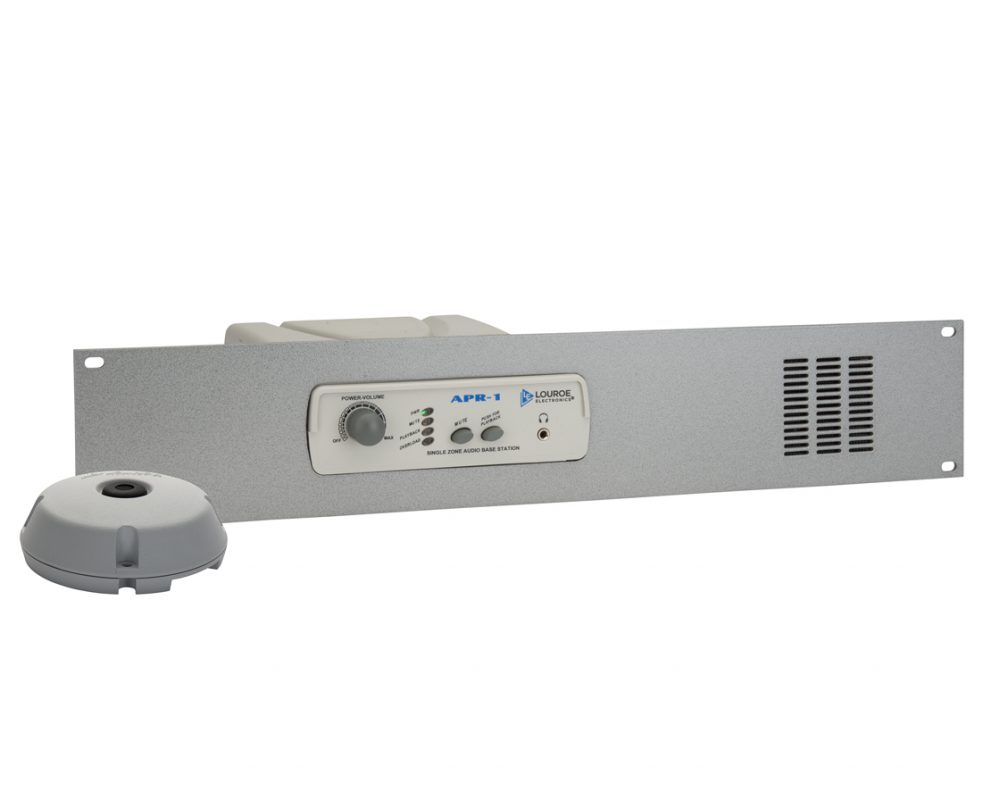

The ASK-4 101-RM is a rack mounted single zone audio monitoring system designed to interface with a DVR, VCR or other recording devices that accept line level input. The APR-1 Audio Base Station contains a built-in 3” speaker and volume control for producing live audio and audio playback. The Verifact A is an omnidirectional pre-amplified microphone that produces line level output.
Contents
Application
The ASK-4 #101-RM is designed for numerous applications such as:
Features
| Specifications (Microphone - Model A) | |
| Type | Electret Condenser |
| Output | Line Level (0 dBV, 600 Ohm @ 1 kHz) |
| Frequency response | 40 Hz to 15 kHz ± 1 dB |
| Current drain | 10 mA |
| Supply voltage | 12Vdc |
| Dimensions | 4"Dia x 1 ½"H |
| Specifications ((Base Station - APR-1) | |
| Monitor output power | 1W@8 Ohm |
| Audio line output impedance | 600 Ohm or higher |
| Audio input impedance | 10K Ohm |
| Freq. response | 100 Hz to 10 kHz |
| Headphone impedance | 8 to 600 Ohm |
| Universal power supply | 12 Vdc, 500 mA |
| Dimensions | 19"L x 3 1/2”W x 8 1/4"D |
| Weight | 2 lb 6 oz |
| Weight (shipping) of kit | 4 lbs |
