LOUROE - LE-019 - Single Zone Base Station w/Verifact® D Microphone/Rack Mounted

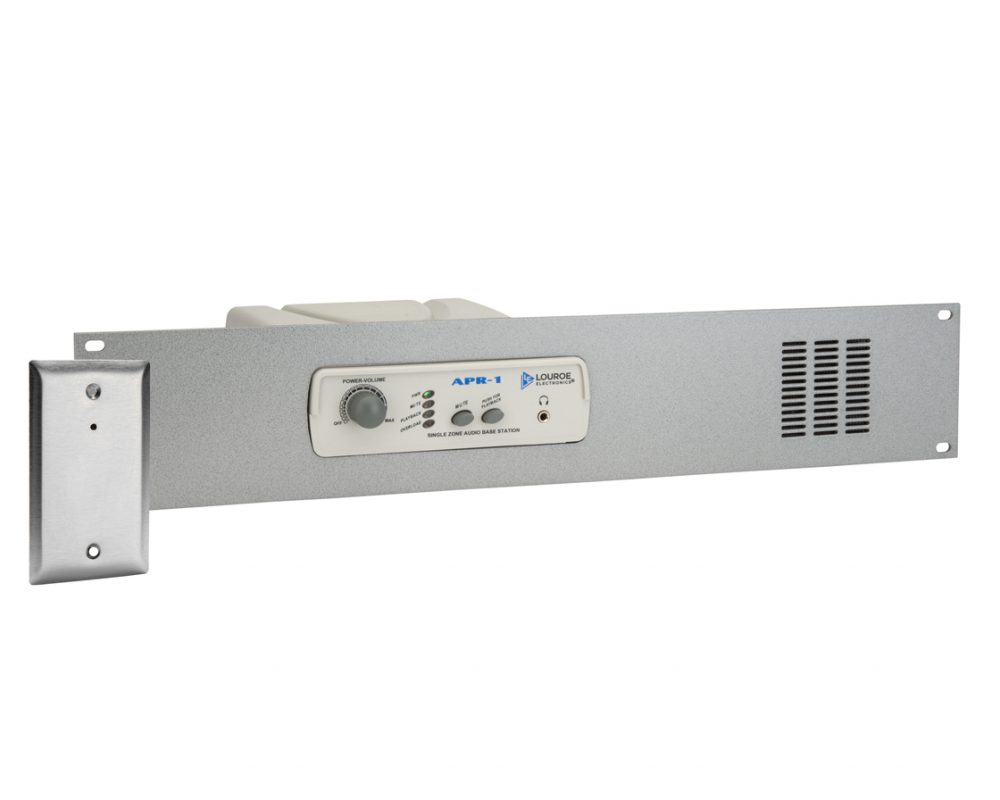

The ASK-4 102-RM is a rack mounted single zone audio monitoring system designed to interface with a DVR, VCR or other recording devices that accept line level input. The APR-1 Audio Base Station contains a built-in 3” speaker and volume control for producing live audio and audio playback. The Verifact D is an omnidirectional pre-amplified microphone that produces line level output.

Contents

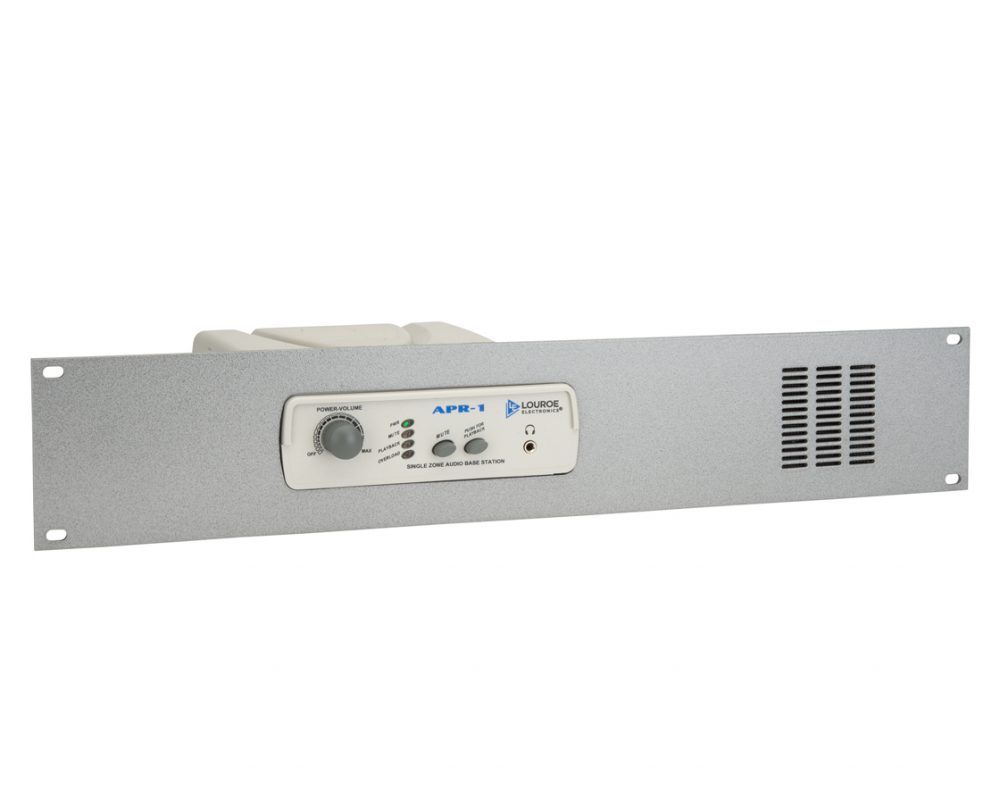

• APR-1 Audio Base Station.

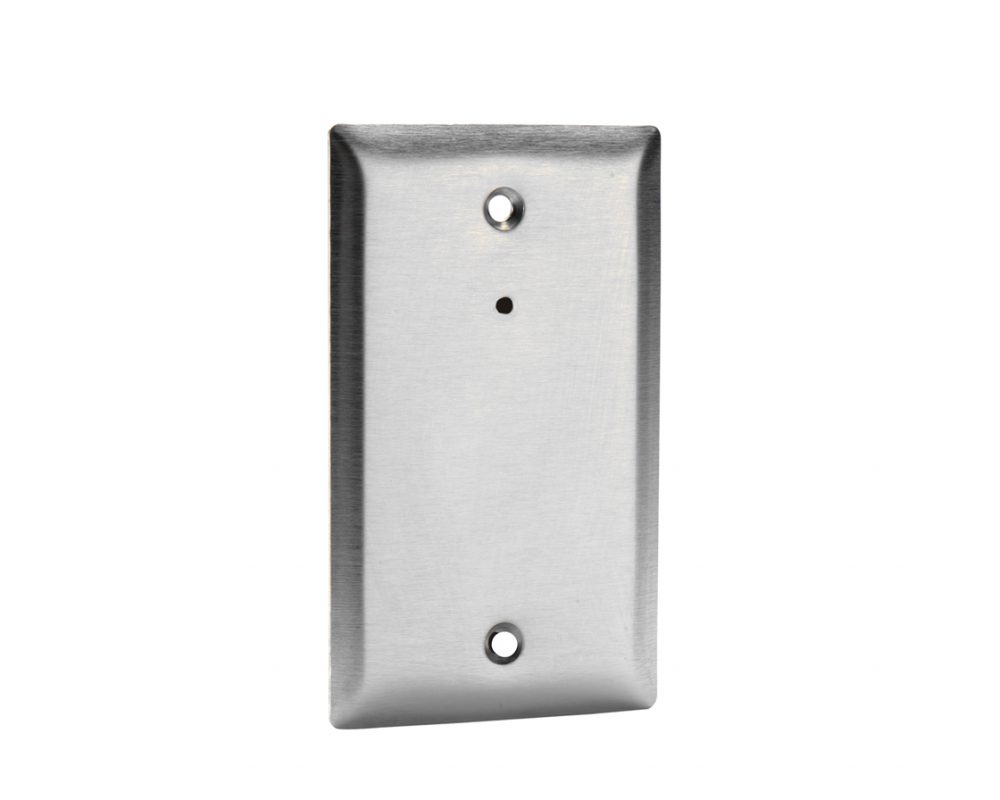

• Verifact D Microphone
• AD-1 Listed AC ADAPTER.
• Dual RCA Cable .
• RM-1935-APR Rack mount assembly (19”W x 3 ½ ‘H)

Application

The ASK-4 #102-RM is designed for numerous applications such as:

• Convenience Stores
• Fast Food Restaurants
• Booking Rooms
• Interrogation Rooms
• Car dealership sales contract rooms
• Child Abuse Interviews
• Sleep Disorder Centers
• Speech Therapy Labs
• Cashier Booths
• Casino use in:
  • - soft count rooms
  • - detention centers
  • - medical treatment rooms
  • - cash cages

Features

• Audio output (RCA) to DVR, VCR
• Omni-directional microphone can pick up normal sounds 15' away if wall mounted, or within a 30' diameter circle +if ceiling mounted
• 3" speaker for monitoring live audio and playback from a +DVR or VCR
• 3.5 mm headphone jack for private listening
• Microphone may be mounted up to 1000’ from the APR1 Base Station
