LOUROE - LE-025 - Single Zone, Bi-directional, w/ TLM-W

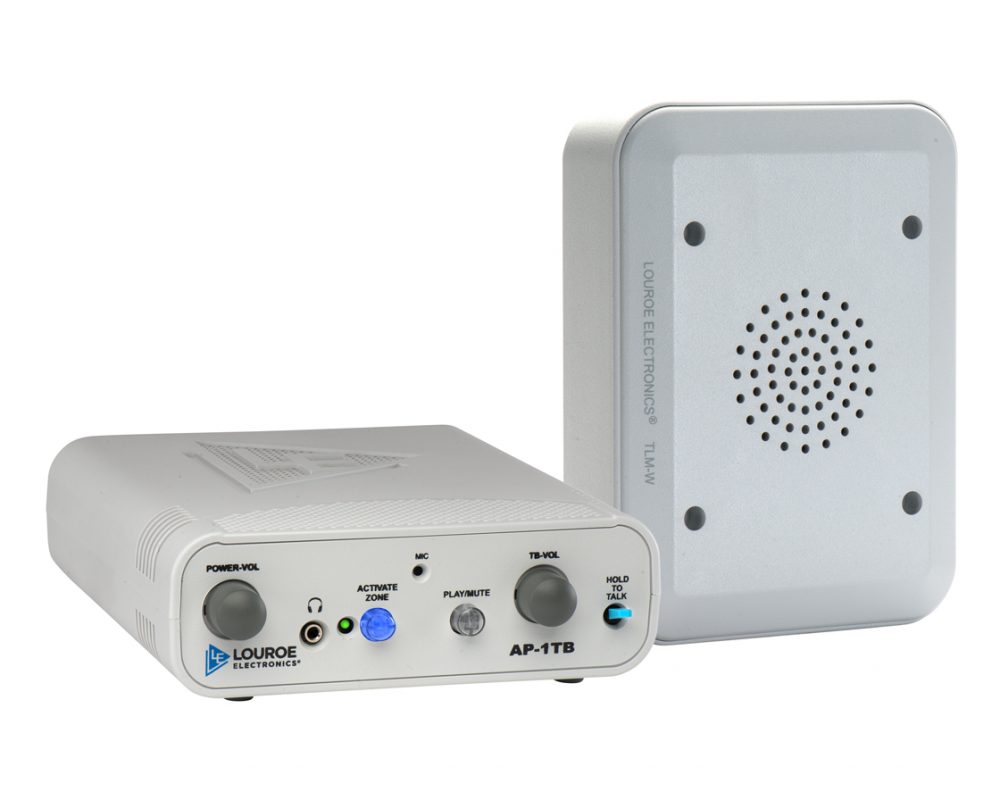

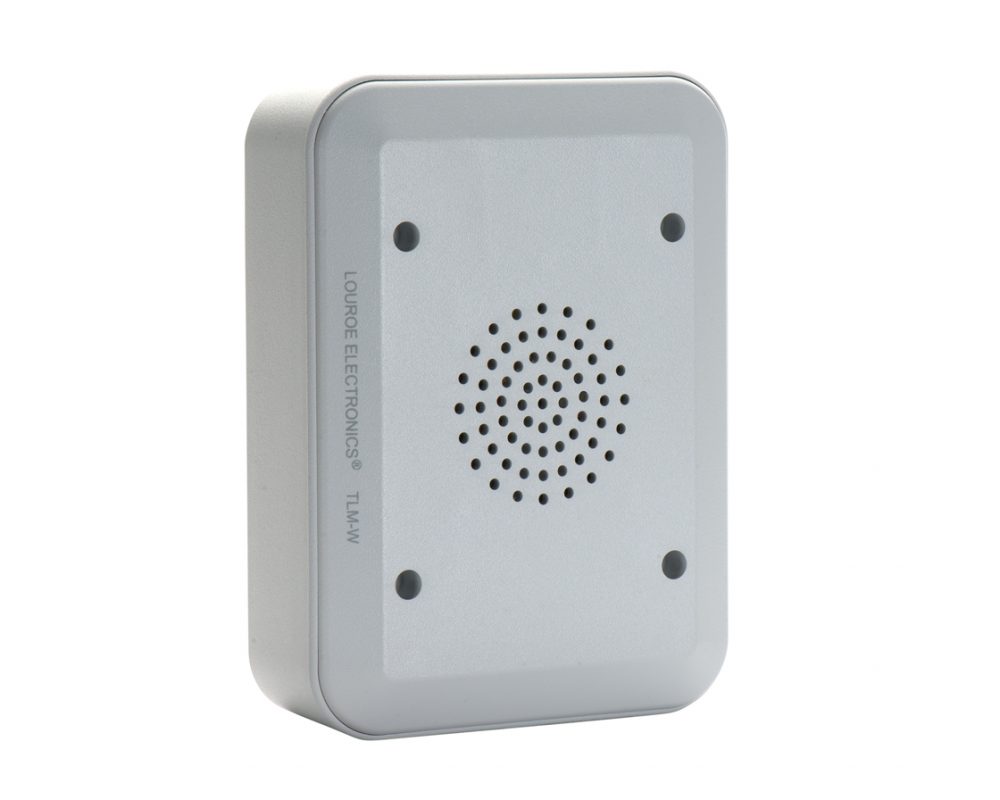

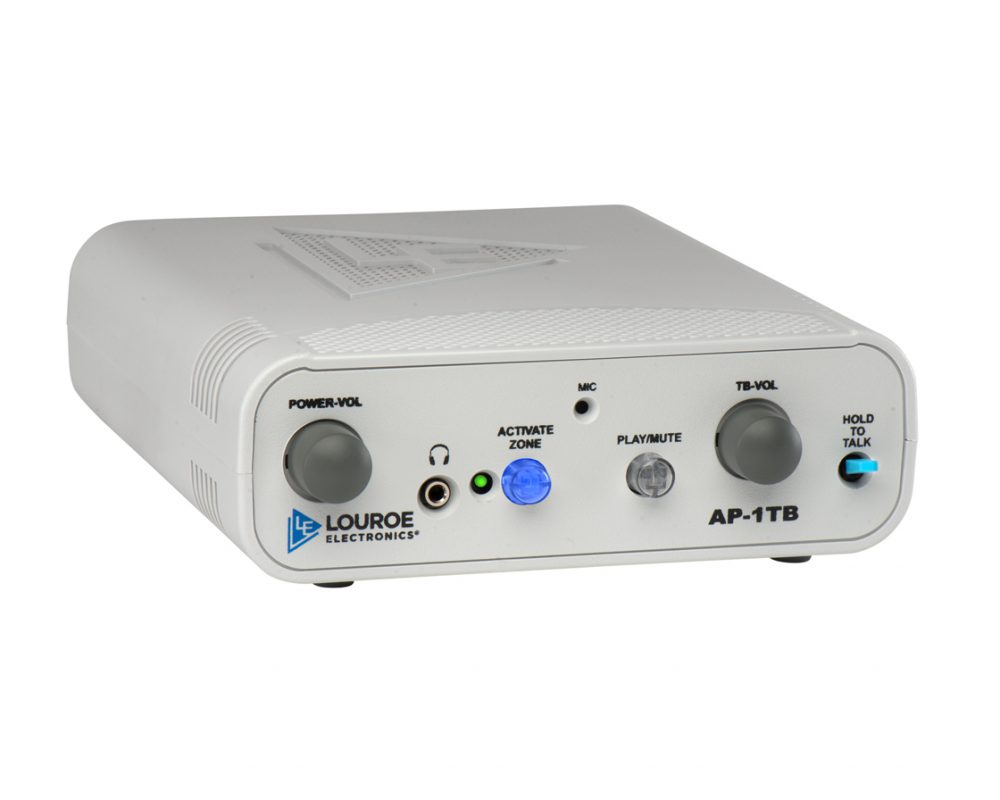

The ASK4 #501 is a single zone audio monitoring system for two-way listen/talkback communication. The remote TLMW is a wall mounted speaker/microphone that contains an onmi-directional microphone and an 2 1/2” speaker. As part of a complete system audio can be monitored by manually pressing the zone activation switch of the base station. It has input-output to a DVR/VCR for recording and playback. Contains a 3 speaker for monitoring live audio and playback from a DVR/VCR. A 12Vdc power supply is included. For two-way listen/talkback, all Louroe Speaker/Microphones (TLI, TLO, TLM, or TLSP) are compatible.

Application

• When part of a Louroe Audio System, the ASK 4 #501 can be used in situations such as:
• Sleep Disorder Labs
• Therapy Labs
• Classrooms
• Anywhere CCTV Cameras Are Installed
• Heart Catheter Labs
• Convenience Stores
• Observation Rooms
• Warehouses
• Fast Food Restaurants

Features

• Built-in 3 speaker for monitoring audio.
• Built-in amplifier for playback from DVR/VCR
• Provides two-way listen/talkback using Louroe +Speaker/Microphone.
• Built-in microphone for talkback to remote +speaker.
• 3.5 mm headphone jack for private monitoring.
• Can be desktop or rack mounted
• Mute function for muting remote station
• Illuminated zone switches
• Remote TLI-W has ABS plastic with 2 1/2” 7W speaker and microphone
