LOUROE - LE-047 - Interfaces with DVR's, IP Network Cameras, Video Servers

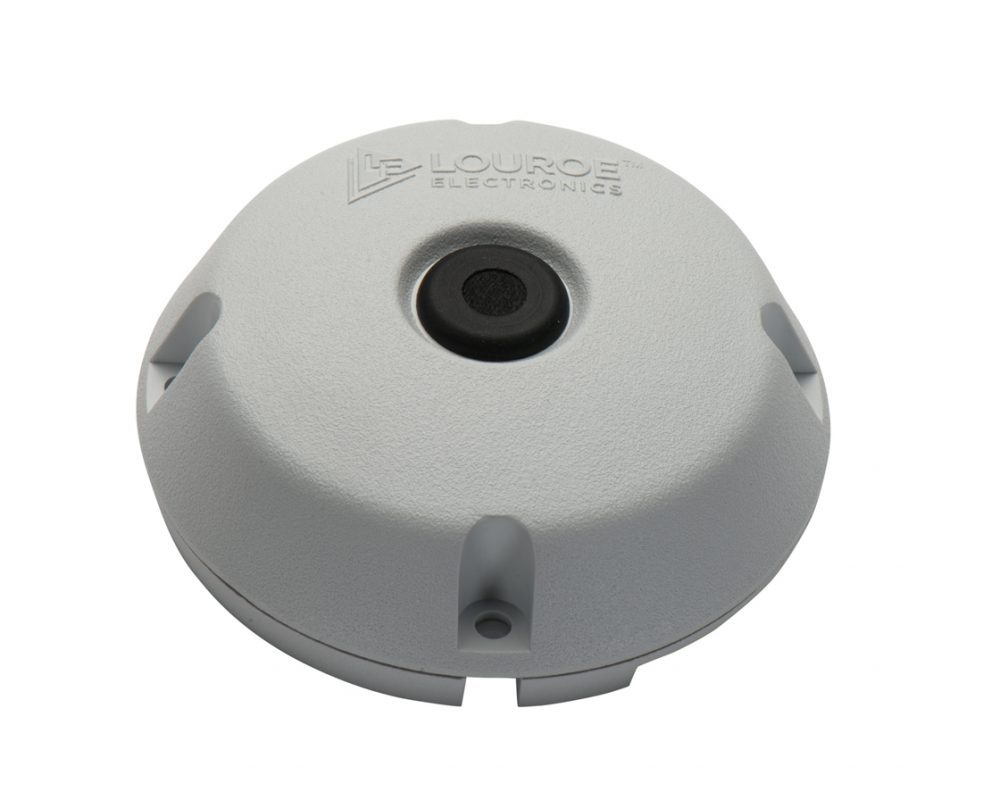

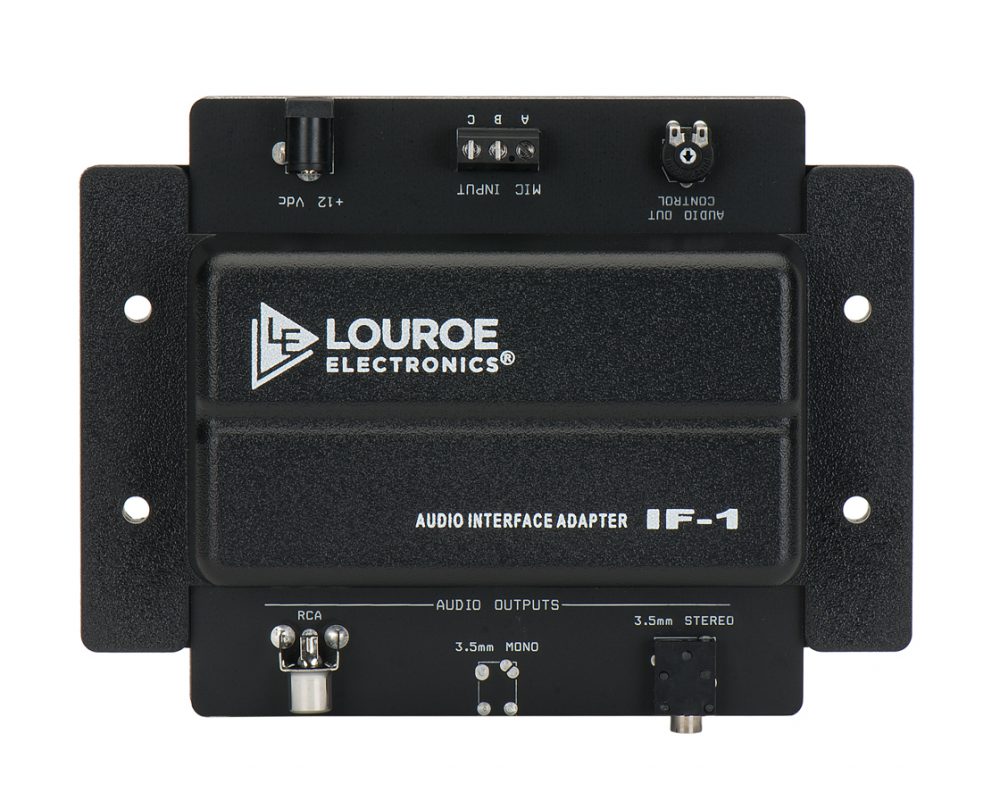

ASK-4 #300 is a single zone audio monitoring system designed for direct connection to a DVR, PC soundcard or IP Network Camera. Model IF-1 Interface Adapter (usually mounted near the recording device) receives the wiring from the Verifact A Microphone, supplies power and drives the audio signals into the DVR, IP Network Camera, Video Server or PC Soundcard. The Verifact A is an omni-dirctiona microphone that produces line level output. it can pick up normal sound approximately 15’ away all directions. Distance between the Verifact A Microphone and Model IF-1 Interface Adapter maybe up to 1000’ using recommended cable. In order to accommodate the various types of audio inputs of the audio receiving device, the IF-1 provides two different types of audio outputs:

• RCA audio output to a DVR (or other recording devices) with RCA type audio input
• 3.5mm stereo audio output to a computer soundcard, Video Server or DVR with a 3.5mm stereo jack audio input

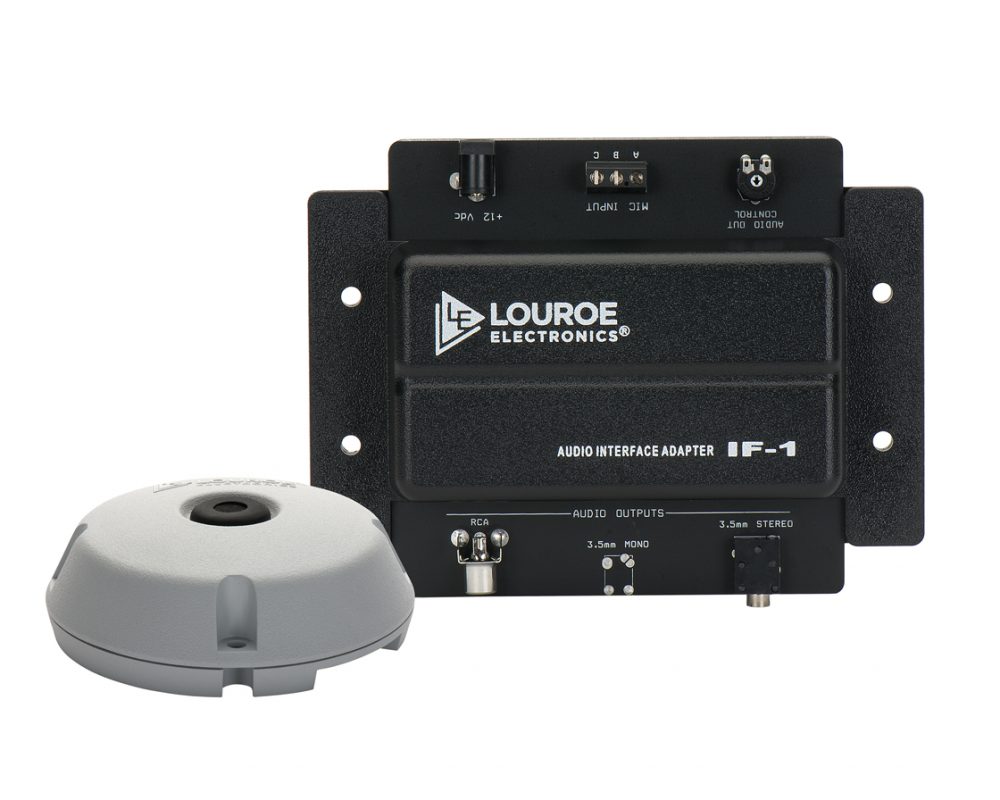

Kit Contents

• Verifact Model A Microphone
• Model IF-1 Audio Interface Adapter
• Model AD-1 12Vdc power supply
• Patch cables (RCA and 3.5mm) for connection to the audio inputs of DVR’s, IP Network Cameras, Soundcards, etc. as listed above

Application

The ASK-4 #300 can be used in situations such as:

• Convenience Stores
• Fast Food Restaurants
• Customer Service Counters
• Cashier Booths

...Anywhere that transmitting audio into a DVR, PC Soundcard, IP Network Camera is required etc.

Features

• Omni-directional microphone can pick up normal sounds 15’ away or within a 30’ diameter circle.
• Model IF-1 Audio Interface Adapter provides phantom power to the microphone.
• Contains a gain adjust to prevent overdriving of signal into a DVR, soundcard, IP Network Camera, etc.
• Two types of audio outputs to accomodate most recording devices that accept line level audio input
• 12Vdc/110V power supply included
• Connector cables from audio output of IF-1 to audio input of recording device included
