LOUROE - LE-069 - Vandal Resistant Microphone

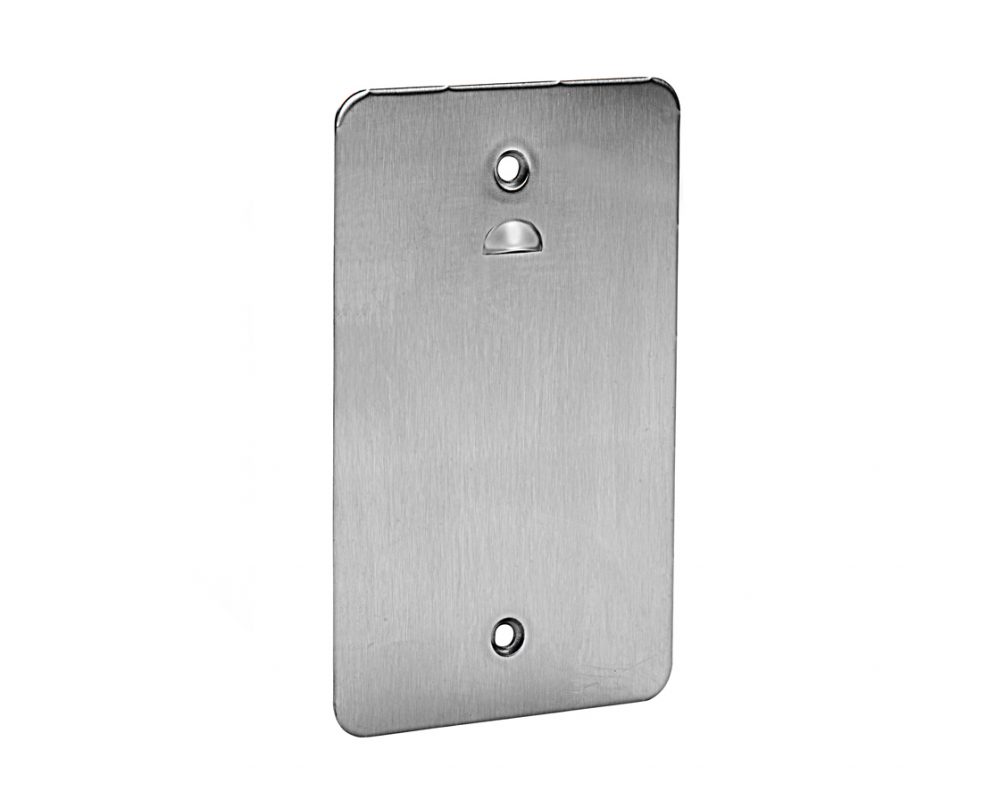

Verifact D-V is a low impedance electret condenser microphone mounted to a 16 gauge stainless steel faceplate. It fits into a single gang electrical box for flush or surface mounting and is designed for areas of high vandalism.

Application

  • Correctional Facilities
  • Public Access Areas
  • Parking Structures
  • Juvenile Detention Centers
  • Or anywhere vandalism is a concern

Features

  • High sensitivity to low sound pressure
  • Microphone can pick up normal sounds 15' away
  • 16 gauge stainless steel faceplate
  • Hooded Audio port for microphone protection
  • Recessed housing for microphone protection
  • Tamper proof mounting screws
  • May be located up to 1000' from base station
  • Powered from Louroe Base Station
  • Microphone preamp contains sensitivity switch for lowering gain
  • Fits into single gang electrical box (not included)
Part number:
LE-069
Price:
Sensitivity -45 dBV/Pa < 1 Pa = 94 dB SPL
Frequency Response 50 Hz to 15 kHz
Output Line Level (0 dBV, 600Ω @ 1kHz)
Current Drain 10mA
Supply Voltage 12 Vdc
Microphone Housing Stainless faceplate
Dimensions (Faceplate) 2 3/4” W x 4 1/2” H
Weight 4 oz
Shipping Weight 1 lb
