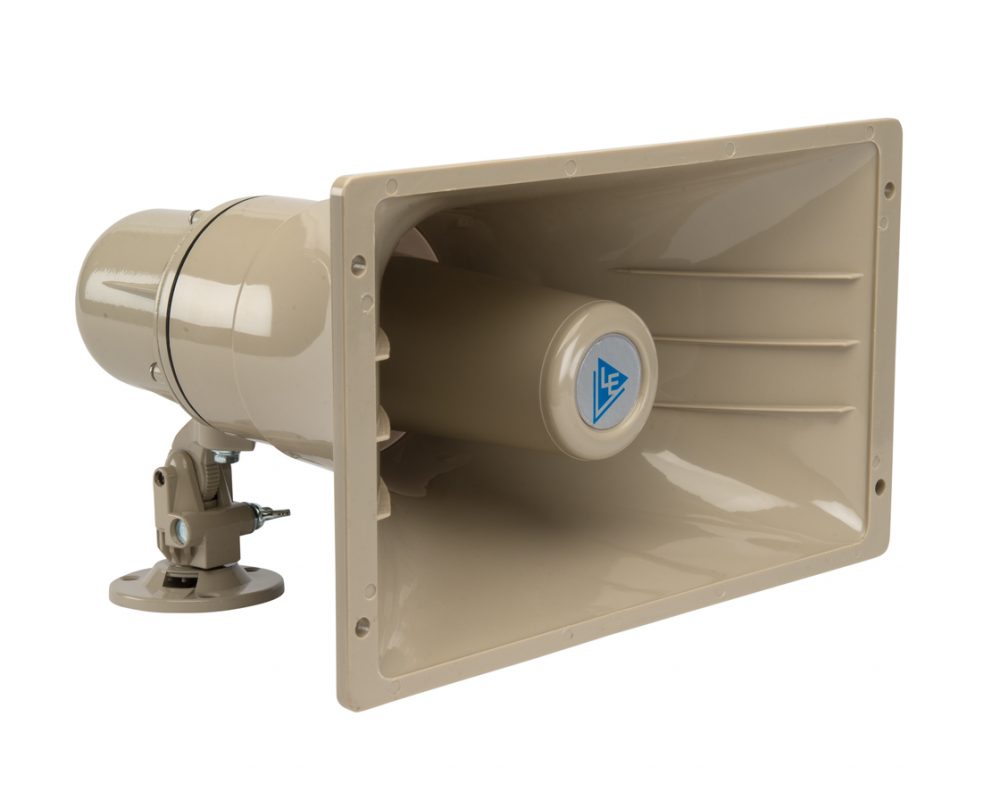

Louroe LE-084 Outdoor Bi-Directional Speaker Microphone

The TLO is a two-way speaker with microphone and re-entry horn for high volume penetration. Weatherized for outdoor use, it is a microphone and speaker within one housing. In operation, the TLO provides both listen and talkback capabilities between the remote zone and Louroe base station, or with other compatible audio receiving devices such as Louroe AOP-SP70.



Application

  • Parking Structures
  • Remote Properties
  • Building Peripherals
  • Secured Walkways
  • Gate Entry & Exits
  • Docks & Piers
  • Car Dealership Lots

Features

  • Weather resistant for outdoor use
  • Omni-directional microphone and horn speaker
  • May be used in damp, moist environment
  • May be mounted up to 1,000 ft. from Louroe Base station
  • 30W speaker
  • Mounting bracket (2 ½” dia) for vertical and horizontal positioning
Part number:
LE-084
Price:
Specifications (Microphone)
Sensitivity -45 dBV/Pa 1 Pa = 94 dB SPL
Frequency Response 50 Hz to 15 kHz
Output Line Level (0 dBV, 600W @ 1kHz)
Current Drain 10mA
Supply Voltage 12 Vdc





Specifications (Speaker)
Power rating 30W
Input 70.7V constant
Frequency response 350 Hz to 14 kHz
Sensitivity 109dB (Measured at 1m, 1W @ 1kHz)
Material Heavy Duty ABS Resin
Dimensions 11” W x 6 5/8” H x 12 3/4” D
Dispersion 105° x 72°
Weight 5 lbs 5 oz
Shipping Weight 7 lbs
Name
Description
Size
Downloads
File
Instructions
0.3mb
File
Specifications
0.3mb
