LOUROE - LE-092 - Bi-Directional Microphone/Speaker Corner Mount

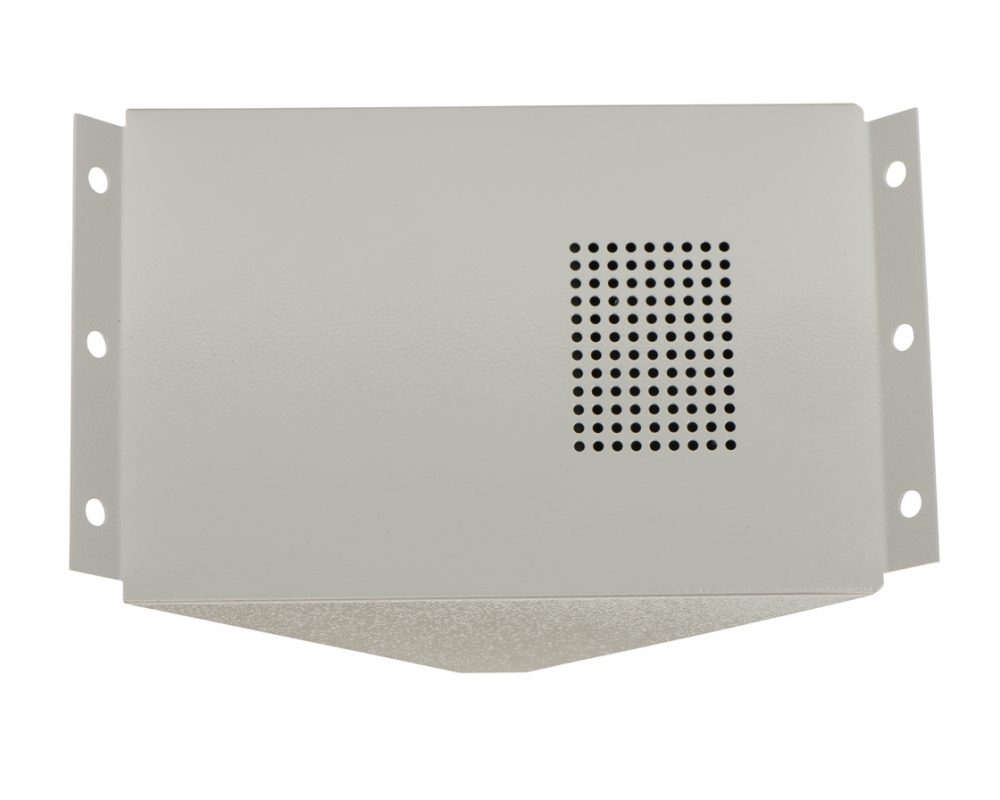

The Model TLSP Corner Mount is a two-way talk/listen speaker/microphone with built-in electret condenser microphone and a 3” speaker. Vandal resistant housing is especially designed for mounting in a corner or between wall and ceiling. When part of a Louroe Audio System, TLSP Corner Mount provides listen and talkback capabilities between the remote area and the Louroe Base Station.



Application

  • Correctional Facilities
  • Transportation Terminals
  • Juvenile Facilities
  • Public Acces Areas
  • Parking Structures
  • Areas where vandalism is a concern

Features

  • Vandal resistant 18 gauge CRS housing
  • Mounts in a corner or between wall and ceiling
  • Face dimensions: 8 ¾ x 6”
  • May be mounted up to 1,000 ft. from Louroe Base Station
  • Powered from the Louroe Base Station
  • Microphone can pick up normal sounds 15’ away or within a 30’ dia. circle
Part number:
LE-092
Price:
Specifications (Microphone)
Sensitivity -45 dBV/Pa 1 Pa = 94 dB SPL
Frequency Response 50 Hz to 15 kHz
Output Line Level (0 dBV, 600 Ohm @ 1kHz)
Current Drain 10mA
Supply Voltage 12 Vdc
Specifications (Speaker)
Power rating 7W
Input 70.7V constant
Frequency response 300 Hz to 4 kHz
Voice coil impedance 8 Ohm
Speaker size 3”
Dimensions 10” L x 6” W x 4 1/2” D
Material Steel
Weight 2 lb 13 oz
Shipping Weight 4 lbs
