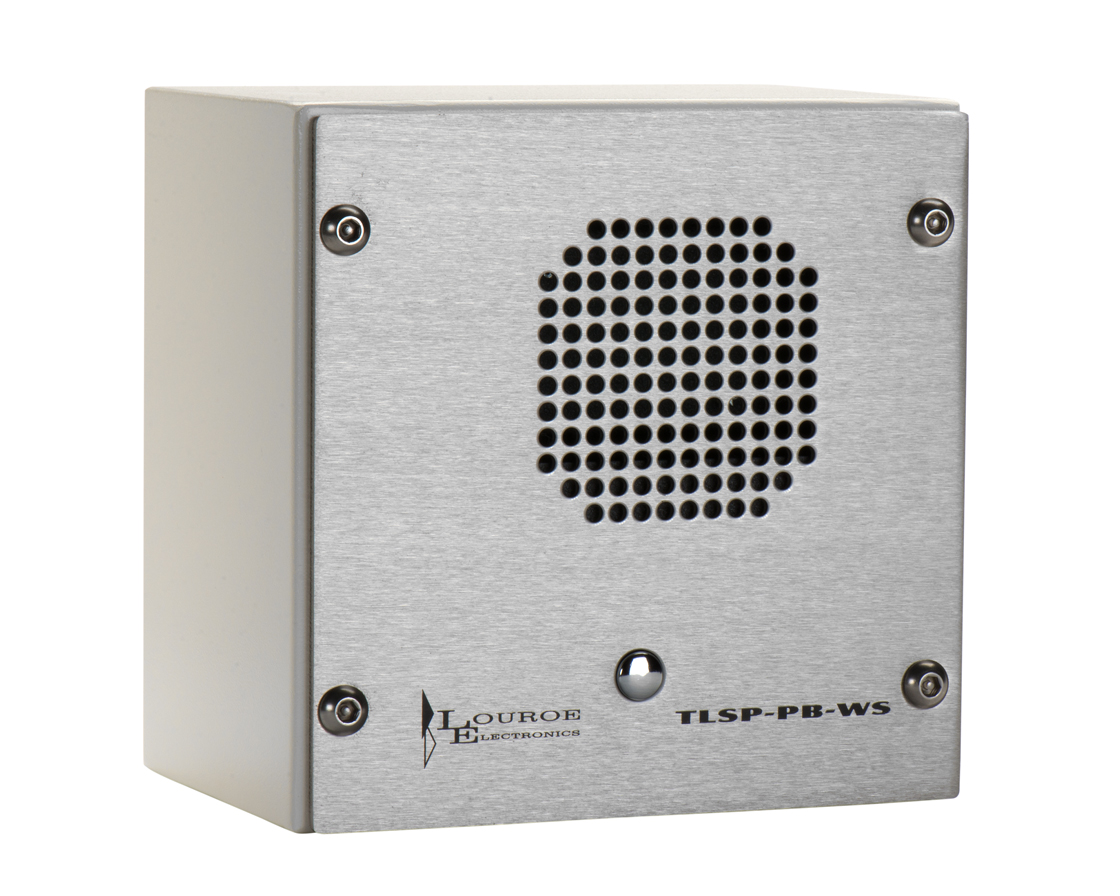

Models TLSP-PB-WF and TLSP-PB-WS are call stations designed to activate a Louroe sound activated Base Station and to provide bi-directional communications. Both the microphone and speaker are mounted in a special design tone path for protection from vandalism. The tone path is mounted to the back of an 11 gauge stainless steel face plate. A vandal resistant flush mount call button is used for activating the Louroe sound activated Base Station (DG series). The call station may be mounted up to 1000’ from the Base Station. A 6”H x 6”W x 4”D backbox is included.
NOTE: Models TLSP-PB-WF and TLSP-PB-WS are compatible only with Louroe ModelS DG-12II, and DG-25III alarming audio Base Stations.
Application
....Or any area where vandalism is a concern
Features
| Output of microphone (Mic) | Line Level (0 dB, 600W @ 1KW) |
| Frequency Response (Mic) | 40 Hz to 15 kHz |
| Current Drain (mic) | 10 mA |
| Speaker | 3”, 2W w/ 70V transformer |
| Faceplate (TLSP-PB-WS) | 6”L x 6”W Vandal Resistant |
| Faceplate (TLSP-PB-WF) | 7”L x 7”W Stainless Steel |
| Backbox | 6”H x 6”W x 4”D |
| Weight | 4 lbs |
| Shipping Weight | 7 lbs |
