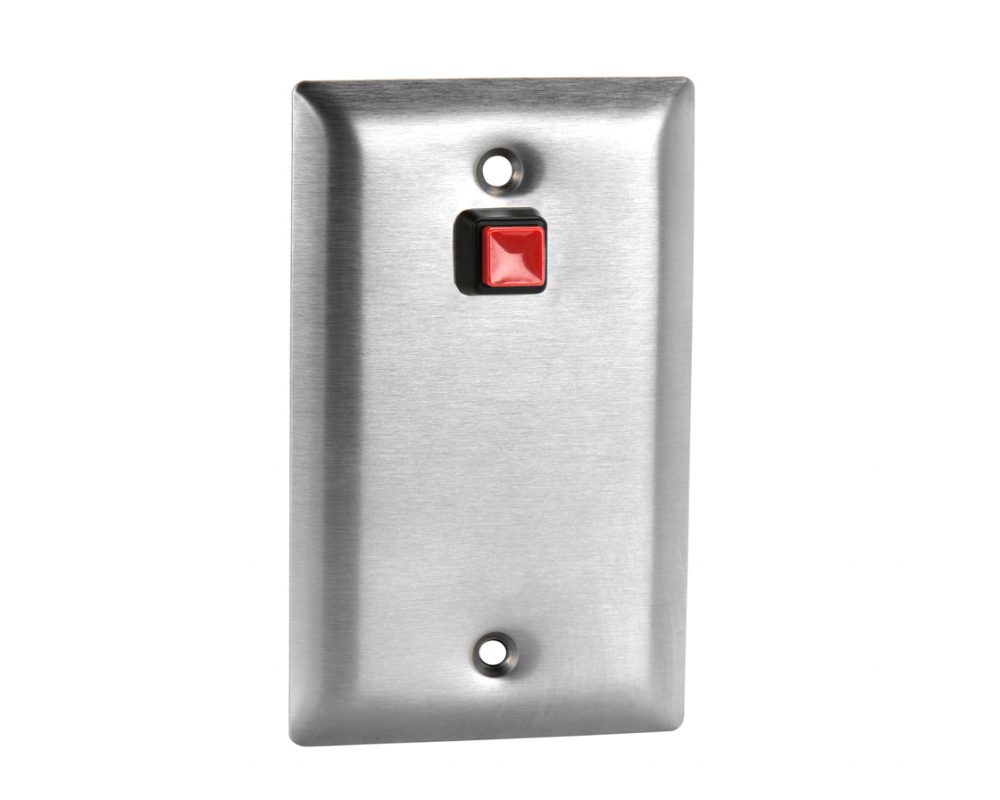

Louroe LE-100 Call Station With Pushbutton

DCS is a call station with a push button for flush or surface mounting. Contains a 3 kHz oscillator to trigger the Louroe ALA and DG Series Base Stations. Base station can be activated either by pushing the call button (containing a 3 kHz oscillator) or by sound that exceeds the threshold level set at the base station

When panic button is pressed, the DCS sends a 3kHz signal that alarms the Louroe sound activated base station. A lighted LED on the base station identifies the zone in alarm. Model DCS is compatible only with the DG-12II and DG25III.

Model DCS can be connected directly to the above base stations or tied in with a Louroe Microphone (or speaker/microphone) for providing one-way listen or two-way talk/listen with the base station.

This type of audio system can be used in applications such as:

Features

• Pushbutton activation
• May be tied in with a Louroe Microphone (or Speaker/Microphone) for communications +with the Louroe Base Station
• Fits in a standard single gang electrical box +for flush or surface mounting
• Interface with DG-12/25 series alarming base stations
• Call station with a push button
• Stainless steel single gang face plate
• Fits into a standard single gang housing

Application

• parking structures
• stairwells
• elevator lobbies
• elevator cabs
• secured entrances
• detention centers
