LOUROE - LE-110 - 2 Microphone Audio Mixer

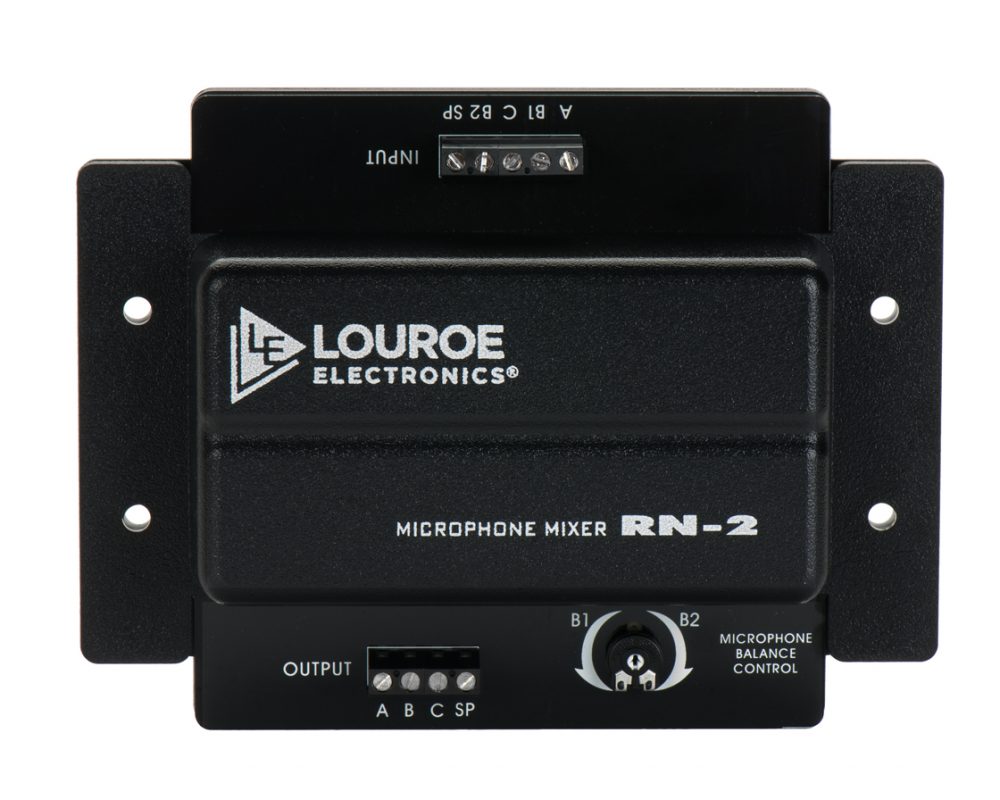

Model RN-2 is an audio mixer used for combining two Louroe microphones or speaker/microphones for the purpose of expanding the area to be audio monitored. It has an input side (terminal block) for accepting the two microphones and an output side (terminal block) for home running back to a Louroe audio base station or to other audio receiving devices. The unit contains a potentiometer for microphone balance control. The RN-2 receives phantom power from the Louroe base station

Special Note: The RN-2 is strictly a microphone mixer that combines the audio signals picked up by the two microphones. It does not function as a two-channel audio base station

MICROPHONES ONLY

Wiring Requirements

2 Conductor shielded cable, 22 gauge with a 24 gauge drain wire

NOTE: Unshielded cable is not satisfactory for audio systems

SPEAKER/MICROPHONES ONLY

Wiring Requirements

4 Conductor consisting of:

• 2 Conductor shielded, 20 gauge with 22 gauge drain (microphone +connection)
• 2 Conductor unshielded, 18 gauge (speaker connection)

All in the same jacket

Features

• Allows for zone expansion by combining two +microphones or two speaker/microphones
• Powered from the Louroe Base Station
• Potentiometer for adjusting microphone balance
• Mounting holes for securing to wall or flat surface
