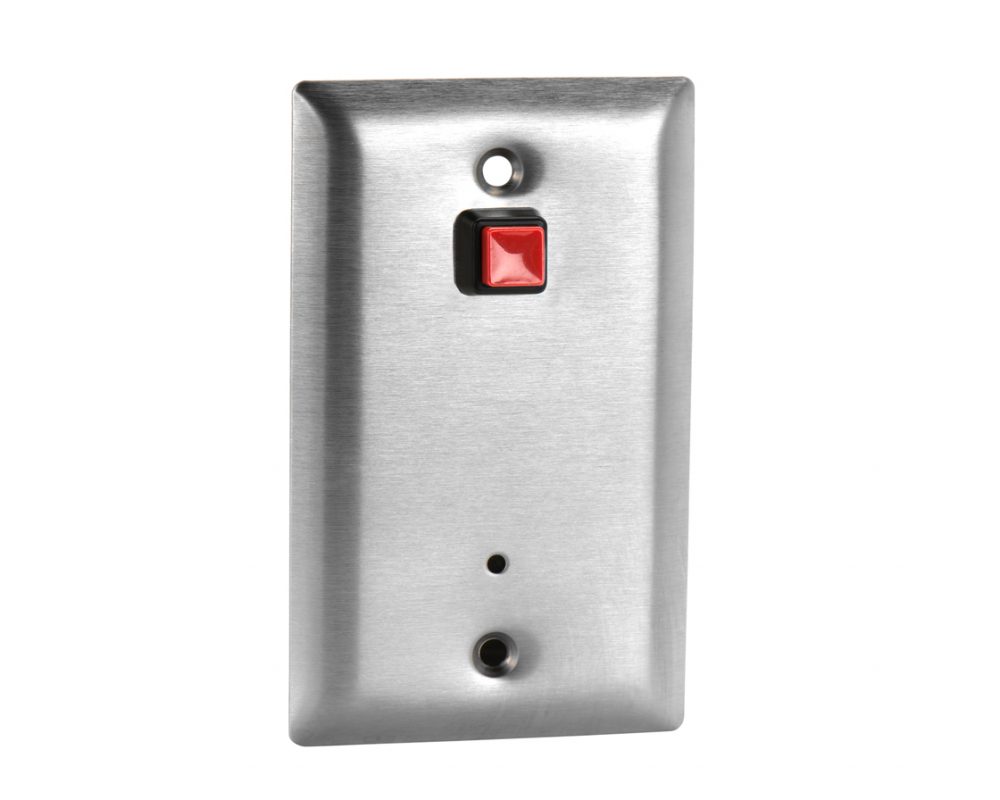

Louroe LE-119 Call Station With Pushbutton And Built-In Microphone

The Model DCS-1 is a duress call station with a built-in panic button, 3kH oscillator and electret condenser microphone. They are mounted to a stainless steel faceplate that fits into a single gang electrical box (not supplied). As part of an audio duress system, Model DCS-1 can activate the Louroe Base Station when the panic button is pressed, or by sound activation picked up by the microphone. Unit is compatible only with Louroe Models DG-12II and DG-25III Alarming Base Stations. When the alarming base station is activated, personnel can monitor the immediate area around the DCS-1 location.

Application

• Parking Structures
• Stairwells
• Elevator Lobbies
• Secured Walkways
• Elevators
• Detention Centers

Features

• Contains both a 3kHz oscillator and a +microphone to trigger base station
• 3kHz oscillator for pushbutton activation
• Stainless steel faceplate
• Fits in a standard single gang electrical box for flush or surface mounting
• Call station with a pushbutton and microphone
• Omni-directional microphone, within 30′ diameter
• Line Level Output (0dBV) from Microphone
