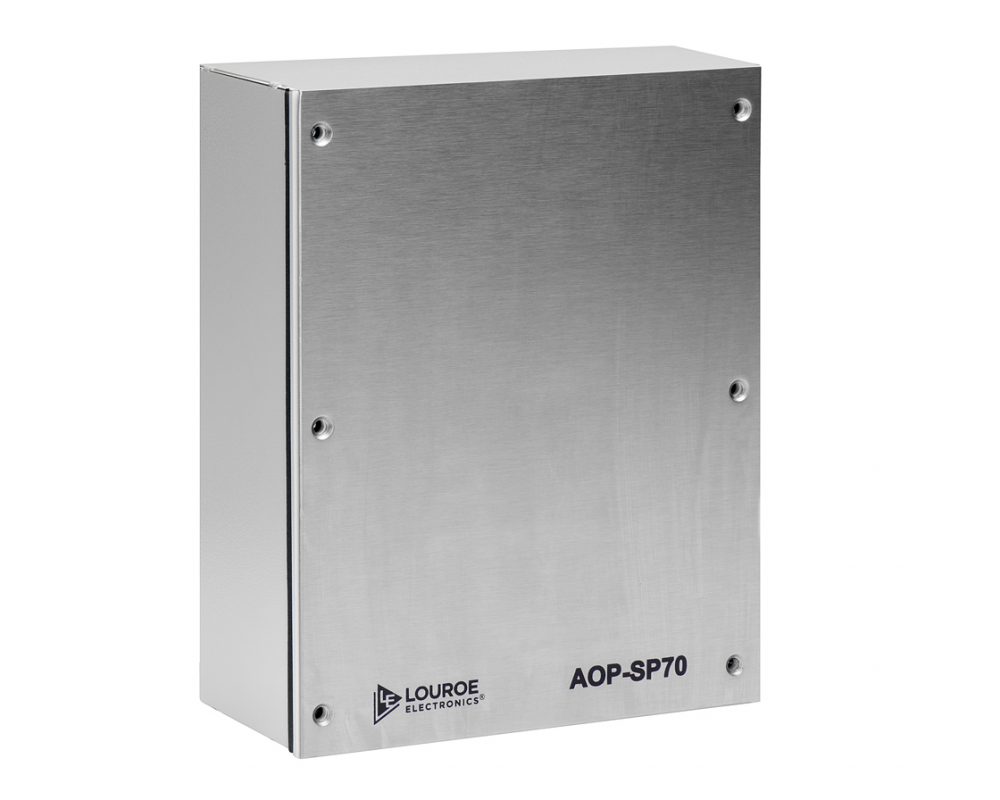

Louroe LE-129 Speakerphone Conversion Unit

For video transmission systems requiring two-way audio over the network, the Louroe AOP-SP Series of speakerphones are ordinarily utilized for providing bidirectional audio. However, they are not designed for outdoor or high vandalism applications. To accommodate these applications, the AOP-SP70 conversion unit was developed to make Louroe Model TLO outdoor Speaker/Microphone compatible with DVR’s, IP Network Cameras, Video Servers, etc.

Along with converting the audio signals for compatibility with IP Camera, DVR, etc., the AOP-SP70 also:

• Provides power to the Louroe TLO unit
• Drives the audio signals into the audio input of DVR, etc
• Amplifies the audio talkbalk received from the “speaker out” of the DVR, etc. for broadcast through the TLO speaker
• Contains level controls for microphone input and speaker output
• Built-in 12Vdc power jack
• A 120Vac/12Vdc power supply is included

Application

• Model AOP-SP70 is a conversion unit used only for interfacing with Louroe Speaker/Microphone Model TLO (outdoor type) with :
• DVR’s
• IP Network Cameras
• PC Soundcards and soundcard modules
• Video Servers

Features

• Contains audio inputs (terminal blocks) for microphone and speaker connection from Louroe Model TLO
• Sends power to speaker/microphone (TLO)
• Drives audio signals into DVR, IP Network Cameras, etc.
• Amplifies talkback from receiving device for broadcast through TLO Speaker
• Contains level controls for listen and talkback
• Contains built-in 12Vdc power jack
• 12Vdc power supply included
