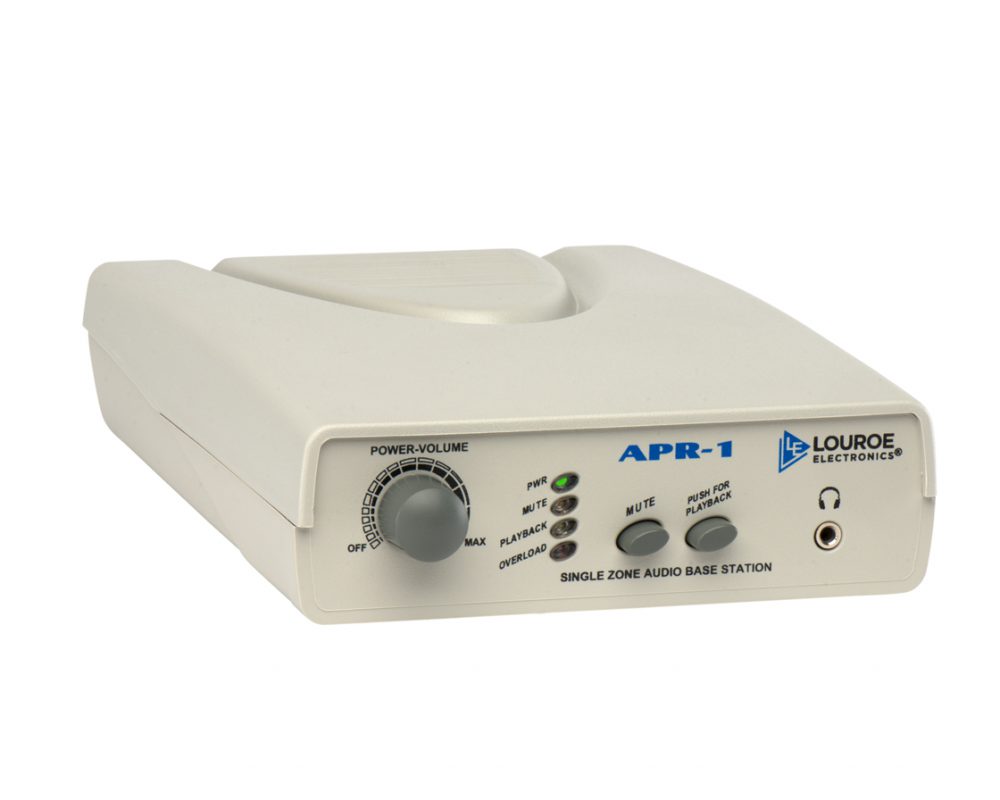

LOUROE - LE-146 - Single Zone Audio Monitoring Base Station

Model APR-1 is a single zone non-alarming audio base station. As a system, (with a LOUROE Microphone) it provides one-way live audio with a 3” built-in speaker. Unit contains input/out jacks for connecting to a DVR/VCR for recording and audio playback. The APR-1 has special filtering to enhance audio playback from a 24 hour time lapse recorder. Other features include adjustable volume control and 3.5mm headphone jack. All LOUROE Microphones (Models A, B, C, D, D-V, E, K and L-DT) are compatible with the APR-1



Application

  • As part of a Louroe Audio Monitoring System, the Model APR-1 Base Station can be used in situations such as:
  • Convenience Stores
  • Police Interview
  • Rooms
  • Booking Rooms
  • Fast Food Restaurants
  • Casino Soft Count
  • Rooms
  • Speech Therapy Labs
  • Anywhere CCTV Cameras Are Installed
  • Dual RCA cable
  • AD-1 Power supply

Features

  • Built-in 3 speaker for monitoring live audio Audio input/output jacks for recording and playback from a DVR/VCR
  • Easy DVR/VCR in/out connection
  • 3.5 mm headphone jack for private monitoring
  • Desktop model
  • Mute switch for muting microphone audio
  • 12 Vdc power transformer included
  • 19” Rack Mount Kit available, request RM-1935/APR-1 Rack Mount Kit
Part number:
LE-146
Price:
Monitor output power 1W@8ohm
Audio output impedance 600W @ 1kHz
Audio input impedance 10Kohm
Freq. response 100 Hz to 10 kHz
Headphone impedance 8 to 600 ohm
Power supply 12 Vdc, 500 mA
Dimensions 8 ¼"L x 5 ¾”W x 1 3/8" H
Weight 1 lb 6 oz
Shipping Weight 3 lbs
Name
Description
Size
Downloads
File
Instructions
0.5mb
File
Specifications
0.4mb
