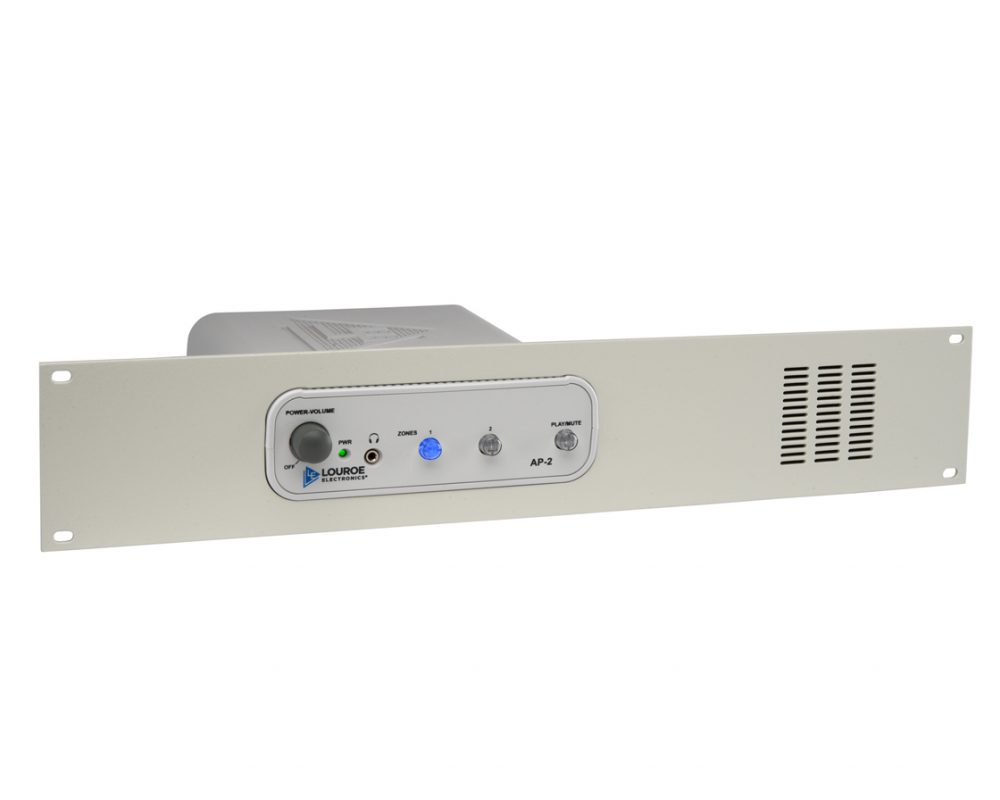

LOUROE - LE-147 - 2 Zone Audio Monitoring Base Station, Rack Mounted

The AP-2-RM is a rack mounted two- zone audio base station designed to interface with a DVR, VCR or other recording devices that accept line level input. The AP-2-RM Audio Base Station contains a built-in 3” speaker and volume control for producing live audio and audio playback. Has mute switch to mute audio from being heard at the speaker

Contents

AP-2-RM Audio Base Station (Rack Mounted

AD-1 Listed AC ADAPTER

Dual RCA Cable

Application

The AP-2-RM is designed for numerous applications such as:

• Convenience Stores
• Fast Food Restaurants
• Booking Rooms
• Interrogation Rooms
• Car dealership sales contract rooms
• Child Abuse Interviews
• Sleep Disorder Centers
• Speech Therapy Labs
• Cashier Booths
• Casino use in:
  • soft count rooms
  • detention centers
  • medical treatment rooms
  • cash cages

Features

• Audio output (RCA) to DVR, VCR
• 3" speaker for monitoring live audio and playback from a DVR or VCR
• 3.5 mm headphone jack for private listening
• Mute switch to mute audio from being heard at the speaker
• Overload LED to indicate short in wiring connections
• 2 Line level microphone outputs
