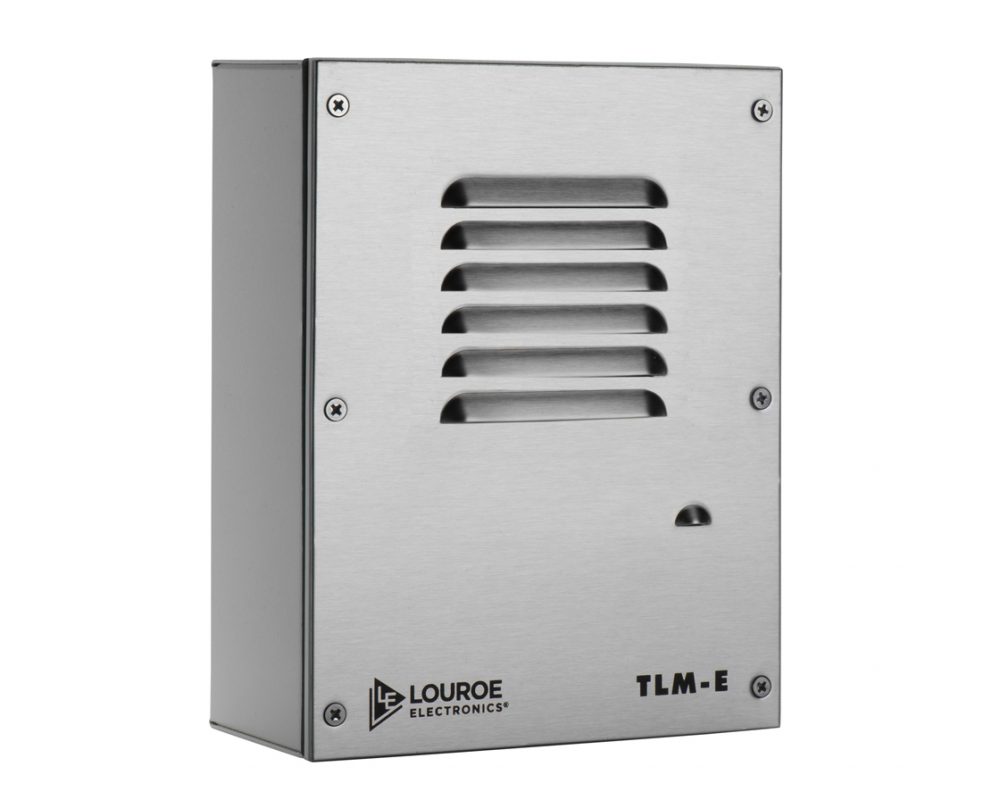

Models TLM-E is a two-way speaker/microphone with an electret condenser microphone and 4” speaker, all within one housing. As part of a Louroe audio system, It provides two-way communication between the remote area and the audio receiving device (Louroe Base Station, etc). Provided with the unit are plastic back box for flush mounting to a wall and metal back box for surface mounting. Can be used for outdoor applications. This unit is weather resistant.
Application
Features
| Output of microphone (Mic) | Line Level (0 dB, 600 Ohm @ 1KW) |
| Frequency Response (Mic) | 40 Hz to 15 kHz |
| Current Drain (mic) | 10 mA |
| Speaker | 4”, 7W w/ 70V transformer |
| Faceplate | 8” H x 6 1/4” W |
| Backbox | 8” H x 6 1/4” W x 2 3/4” D |
| Weight | 1 lb 6 oz |
| Shipping Weight | 6 lbs |
