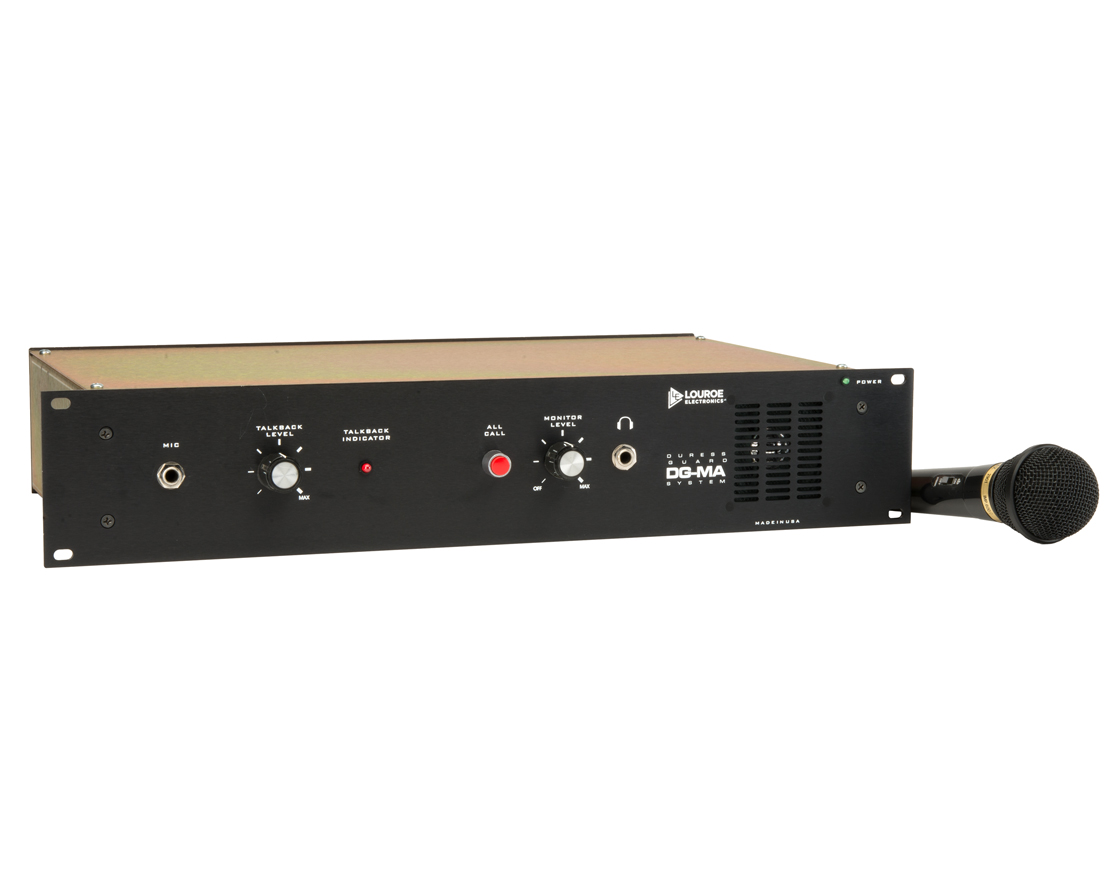

Louroe LE-175 Monitor/Talkback Amplifier

The DG-MA Monitor/Talkback Amplifier is a companion to Model DG-12II and DG-25III Alarming Base Stations. It provides two-way listen/talkback communications between the base station and the remote speaker/microphones in the audio system. "All Call" feature allows security personnel to address all zones simultaneously. One DG-MA will support up to 10 DG-25III Base Stations for a total of 250 zones. For audio systems larger than 25 zones, an external amplifier is recommended. This will boost "All Call" capabilities. A hand-held microphone for talkback and "All Call" is provided. The DG-MA is standard 19" rack mountable.

Application

As part of the alarming audio monitoring system, the DG-MA provides bi-directional communications with the remote speaker/microphone that are monitoring:

• Stairwells
• Elevator Cabs and Lobbies
• Public Access Buildings
• Parking Structures
• Juvenile Detention Centers

Features

• 3 Speaker for monitoring audio
• 1W monitor amplifier with volume control
• Headphone jack for private listening
• Hand-held microphone for talkback (provided)
• "All Call" switch to page all zones simultaneously. (25 zones max without external amplifier)
• 20W output, 70V line
• LED indicator when talkback circuit is in use
• Input/output jacks for connection to VCR
• Input to accommodate up to 10 cascaded DG-25III Base Stations
