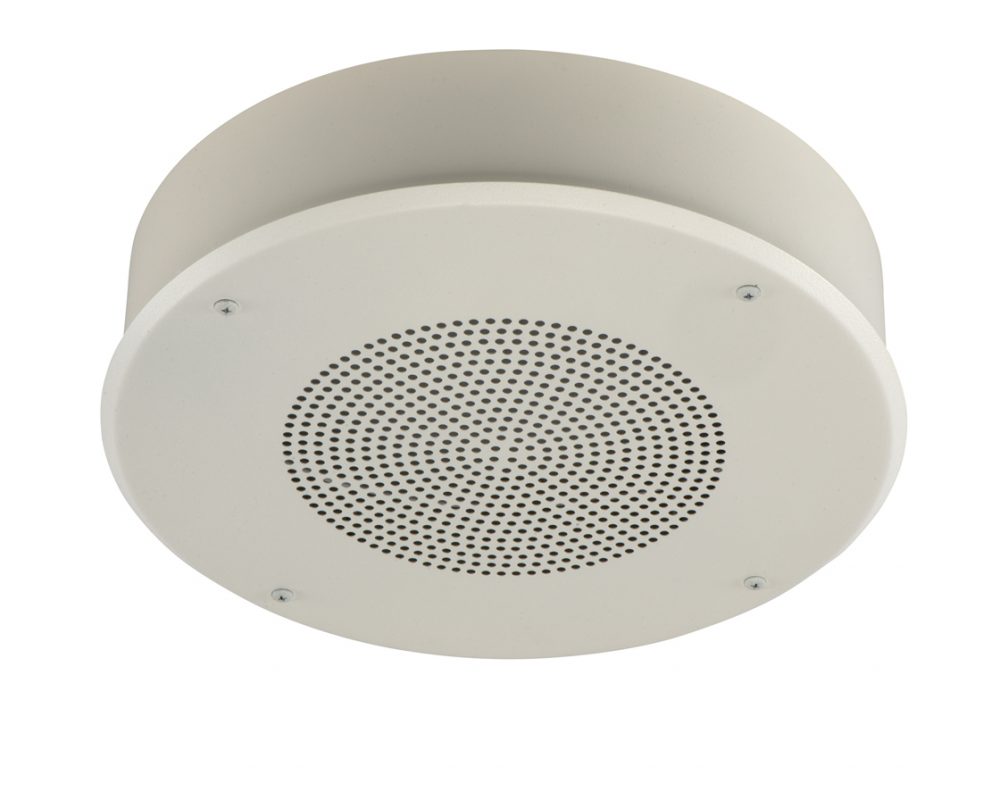

LOUROE - LE-216 - Bi-Directional Microphone With Ceiling Flush Speaker Grill Plate / Vandal Resistant

The Model TLI Series of speaker/microphones are two-way talk/listen remote stations consisting of an electret condenser microphone with pre-amp for line level output and 8” speaker. As a system, the TLI Series provide both listen and talkback capabilities between the remote zone and the Louroe base station. There are five configurations in which Model TLI can be installed:

Using VRSC Housing for surface mounting to a wall or ceiling (industrial application) Model TLI-VR-SQ Surface mount vandal resistant

Using ERD-8 Backbox and BR-8WS/BR-8VP Grill Model TLI-CF (BR-8WS) and TLI-VR-F (BR-8VP Vandal Resistant Grill)

Using MR-8 Mounting Ring and BR-8WS Grill for surface mounting on a ceiling Model TLI-CS.

No housing Model TLI (Speaker and Microphone only)

Application

In operation, the TLI Series of speaker/microphones provide hands-free LISTEN and TALKBACK capabilities with the LOUROE Base Station:

• Hospital Therapy Labs
• Cardio Cath Labs
• Lobby Entrances
• Observation Rooms
• Corporate Training Sessions
• Municipal Buildings

Features

• Omni-directional microphone and 8" speaker
• May be installed up to 1000’ from the Louroe Base Station
• Highly sensitive microphone
• Moisture resistant resin impregnated cloth speaker cone
• Microphone pre-amp contains a sensitivity switch for lowering gain
