LOUROE - LE-217 - 4 Microphone Audio Mixers

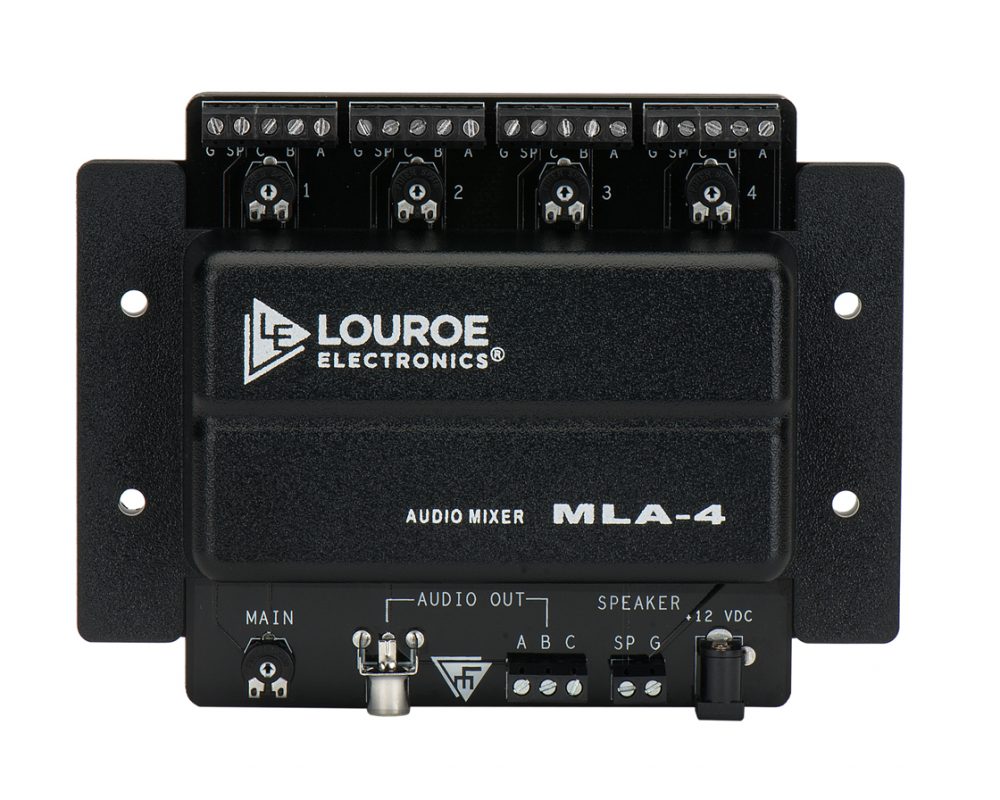

Model MLA-4 is 4 zone audio mixer used for combining four Louroe microphones or speaker/microphones for the purpose of expanding the area to be audio monitored. It has an input side (terminal block) for accepting the four microphones and an output side (terminal block) for home running back to a Louroe audio base station or to other audio receiving devices. The unit contains potentiometers for adjusting the audio output from each zone and a main potentiometer for adjusting the combined outputs of all the microphones. The MLA-4 receives power from the Louroe base station or external power supply.

Special Note: The MLA-4 is strictly a microphone mixer that combines the audio signals picked up by the four microphones. It does not function as a two-channel audio base station.

MICROPHONES ONLY

Wiring Requirements

2 Conductor shielded cable, 22 gauge with a 24 gauge drain wire

NOTE: Unshielded cable is not satisfactory for audio systems

SPEAKER/MICROPHONES ONLY

Wiring Requirements

4 Conductor consisting of:

• 2 Conductor shielded, 20 gauge with 22 gauge drain (microphone +connection)
• 2 Conductor unshielded, 18 gauge (speaker connection)

All in the same jacket

Features

• Allows for zone expansion by combining four +microphones or two speaker/microphones
• Powered from the Louroe Base Station or ext power
• Potentiometers for adjusting microphone outputs
• Mounting holes for securing to wall or flat surface
