LOUROE - LE-224 - 4 Zone Distribution Amplifier

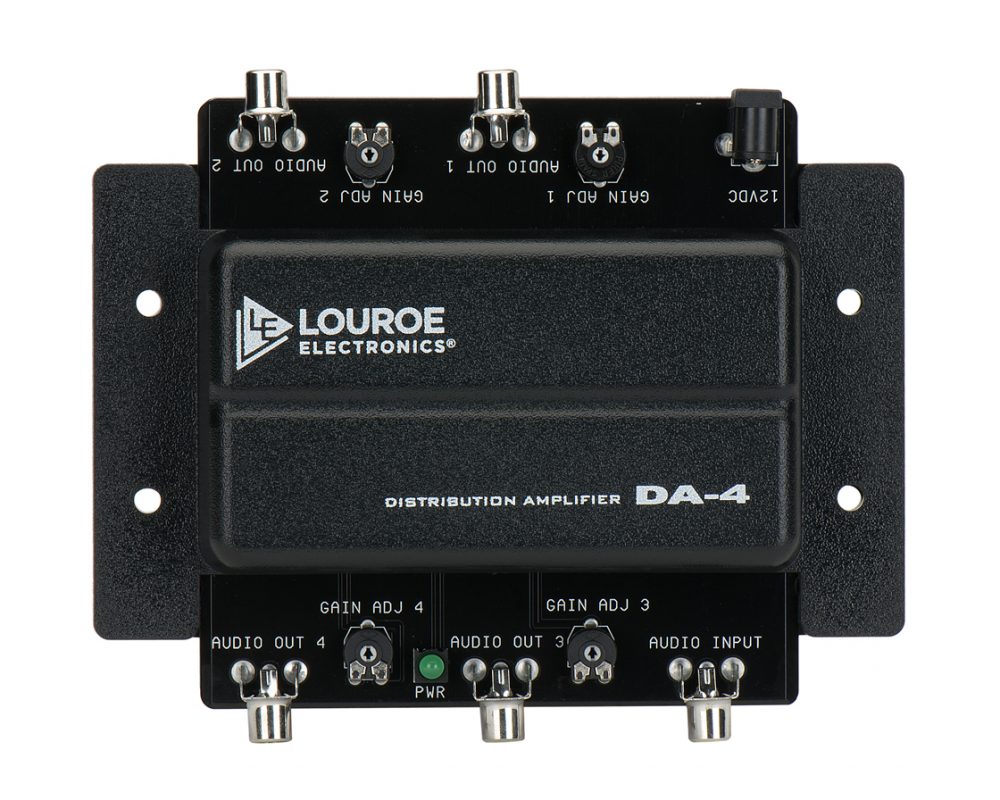

The Model DA-4 is an Audio Distribution Amplifier with one audio input and four audio outputs. It receives line level audio signals from a Louroe base station or Louroe microphone and distributes it to up to four devices such as DVR’s, VCR’s, CCTV monitors with amplifiers or other audio devices that accept line level input. Each output of the DA4 has a gain adjust potentiometer for correcting audio level. Maximum gain is 15dB when potentiometer is fully engaged. Included with the DA-4 are five RCA connector cables and a 12Vdc power supply

Application

• For distributing audio to multiple (up to four):
• DVR’s
• VCR’s
• CCTV monitors with an amplifier

or any combination of the above including other audio receiving devices that accept line level input

Features

• One audio input and four audio outputs (RCA)
• Power jack for applying 12Vdc power 120V/12Vdc power supply included
• Gain adjust for each audio output
• LED power indicator
