LOUROE - LE-328 - Audio Interface Adapter

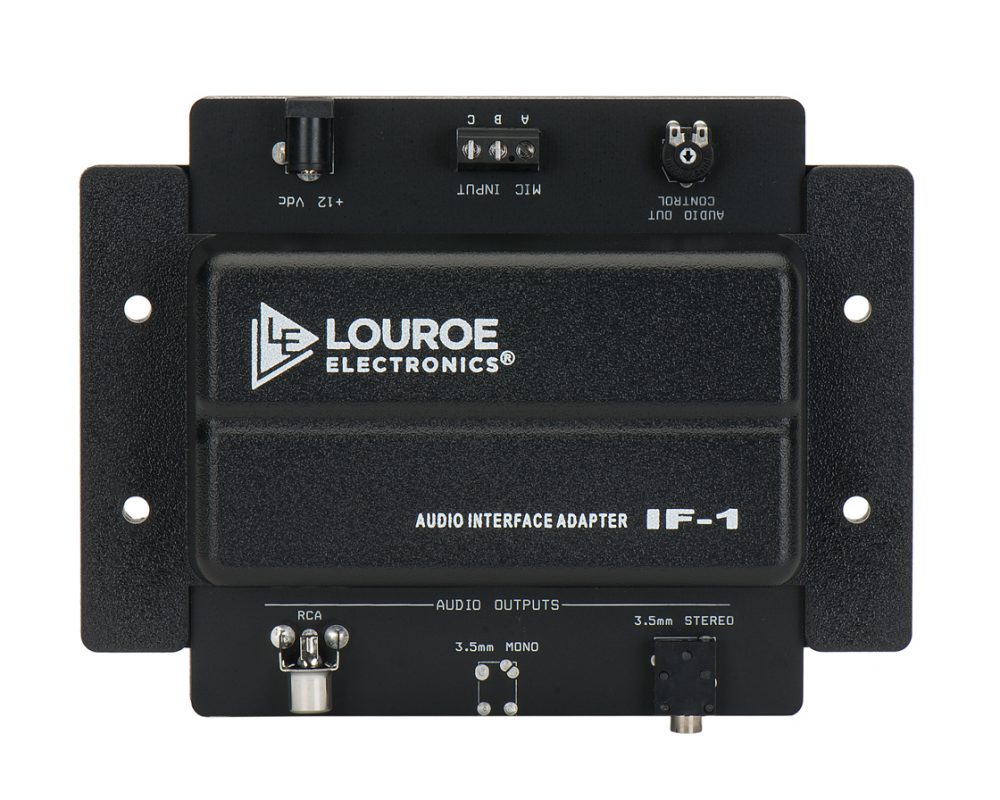

The IF-1 Audio Interface Adapter serves as an interconnection device between a Louroe line level microphone and a DVR/VCR, computer sound card, or IP network cameras with audio and video servers with audio. Input side contains a terminal block to receive wiring from the microphone and a jack for 12Vdc power input. The output side contains two types of connections to accommodate almost all recording device audio inputs:

An RCA output for connection to a DVR/VCR with an < RCA input

A 3.5mm (minijack) stereo output for connection to a computer soundcard or DVR with a 3.5mm stereo audio input

The IF-1 also has a variable gain adjust to prevent overdriving of the audio signal. A 12VDC power is included for providing power to the microphone. All Louroe Verifact (Line Level) microphones are compatible with Model IF-1. Connector cables for output of IF-1 to input of recording device are also included.

Application

When part of a Louroe Audio Monitoring System, the < IF-1 Interface Adapter is used to:

• Interface a microphone to a compatible DVR/VCR or IP < Camera
• Interface a microphone to a computer sound card or to other recording devices that accept line level input.

Features

• Interfaces Louroe Verifact Microphone to audio < recording device
• Provides power to the microphone
• RCA and 3.5mm outputs, wires included
• Variable volume control
• 12 Vdc power supply included
• Compatible with all Louroe Verifact Microphones

Wiring Requirements

Between Louroe Microphone and IF-1:

2 Conductor shielded cable, 22 gauge with a 24 gauge drain wire.

Between IF-1 and the recording device:

Utilize appropriate cable provided based on your application:

• RCA cable, Example: DVR/VCR
• 3.5mm stereo cable, Example: Computer Sound card
• RCA to 3.5mm mono cable, Example: DVR/VCR, IP Camera
