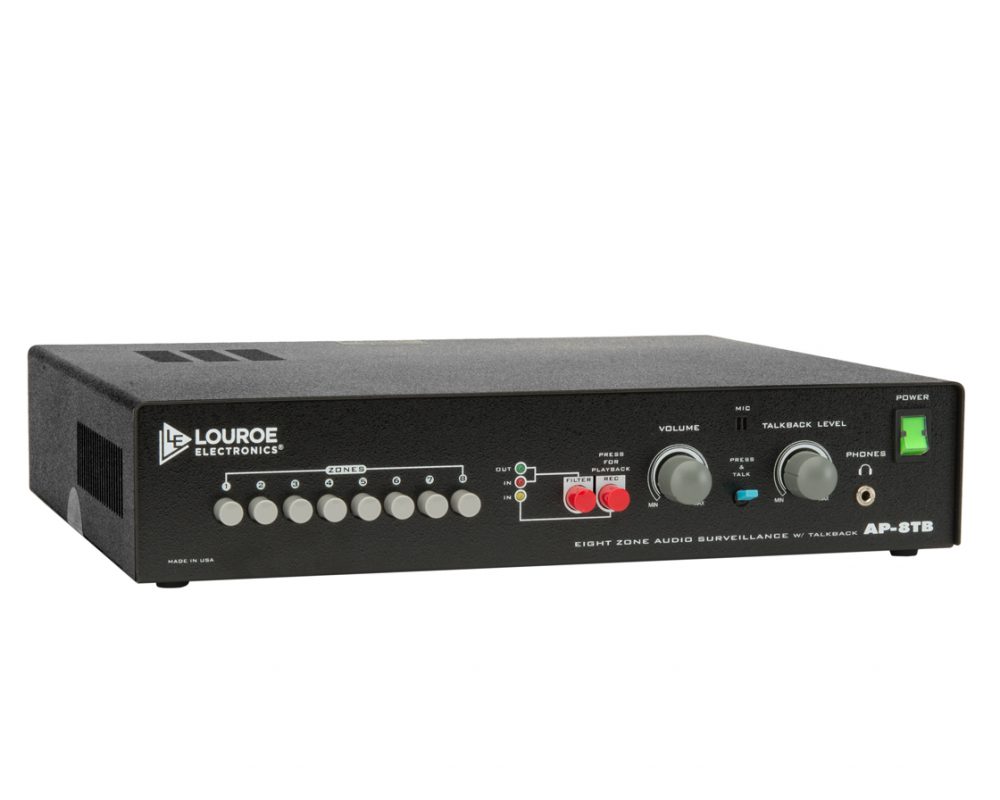

AP-8TB-RM is a eight zone non-alarming audio monitoring rack mounted base station with listen and talkback. As a system (with Louroe speaker/microphones), it provides live audio monitoring from eight zones, one at a time, with a built-in speaker and a built-in microphone for talkback to the remote area. Zone selection is by push button. Model AP-8TB is designed to interface with a CCTV or DVR. Special filtering enhances the sound quality of audio during playback. Non-rackmount model: AP8-TB
| Input sensitivity (talk back microphone) | 45dB |
| Monitor power output | 1W @ 8 Ohm |
| Talkback power output | 1.5W into 70V line |
| Audio output impedance | 600 Ohm |
| Audio input impedance | 10k Ohm |
| Audio frequency response (flat) | 100 Hz to 10kHz |
| Audio frequency response (enhanced) | -20 dB @ 200 Hz to +8dB @3 kHz |
| Headphone impedance | 8 to 600 Ohm |
| Power input | 120 Vac, 60Hz |
| Fuse | ¼ A slow-blow |
| Dimensions | 10¼"L x 12½"W x 2 ½”H |
| Weight | 9 lbs 14 oz |
| Shipping Weight | 14 lbs |
