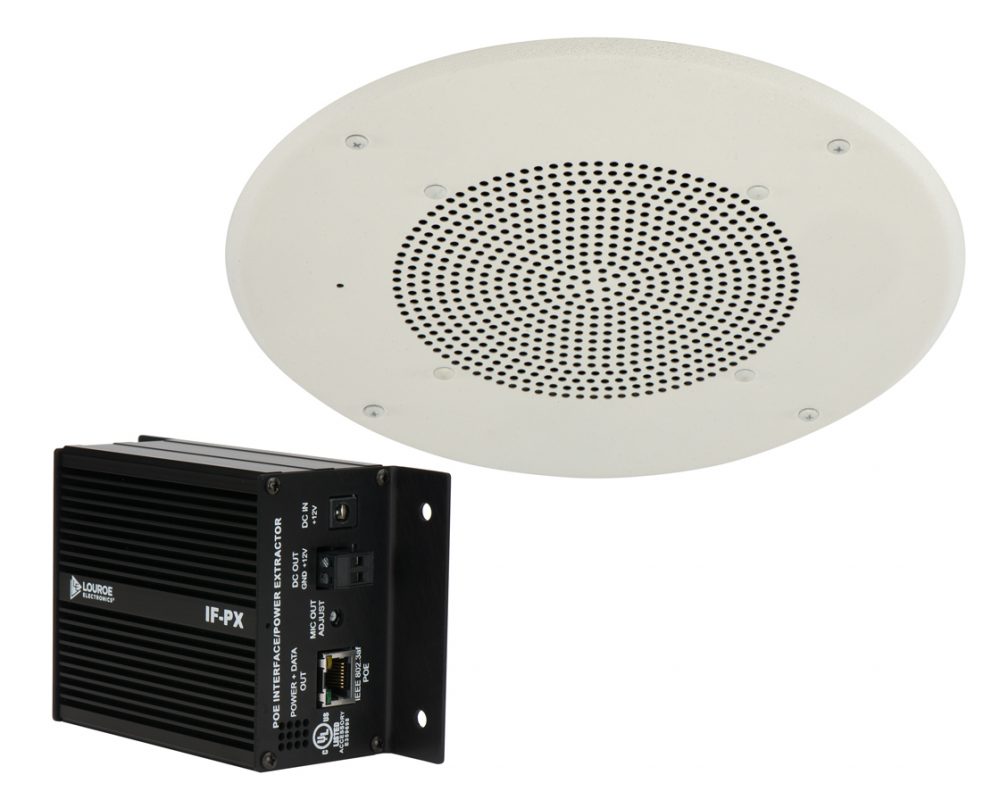

Louroe LE-347 IF-PX Interface PoE Extractor w/ AOP-SP-CF Speakerphone

The ASK-4 #370 is a two-way talk and listen single zone audio monitoring system. This system is designed to tap POE power and provide two-way communication through the IP camera’s video management software. The IF-PX is a POE inline interface that taps some power from the IP camera’s Ethernet powered cable to supply power to the AOP-SP-CF Speaker/Microphones. Model AOP-SP-CF is a ceiling mount self-amplified speaker/microphone designed to connect to an IP camera, encoder, DVR or PC soundcard.

Supports both Mode A and Mode B power options of IEEE802.3af

Kit Contents

• AOP-SP-CF
• IF-PX Audio Interface power extractor
• Two 6ft 3.5mm Stereo Patch Cables

Application

The ASK-4 #370 can be used in situations such as:

• Convenience Stores
• Fast Food Restaurants
• Customer Service Counters
• Cashier Booths

...Anywhere that two-way audio into a DVR, PC Soundcard, IP Network Camera is required etc

Features

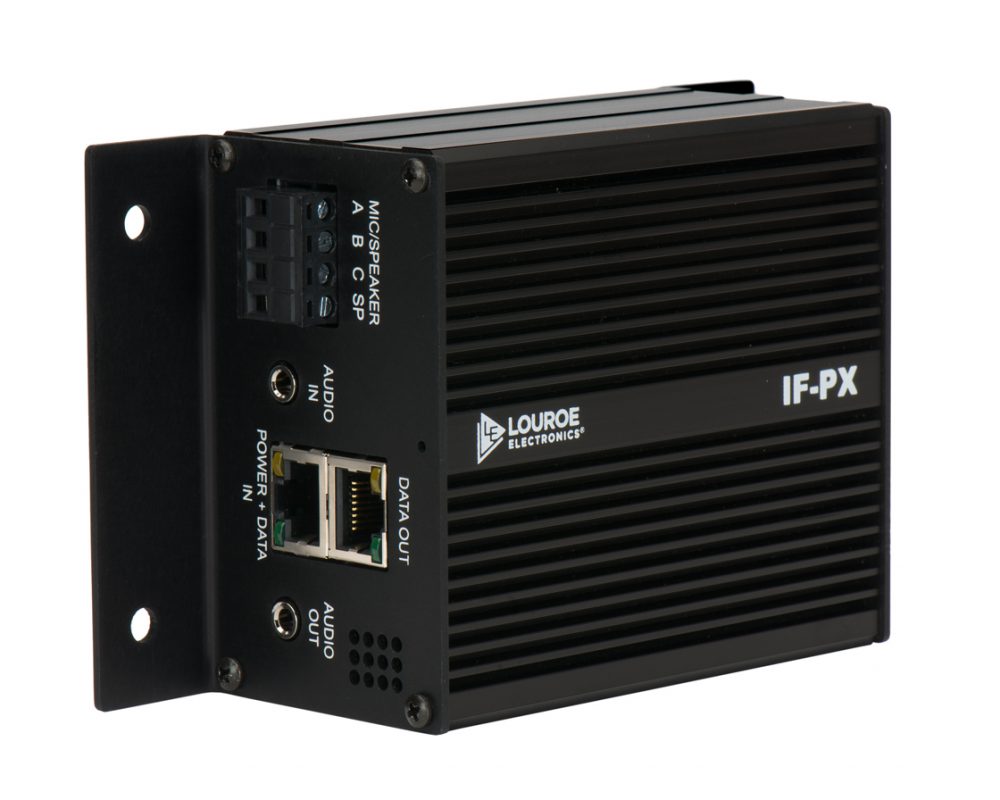

IF-PX

• Provides power to external AOP-SP-CF
• Supports both Mode A and Mode B power options Automatic detection of both modes.
• Variable gain audio output
• 3.5mm stereo audio input and output for IP camera
• Power LED indicator
• Overload and short circuit protection

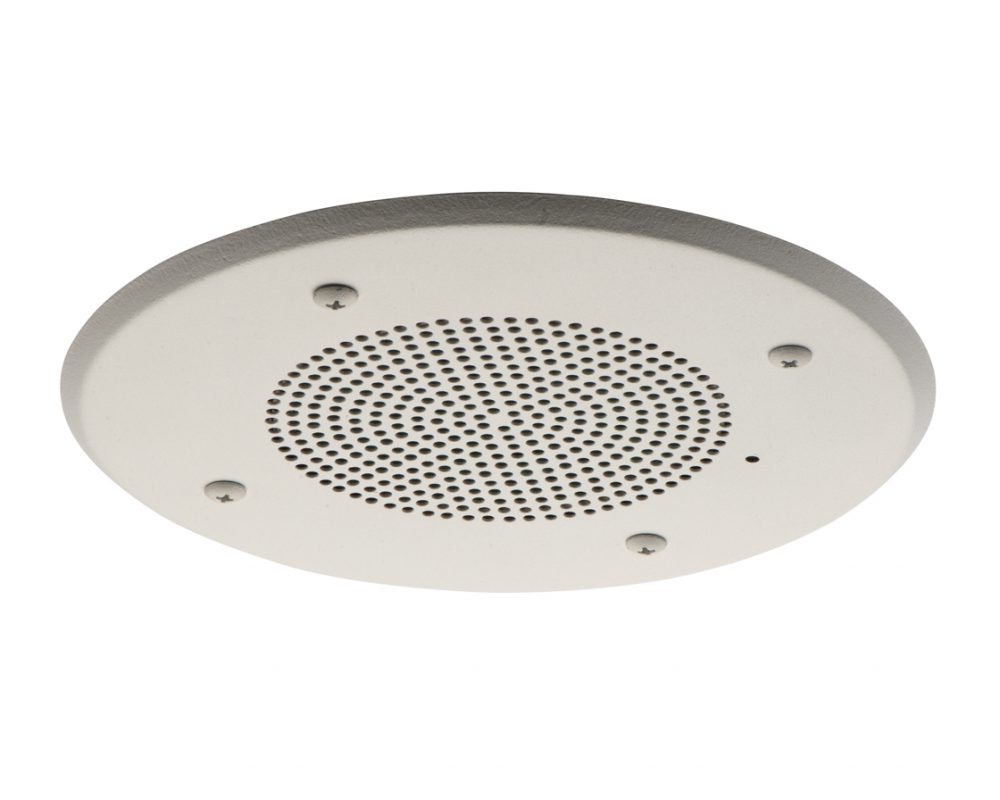

AOP-SP-CF

• Omni-directional microphone and 4" speaker
• Controls for adjusting volume of both listen and talkback
• Hands-free operation for talk/listen
