LOUROE - LE-361 - Single Zone Base Station w/Verifact® B Microphone

The ASK-4 #101B is a single zone audio monitoring system. It is designed for audio monitoring and interfacing with DVR’s, VCR’s or other audio devices that accept line level input. The microphone can be ceiling or wall mounted and provides a 30 foot diameter circle coverage. The mic element is exteded 3’ for high ceiling application. The desk top audio base station (APR-1) contains a 3" speaker for monitoring live audio and playback from a DVR or VCR. Microphone is preamplified and produces line level output.

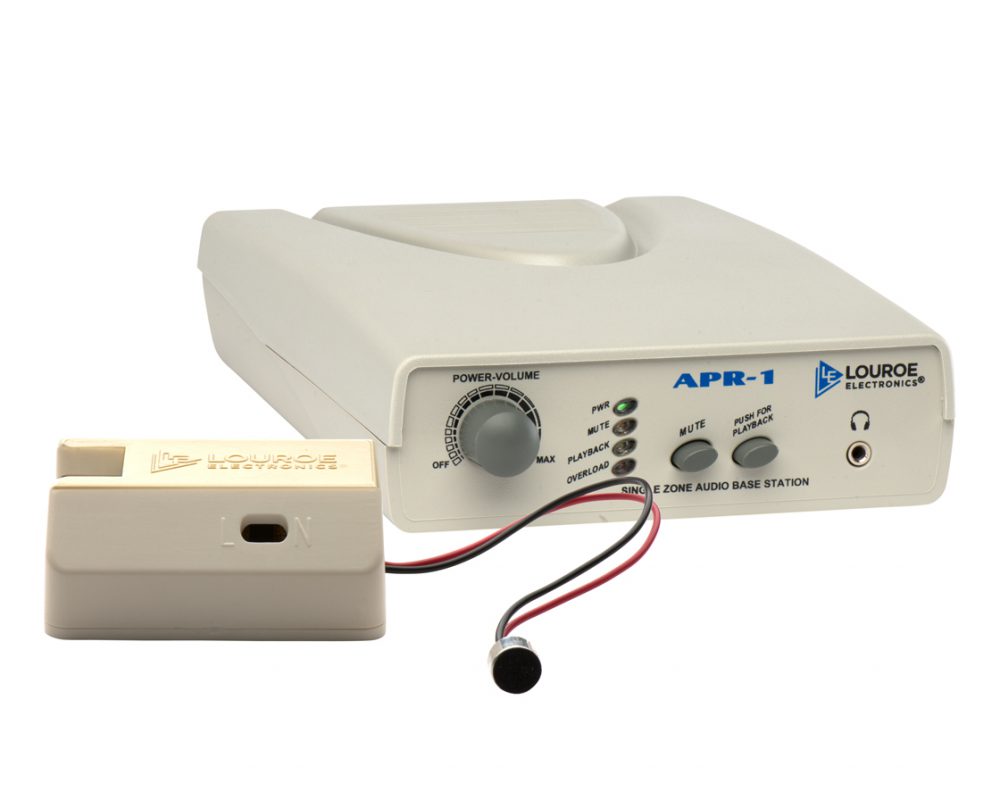

Kit Contents

• VERIFACT Model B Electret Condenser Microphone for surface mounting to ceiling
• Model APR-1 Audio Base Station
• Model AD-1 12Vdc power supply
• Dual RCA cables for connection to DVR/VCR

NOTE: Model APR-1 Base Station can be equipped for 19” rack mounting. Request RM-1935-APR Rack Mount Assembly

Application

• The ASK-4 #101-B is designed for numerous applications such as:
• Convenience Stores
• Fast Food Restaurants
• Booking Rooms
• Interrogation Rooms
• Car dealership sales contract rooms
• Child Abuse Interviews
• Sleep Disorder Centers
• Speech Therapy Labs
• Cashier Booths
• Casino use in:
  • - soft count rooms
  • - detention centers
  • - medical treatment rooms
  • - cash cages

Features

• Audio output (RCA) to DVR, VCR
• Omni-directional microphone can pick up normal sounds 15' away if wall mounted, or within a 30' +diameter circle if ceiling mounted
• 3" speaker for monitoring live audio and playback +from a DVR or VCR
• 3.5 mm headphone jack for private listening
• Microphone may be mounted up to 1000’ from the APR-1Base Station
