LOUROE - LE-363 - Single Zone Base Station w/Verifact® E Microphone

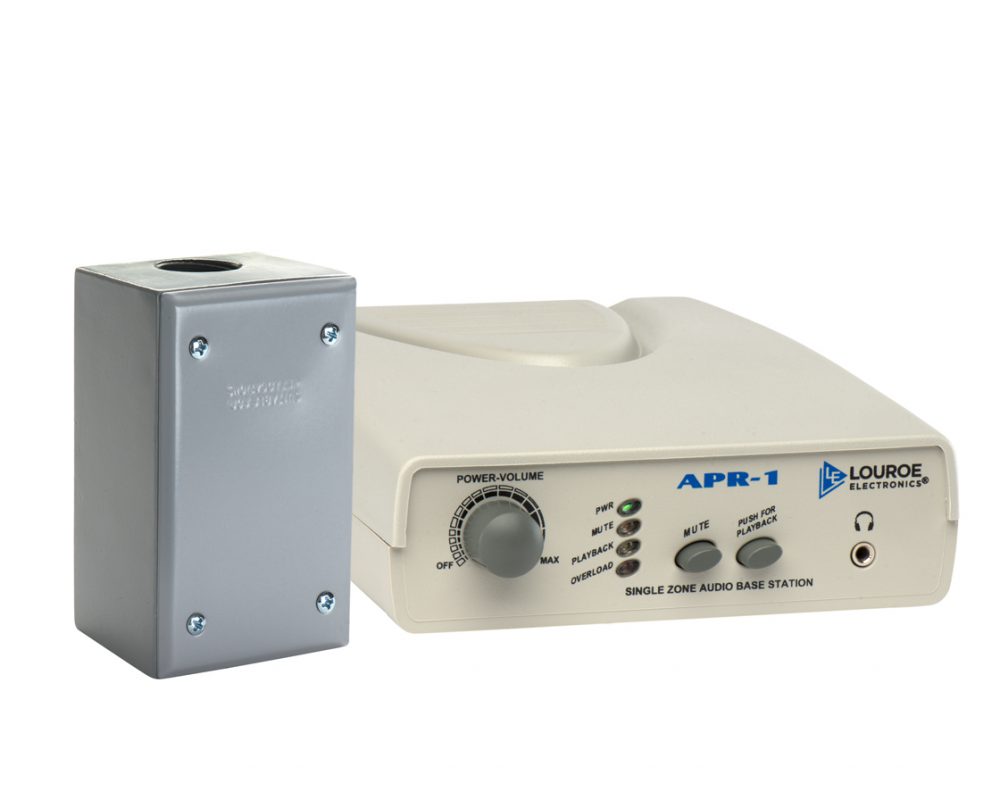

The ASK-4 #101-E is a single zone audio monitoring system. It is designed for audio monitoring and interfacing with DVR’s, VCR’s or other audio devices that accept line level input. The microphone is mounted on a single gang bell box faceplate and is designed for outdoor or moist environment. It provides a 30 foot diameter circle coverage. The desk top audio base station (APR-1) contains a 3" speaker for monitoring live audio and playback from a DVR or VCR. Microphone is pre-amplified and produces line level output

Kit Contents

• VERIFACT Model E Electret Condenser Microphone for surface mounting to ceiling
• Model APR-1 Audio Base Station
• Model AD-1 12Vdc power supply
• Dual RCA cables for connection to DVR/VCR

NOTE: Model APR-1 Base Station can be equipped for 19” rack mounting. Request RM-1935-APR Rack Mount Assembly

Application

The ASK-4 #101E is designed for numerous applications such as:

• Convenience Stores
• Fast Food Restaurants
• Booking Rooms
• Interrogation Rooms
• Car dealership sales contract rooms
• Child Abuse Interviews
• Sleep Disorder Centers
• Speech Therapy Labs
• Cashier Booths
• Casino use in:
  • - softcount rooms
  • - detention centers
  • - medical treatment rooms
  • - cash cages

Features

• Audio output (RCA) to DVR, VCR
• Omni-directional microphone can pick up normal sounds 15' away if wall mounted, or within a 30' +diameter circle if ceiling mounted
• 3" speaker for monitoring live audio and playback +from a DVR or VCR
• 3.5 mm headphone jack for private listening
• Microphone may be mounted up to 1000’ from the APR-1Base Station
