LOUROE - LE-368 - Single Zone Audio Interface w/Mixer/2 A Microphones

ASK-4 #431 is a single zone audio monitoring system with two microphones for extended coverage. It is designed for direct connection to a DVR or IP Camera. The IF-1 audio interface adapter powers up the RN-2 and the two microphones and drives the audio signal into the DVR, IP Cameras or Video Servers. Has adjustable gain output to prevent overdriving the receiver. The RN-2 is an audio mixer and has a balance control adjust to balance the outputs of the microphones. The Verifact A microphones are omnidirectional electret condenser type with pre-amp that produces line level audio outputs. The microphones can be up to 1000’ from the IF-1. It can pick up normal sounds approximately 15’ away all directions or 30’ diameter circle.

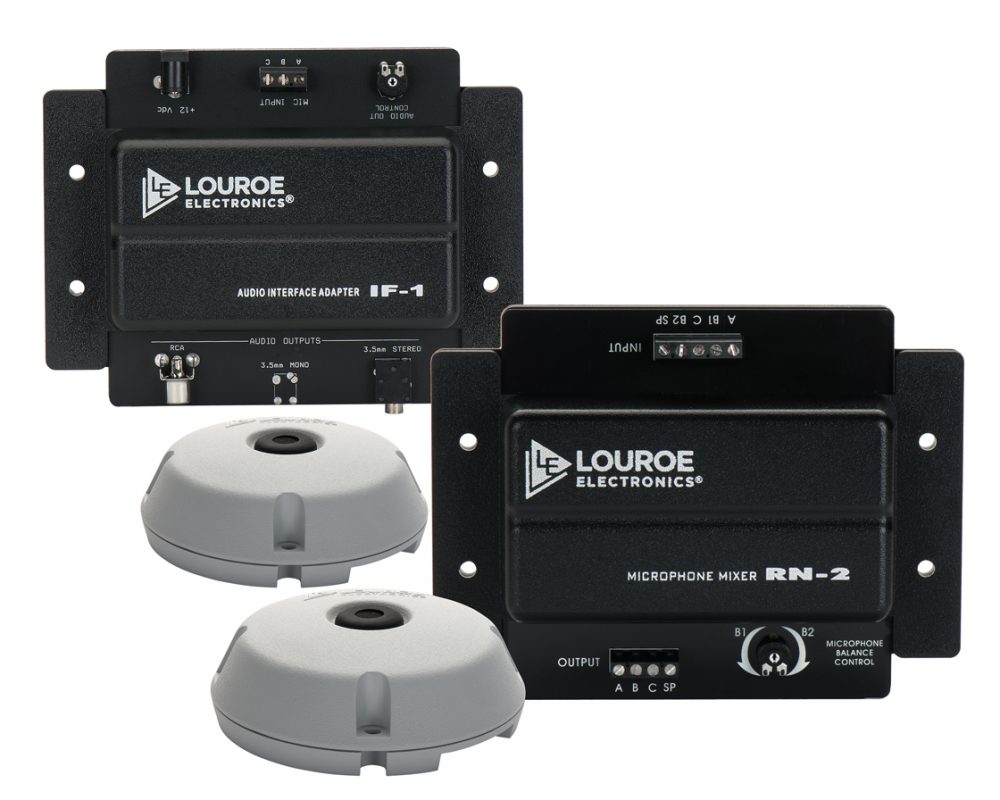

Kit Contents

• 2 Verifact Model A Microphone

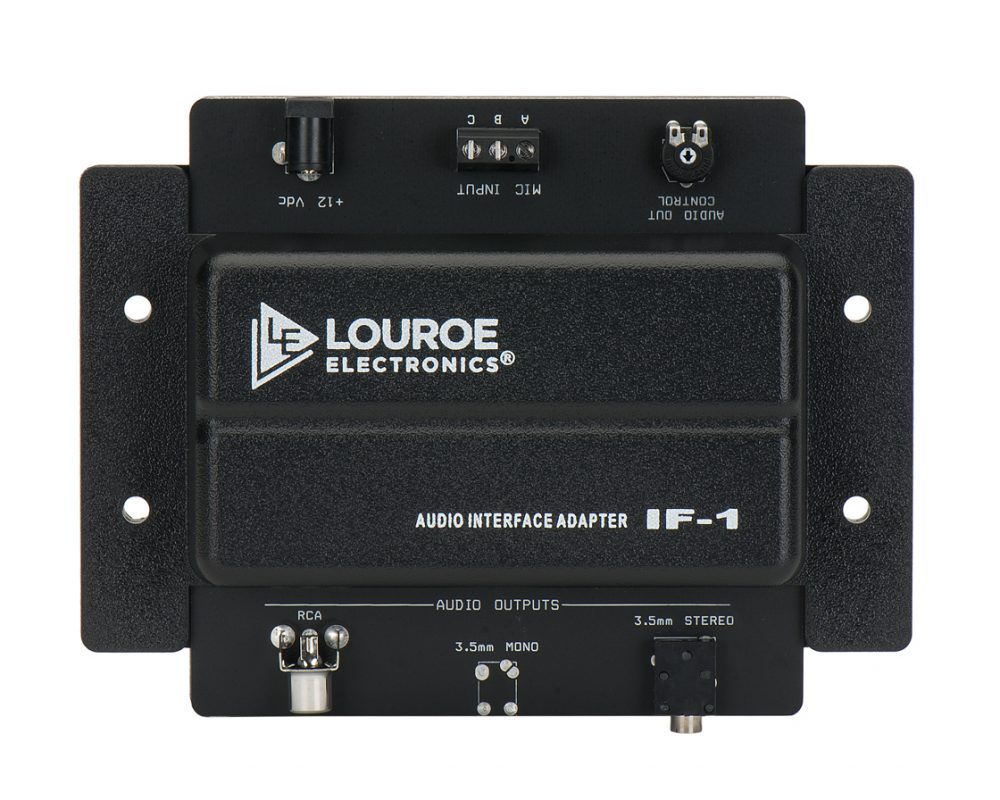

• Model IF-1 Audio Interface Adapter

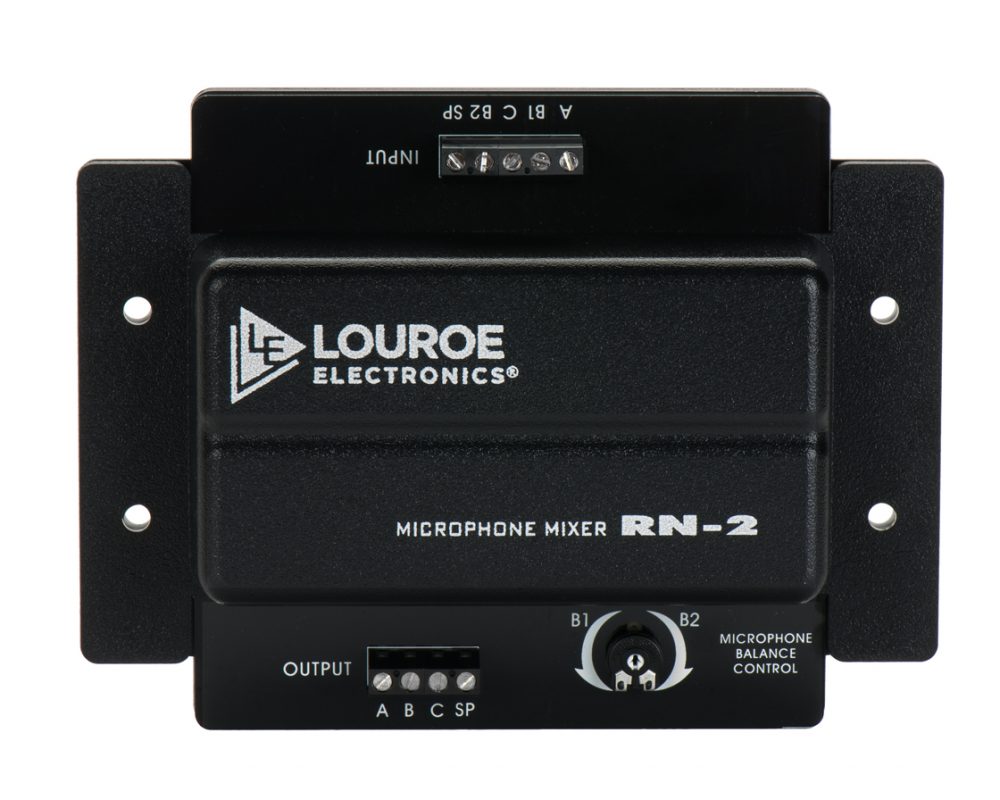

• Model RN-2 Audio Mixer
• Model AD-1 12Vdc power supply
• Patch cables (RCA and 3.5mm) for connection to the audio inputs of DVR’s, IP Network Cameras, Video Encoders

Application

The ASK-4 #431 can be used in situations such as:

• Convenience Stores
• Fast Food Restaurants
• Customer Service Counters
• Cashier Booths

...Anywhere that transmitting audio into a DVR, Video Servers, IP Network Cameras is required etc.

Features

• Omni-directional microphone can pick up normal sounds 15’ away or within a 30’ diameter circle.
• Model IF-1 Audio Interface Adapter provides power to the microphones.
• Contains gain adjust output to prevent overdriving of signal into a DVR, soundcard, IP Network Camera, etc. Gain is +10dB max.
• RN-2 has balance audio control to balance the audio of the microphone so the output to IF-1 is the same.
• 12Vdc power supply included
• Connector cables from audio output of IF-1 to audio input of recording device included
