LOUROE - LE-373 - Single Zone, Bi-directional w/ TLI-CS

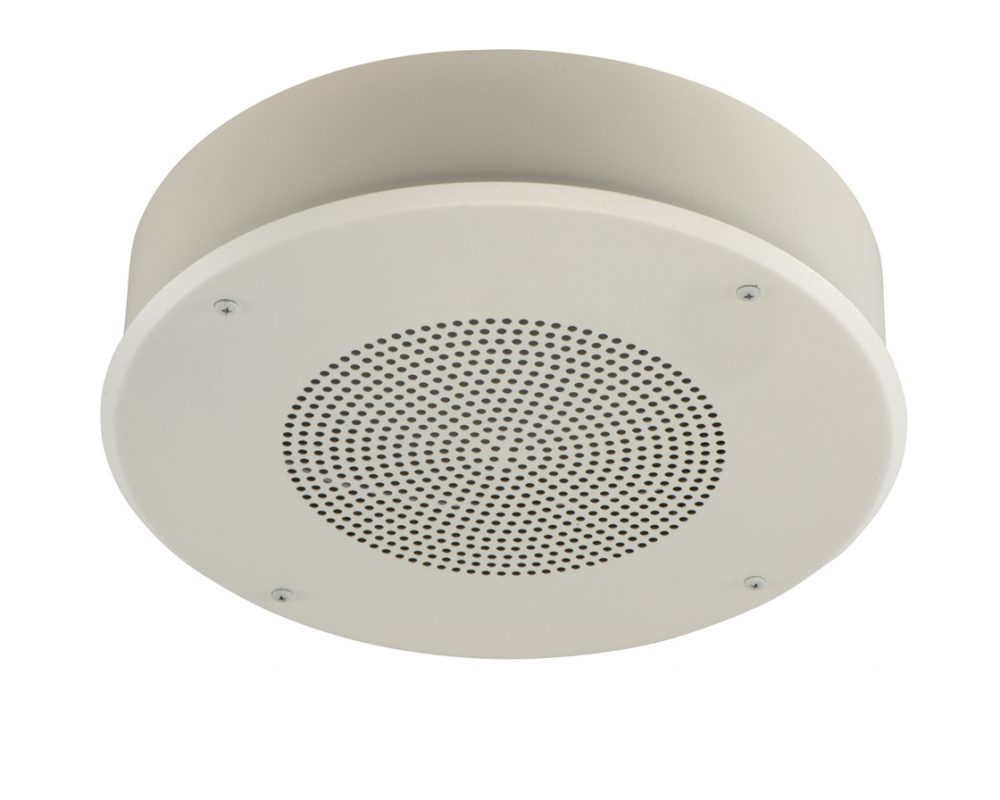

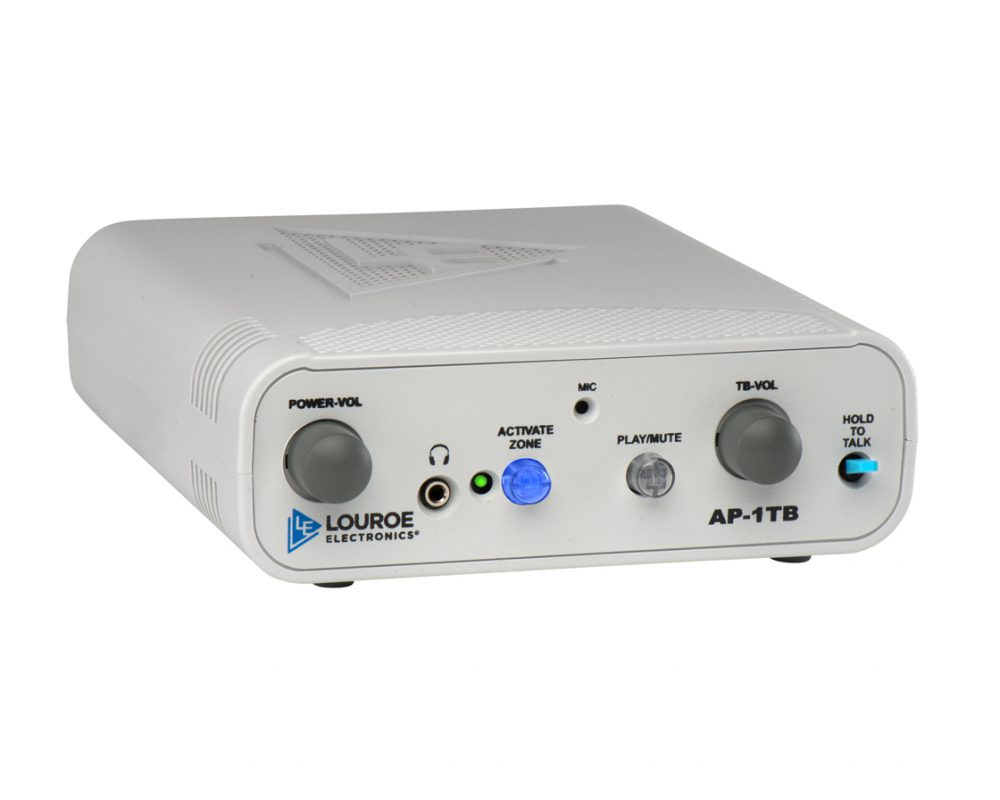

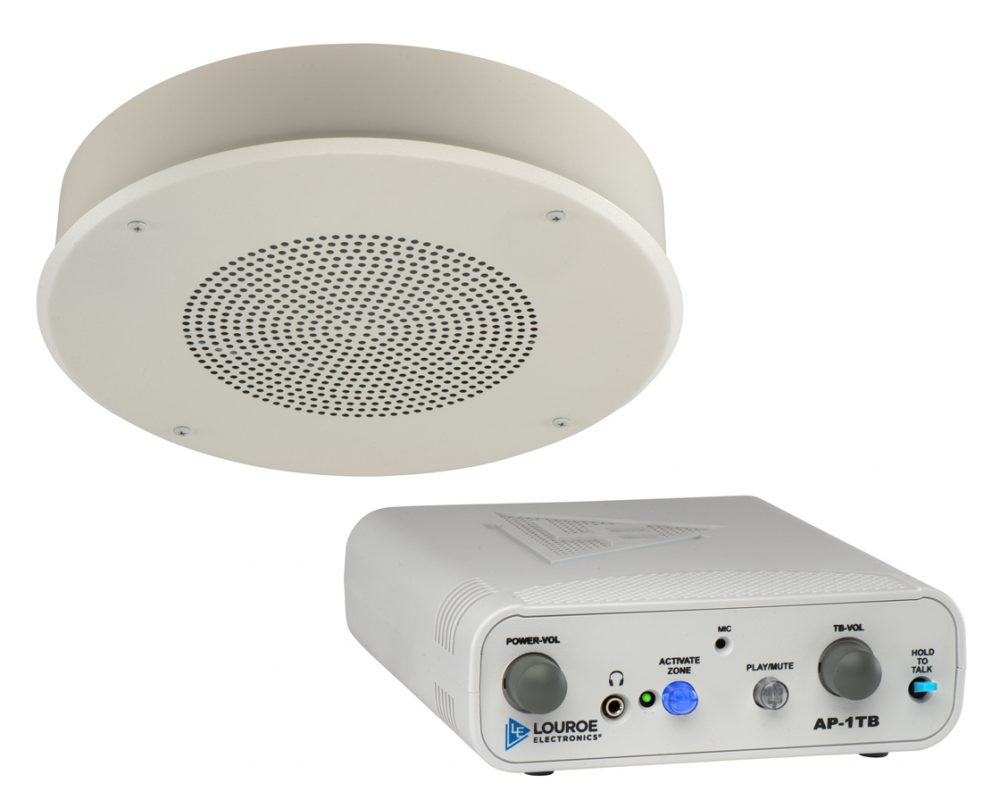

The ASK4 #501-TLI-CS is a single zone audio monitoring system for two-way listen/talkback communication. The remote TLI-CS is a ceiling surface mounted speaker/microphone that contains an onmi-directional microphone and an 8” speaker. As part of a complete system audio can be monitored by manually pressing the zone activation switch of the base station. It has input-output to a DVR/VCR for recording and playback. Contains a 3 speaker for monitoring live audio and playback from a DVR/VCR. A 12Vdc power supply is included. For two-way listen/talkback, all Louroe Speaker/Microphones (TLI, TLO, TLM, TLMC, or TLSP) are compatible.

Application

When part of a Louroe Audio System, the ASK 4 #501-TLI-CS can be used in situations such as:

• Sleep Disorder Labs
• Therapy Labs
• Classrooms
• Anywhere CCTV Cameras Are Installed
• Heart Catheter Labs
• Convenience Stores
• Observation Rooms
• Warehouses
• Fast Food Restaurants

Features

• Built-in 3 speaker for monitoring audio.
• Built-in amplifier for playback from DVR/VCR.
• Provides two-way listen/talkback using Louroe +Speaker/Microphone.
• Built-in microphone for talkback to remote +speaker.
• 3.5 mm headphone jack for private monitoring.
• Can be desktop or rack mounted
• Mute function for muting remote station
• Illuminated zone switches
• Remote TLI-CS with 8”, 20W speaker and microphone
