LOUROE - LE-380 - Single Zone Base Station w/ A Microphone w/ Mute Switch

The ASK-4 #601 is a single zone audio monitoring system with a wall mounted mute switch. This system is designed to interface with a DVR, VCR or other recording devices that accept line level input. The APR-1 Audio Base Station contains a built-in 3” speaker and volume control for producing live audio and audio playback. The Verifact A is an omnidirectional pre-amplified microphone that produces line level output. The MS-1 is an illuminated mute switch that can mute microphone output to recorder and is commonly used

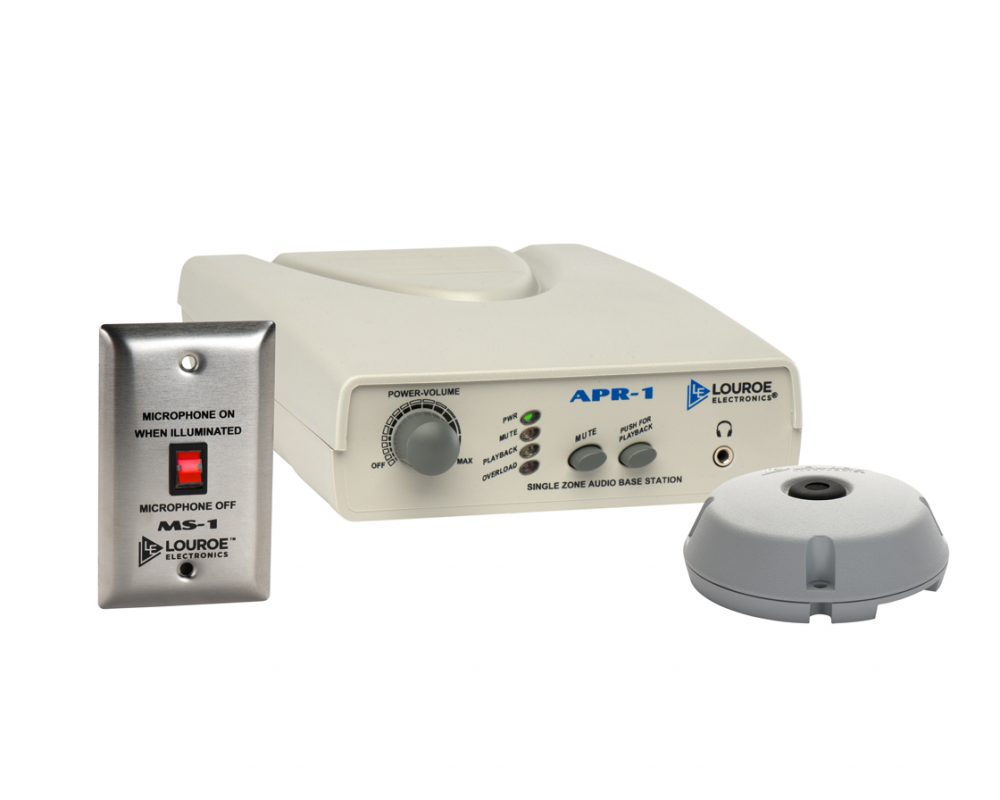

Kit Contents

• Verifact Model A Microphone
• Model APR-1 Audio Base Station
• Model MS-1 Mute Switch
• Model AD-1 12Vdc power supply
• RCA cables for connection to the audio input of DVRs

Application

The ASK-4 #601 can be used in situations such as:

• Convenience Stores
• Fast Food Restaurants
• Customer Service Counters
• Cashier Booths

Features

• Omni-directional microphone can pick up normal sounds 15’ away or within a 30’ diameter circle.
• Model APR-1 has 3” speaker for monitoring live audio and playback from recorder.
• 3.5mm headphone jack for private listening.
• MS-1 switch turns off the microphone when it is not needed
• 12Vdc/110V power supply included
• Connector cables from audio output of APR-1 to audio input of recording device included
