LOUROE - LE-381 - Interface w/ A Microphone w/Mute Switch

The ASK-4 #631 is a single zone audio monitoring system with a wall mounted mute switch. This system is designed to interface with a DVR, VCR or other recording devices that accept line level input. The IF-1 Audio Interface Adapter provides power to the microphone and gain controlled audio output to the receiving device such as an IP camera or DVR. The Verifact A is an omnidirectional pre-amplified microphone that produces line level output. The MS-1 is an illuminated mute switch that can mute microphone output to recorder and is commonly used for interrogation rooms.

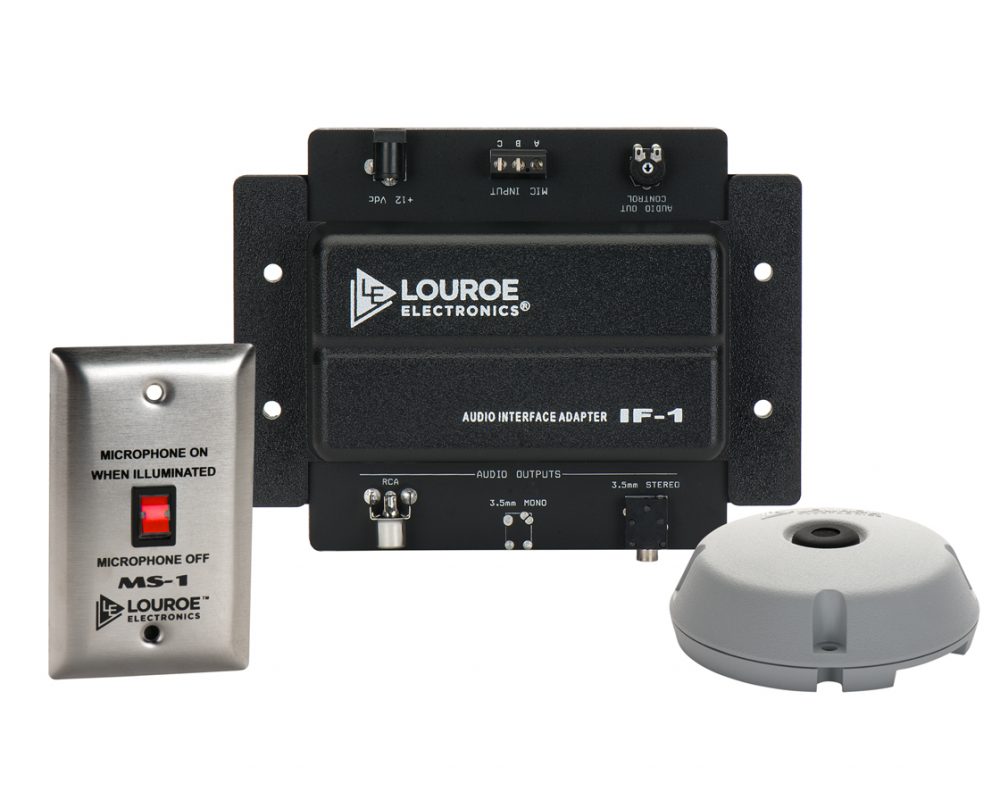

Kit Contents

• Verifact Model A Microphone
• Model IF-1 Audio Interface Adapter
• Model MS-1 Mute Switch
• Model AD-1 12Vdc power supply
• Single RCA cable
• 3.5mm Stereo Cable
• RCA to 3.5mm Mono Adaptor

Application

The ASK-4 #631 can be used in situations such as:

• Convenience Stores
• Fast Food Restaurants
• Customer Service Counters
• Cashier Booths

Features

• Omni-directional microphone can pick up normal sounds 15’ away or within a 30’ diameter circle.
• Model IF-1 Audio Interface Adapter provides power to the microphones.
• Contains gain adjust for each microphone output to prevent overdriving of signal into a DVR, soundcard, IP Network Camera, etc
• Mute switch turns off the microphone when it is not needed
• 12Vdc/110V power supply included
• Connector cables from audio output of IF-1 to audio input of recording device included
