LOUROE - LE-395 - Eight Zone Base Station w/Verifact® A Microphones

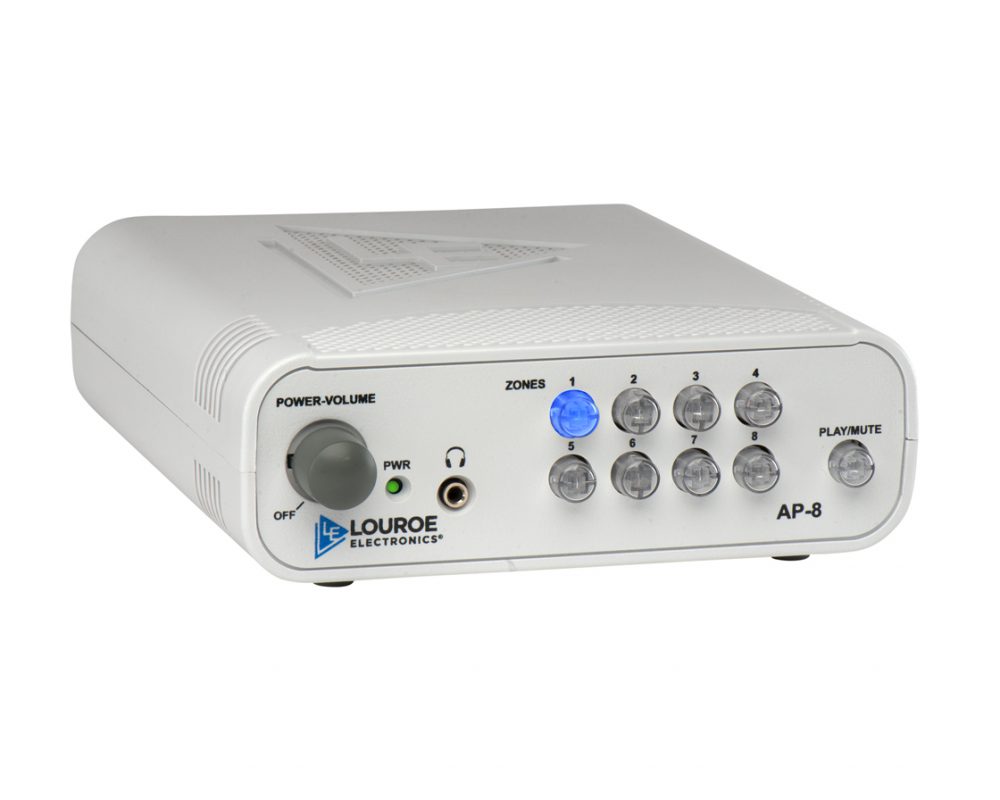

The ASK-4 #108 is a eight-zone audio monitoring system. It is designed for audio monitoring and interfacing with DVR’s, VCR’s or other audio devices that accept line level input. The microphone can be ceiling or wall mounted and provides a 30 foot diameter circle coverage. The desk top audio base station (AP-8) contains a 3" speaker for monitoring live audio and playback from a DVR or VCR. AP-8 will accommodate 8 microphones and zone selection is by pushbutton. Contains Mute/Playback switch that mutes audio from remote microphones. Microphone is pre-amplified and produces line level output.

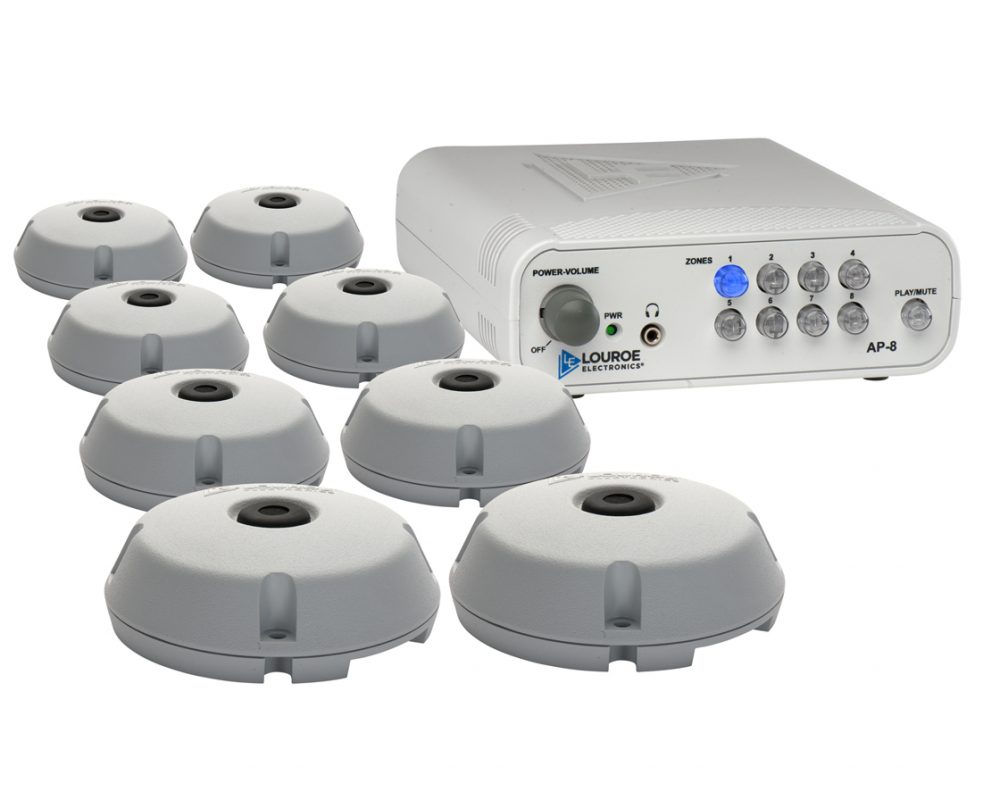

Kit Contents

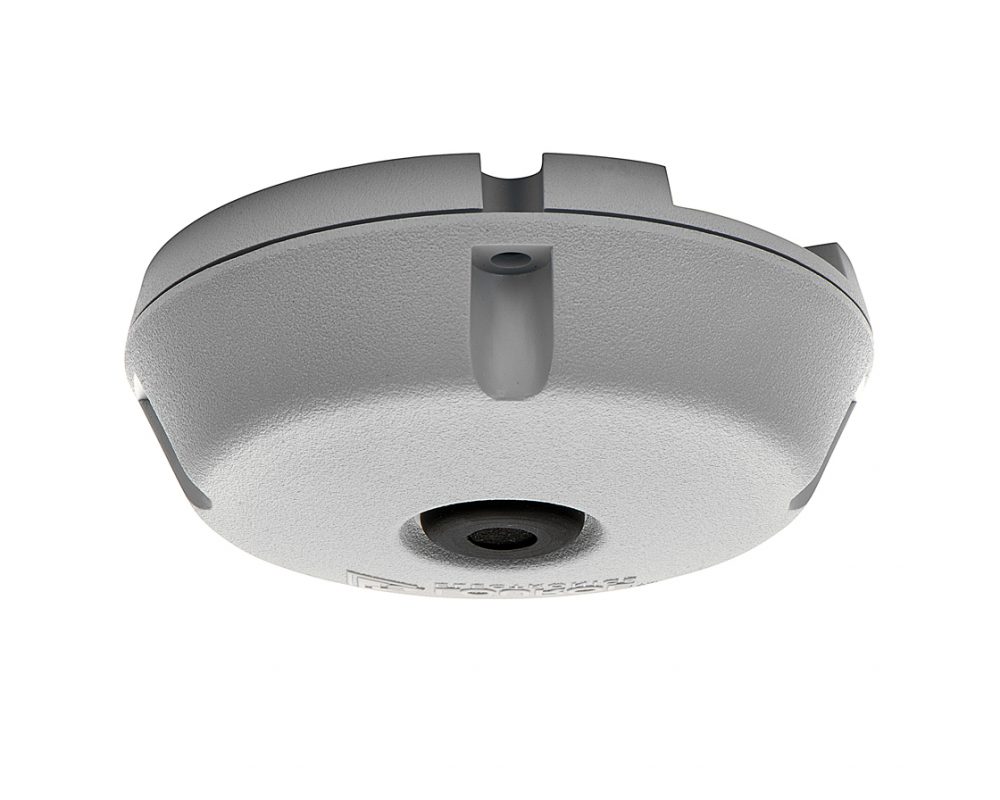

• 8 VERIFACT Model A Electret Condenser
• Microphone for surface mounting to ceiling
• Model AP-4 Audio Base Station
• Model AD-1 12Vdc power supply
• Dual RCA cables for connection to DVR/VCR

NOTE: Model AP-8 Base Station can be equipped for 19” rack mounting. Request RM-1935-APR Rack Mount Assembly

Application

The ASK-4 #108 is designed for numerous applications such as:

• Convenience Stores
• Fast Food Restaurants
• Booking Rooms
• Interrogation Rooms
• Car dealership sales contract rooms
• Child Abuse Interviews
• Sleep Disorder Centers
• Speech Therapy Labs
• Cashier Booths
• Day Care Centers

Features

• Audio output (RCA) to DVR, VCR
• Omni-directional microphone can pick up normal sounds 15' away if wall mounted, or within a 30' +diameter circle if ceiling mounted
• 3" speaker for monitoring live audio and playback +from a DVR or VCR
• 3.5 mm headphone jack for private listening
• Microphone may be mounted up to 1000’ from the AP-8 Base Station
