LOUROE - LE-434 - 4 Zone Audio Monitoring Base Station

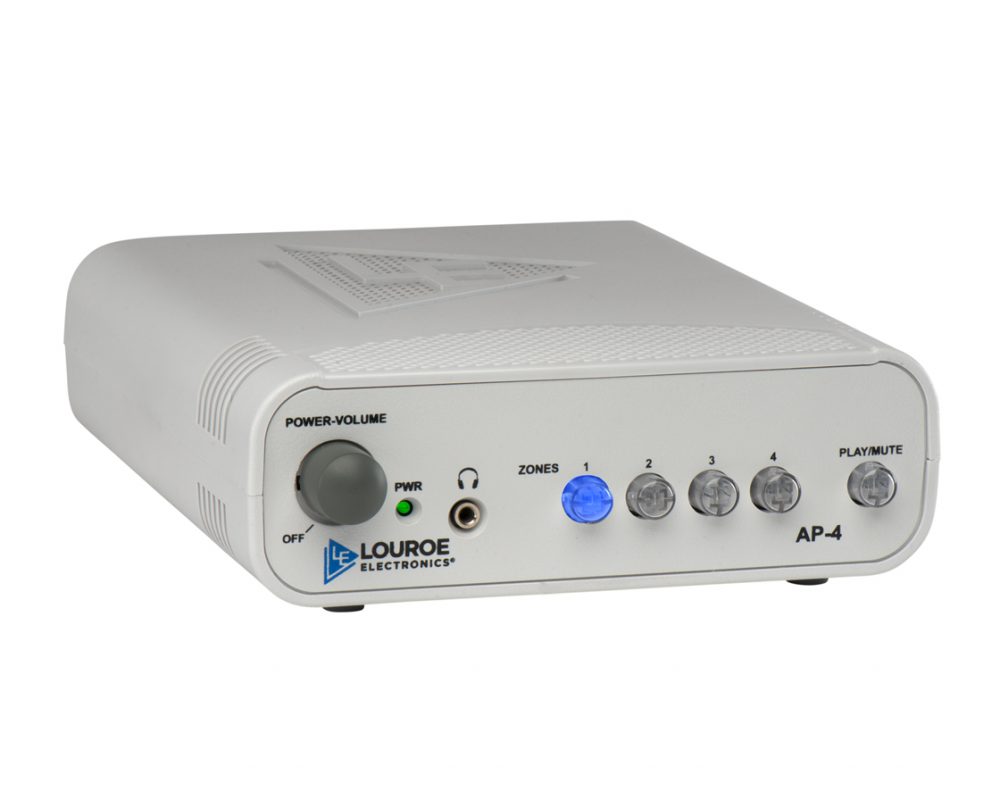

The AP-4 is a four-zone audio base station. It is designed for audio monitoring and interfacing with DVR’s, VCR’s or other audio devices that accept line level input. The unit is a desk top audio base station that contains a 3" speaker for monitoring live audio and playback from a DVR or VCR. AP-4 will accommodate 4 microphones and zone selection is by pushbutton. Contains Mute/Playback switch that mutes audio from remote microphones.

AP-4 ACCESSORIES

• Model AD-1 12Vdc power supply
• Dual RCA cables for connection to DVR/VCR

NOTE: Model AP-4 Base Station can be equipped for 19” rack mounting. Request AP-4-RM

Application

The AP-4 is designed for numerous applications such as:

• Convenience Stores
• Fast Food Restaurants
• Booking Rooms
• Interrogation Rooms
• Car dealership sales contract rooms
• Child Abuse Interviews
• Sleep Disorder Centers
• Speech Therapy Labs
• Cashier Booths
• Day Care Centers

Features

• Audio output (RCA) to DVR, VCR
• Lighted zone and playback/mute switches
• 3" speaker for monitoring live audio and playback from a DVR or VCR
• 3.5 mm headphone jack for private listening
• Has Mute switch to prevent audio from being heard at the unit speaker
• 4 Line level microphone outputs
