LOUROE - LE-520 - Audio Interface PoE Extractor

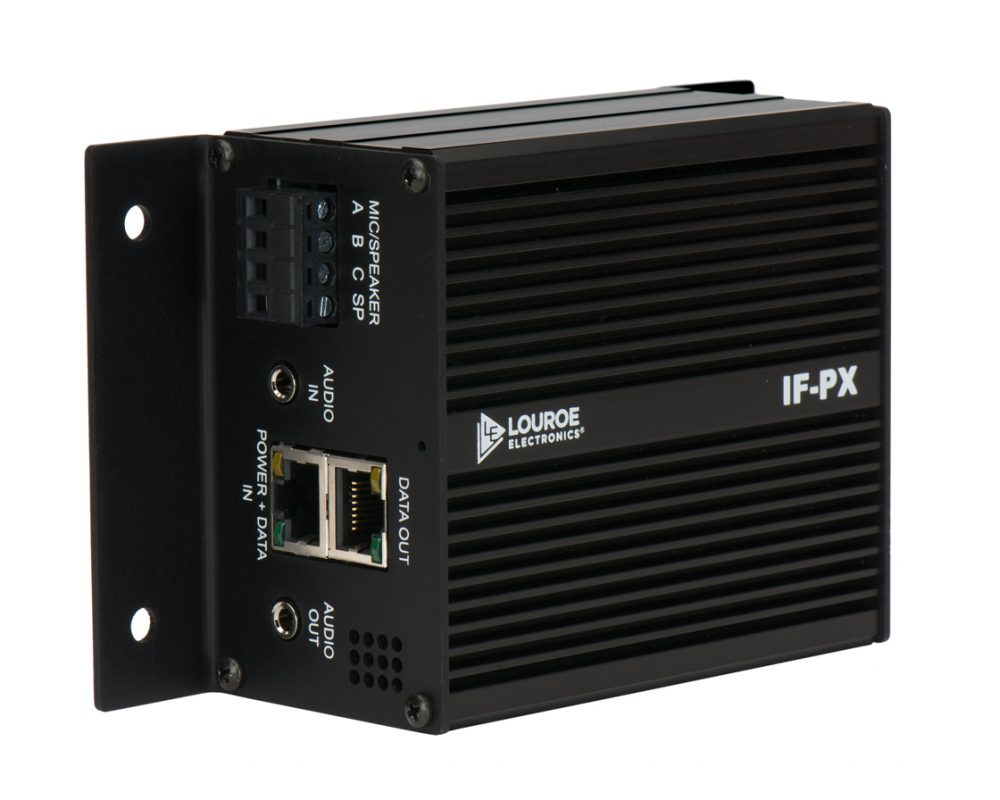

Model IF-PX is a single zone POE in-line interface designed to extracts power from an Ethernet connection to power Louroe microphones, speaker/microphones and external devices that require a 12Vdc supply such as Encoders and Non PoE IP cameras. The IF-PX supports both one-way and two-way audio. Most commercial grade line level unbalanced microphones are compatible with this unit. Audio output has variable gain control.

Terminal blocks are employed to receive signal wiring from a Louroe Verifact microphone or an AOP-SP speaker/microphone. Two 3.5mm stereo male to 3.5mm stereo male audio cables are included to connect the unit to an IP camera or Encoder. Both Mode A and Mode B power options of IEEE802.3af are supported. Outputs for both PoE (Power+Data) and Non-PoE (Data Only) cameras and Encoders are included. The IF-PX has built-in thermal, overload and short-circuit protection that protects the unit from overcurrent and over temperature. The unit shuts down and turns back ON after the fault is removed.

• Single zone power over Ethernet extractor
• Supports mode A and B power options IEEE (802.3af)
• +12 Vdc power output for external equipment
• Variable gain audio output potentiometer
• Audio in/out for IP cameras
• Thermal overload protection
• Short circuit protection
• Data only RJ-45 output jack
