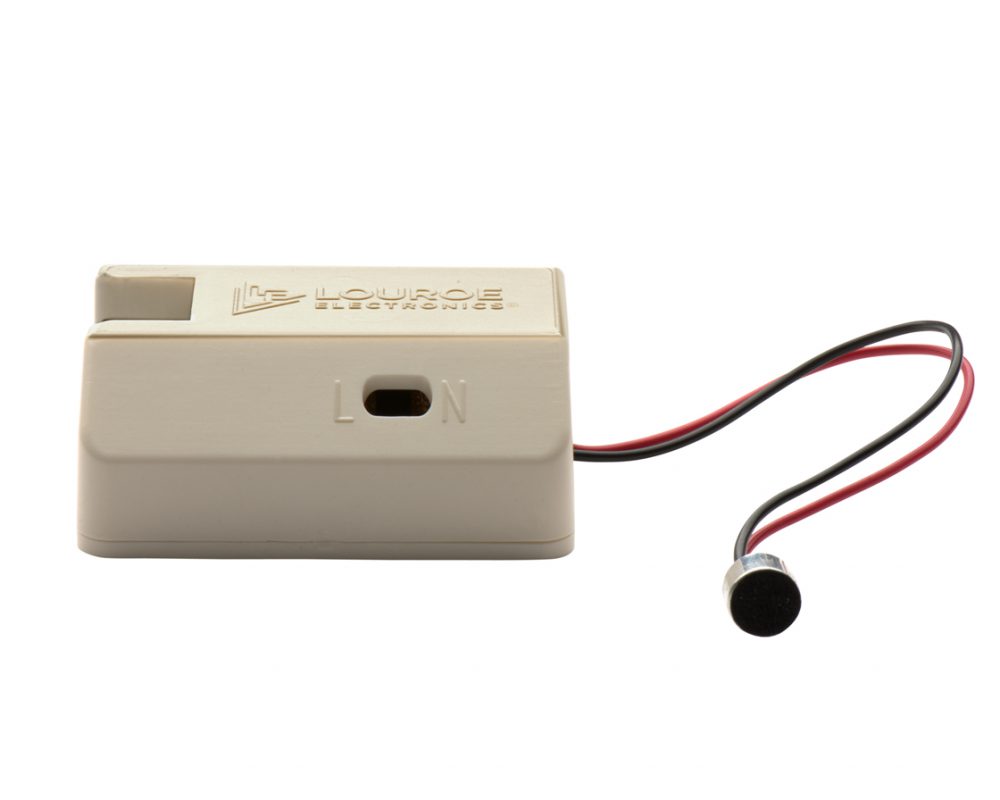

LOUROE - LE-572 - Special Applications Microphone

The Verifact CGC is an omni-directional, low impedance, electret condenser microphone with built-in preamp and automatic gain control. It can pick up normal sounds approximately 25 ft. away, or within a 50 ft. diameter circle. It’s built-in limiter prevents the output signal to be overdriven thus minimizing distortion. Verifact CGC produces line level output (0 dB) and can be located up to 1,000’ from the Louroe base station. Microphone has potentiometer to adjust the output gain up to +10dB. It is designed for mounting in a special or customized housing. The Verifact CGC is compatible with all Louroe Audio Base Stations or Louroe Audio Interface Adapters.

NOTE: Verifact CGC Microphone is NOT recommended for outdoor use or in areas with high moisture content.

Application

When part of a Louroe Audio System, the Verifact CGC Microphones can be used in situations such as:

• Convenience Stores
• Fast Food Restaurants
• Booking Rooms
• Interrogation Rooms
• Day Care Centers
• Sleep Disorder Centers
• Therapy Labs
• Cashier Booths
• Gas Stations
• Anywhere CCTV Cameras Are Installed

Features

• Has Automatic Gain Control/Limiter to +prevent overdriving the receiver
• Sturdy ABS housing
• Microphone can pick up normal sounds 25' +away
• Easy surface mount to wall or ceiling
• May be located up to 1000' from base station
• Powered from Louroe Base Station or +external 12Vdc source
• Microphone preamp contains output gain control Potentiometer to increase the output up to +10dB
