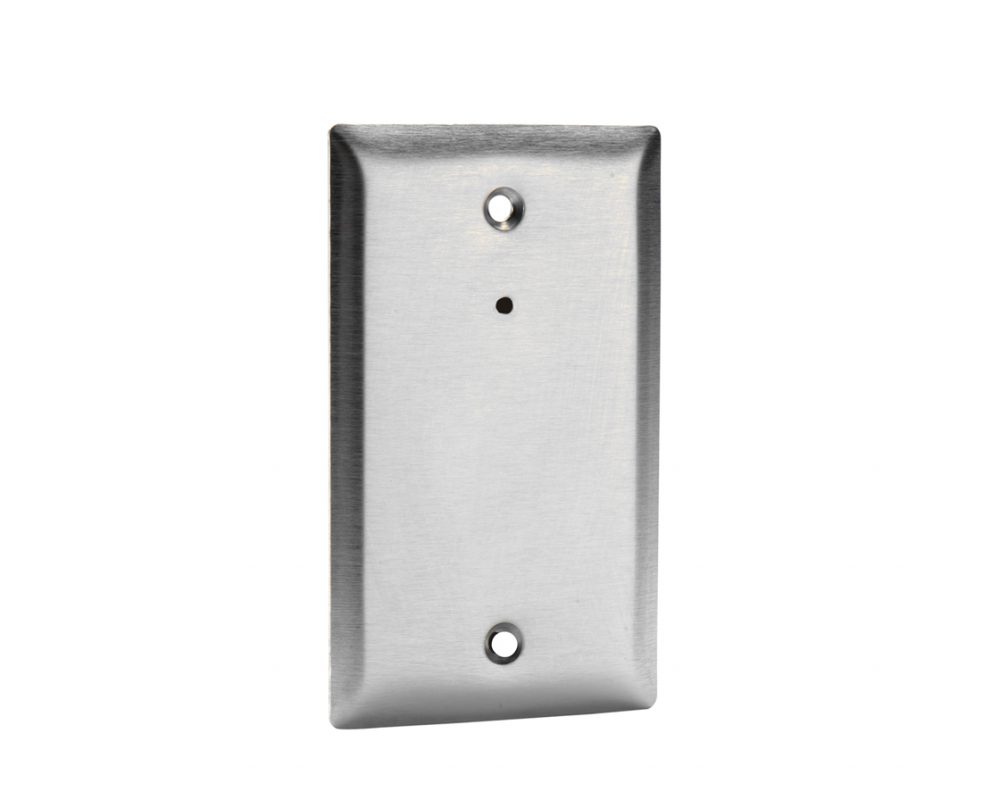

LOUROE - LE-578 - Wall Mount Microphone

The Model Verifact DGC is an omni-directional, low impedance, electret condenser microphone with built-in preamp and automatic gain control. It can pick up normal sounds approximately 25 ft. away, or within a 50 ft. diameter circle. It’s built-in limiter prevents the output signal to be overdriven thus minimizing distortion. Verifact DGC produces line level output (0 dB) and can be located up to 1,000’ from the Louroe base station. Microphone has potentiometer to adjust the output gain up to +10dB. It is primarily designed for wall mounting but can also be installed on any type of flat surface. It fits into a single gang electrical box. The Verifact DGC is compatible with all Louroe Audio Base Stations or Louroe Audio Interface Adapters.

NOTE: Verifact DGC Microphone is NOT recommended for outdoor use or in areas with high moisture content.

Application

When part of a Louroe Audio System, the Verifact DGC Microphones can be used in situations such as:

• Convenience Stores
• Fast Food Restaurants
• Booking Rooms
• Interrogation Rooms
• Day Care Centers
• Sleep Disorder Centers
• Therapy Labs
• Cashier Booths
• Gas Stations
• Anywhere CCTV Cameras Are Installed

Features

• Has Automatic Gain Control/Limiter to +prevent overdriving the receiver
• Stainless Steel faceplate
• Microphone can pick up normal sounds 25' +away
• Easy surface or flush mount to wall or ceiling
• May be located up to 1000' from base station
• Powered from Louroe Base Station or +external 12Vdc source
• Microphone preamp contains output gain control Potentiometer to increase the output up to +10dB
