LOUROE - LE-772 - Special Applications Microphone

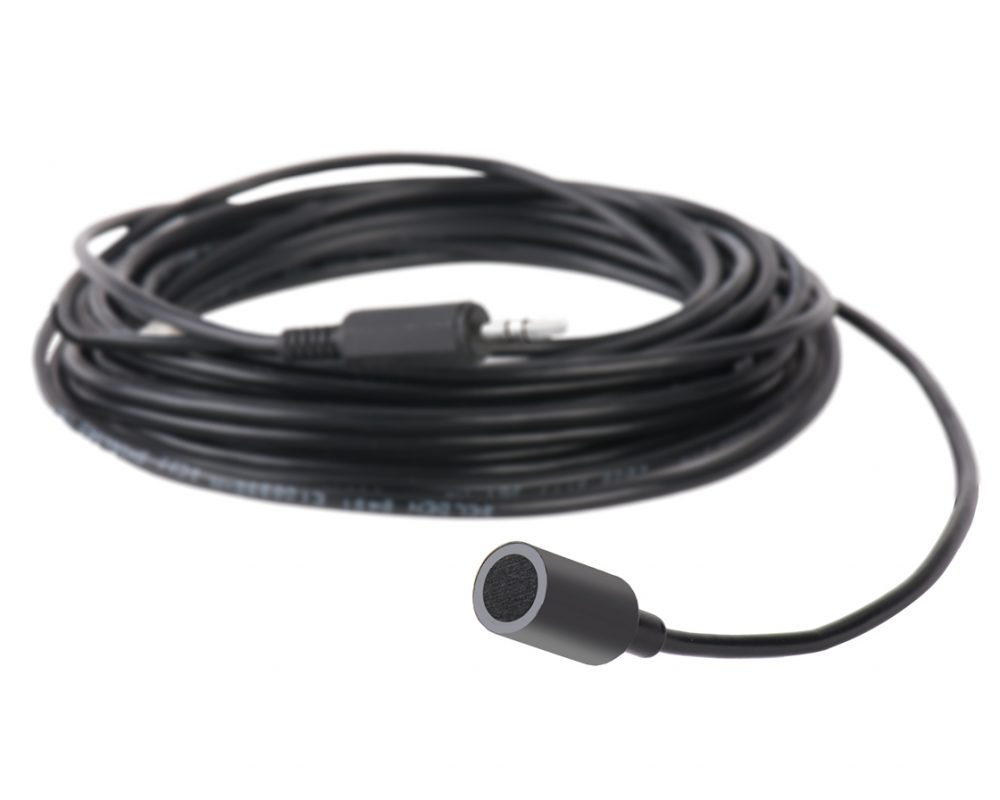

The Model C-ML is an omni-directional, low impedance, electret condenser microphone with mic level audio. It is housed in a high impact ABS tube designed for mounting in special or customized housing. Normal pick-up pattern is approximately 15' from the microphone location, all directions, or within 30' diameter circle. The unit comes with 20’ pre-made cable with a stereo plug on one end that can be plug directly to the Audio Input of an IP camera.

Application

The Model C-ML Microphones can be used in situations such as:

  • Convenience Stores
  • Fast Food Restaurants
  • Booking Rooms
  • Interrogation Rooms
  • Day Care Centers
  • Sleep Disorder Centers
  • Therapy Labs
  • Cashier Booths
  • Gas Stations
  • Anywhere CCTV Cameras Are Installed

Features

  • Easy connect to IP camera
  • Sturdy ABS housing
  • Microphone can pick up normal sounds 15' away
  • Custom applications
  • May be located up to 20' from IP Camera or pre-amp.
  • Extended Microphone for high ceiling application
Part number:
LE-772
Price:
Sensitivity -45 dB/pa
Frequency response 50 Hz to 8 kHz
Output Impedance 1kΩ
Current drain 0.8mA
Supply voltage 1.8Vdc to 4.5Vdc
Microphone housing High impact ABS
Dimensions 0.455” dia
Weight 4.5 oz
Shipping Weight 1 lb
