LOUROE - LE-775 - Outdoor or Moist Conditions Microphone

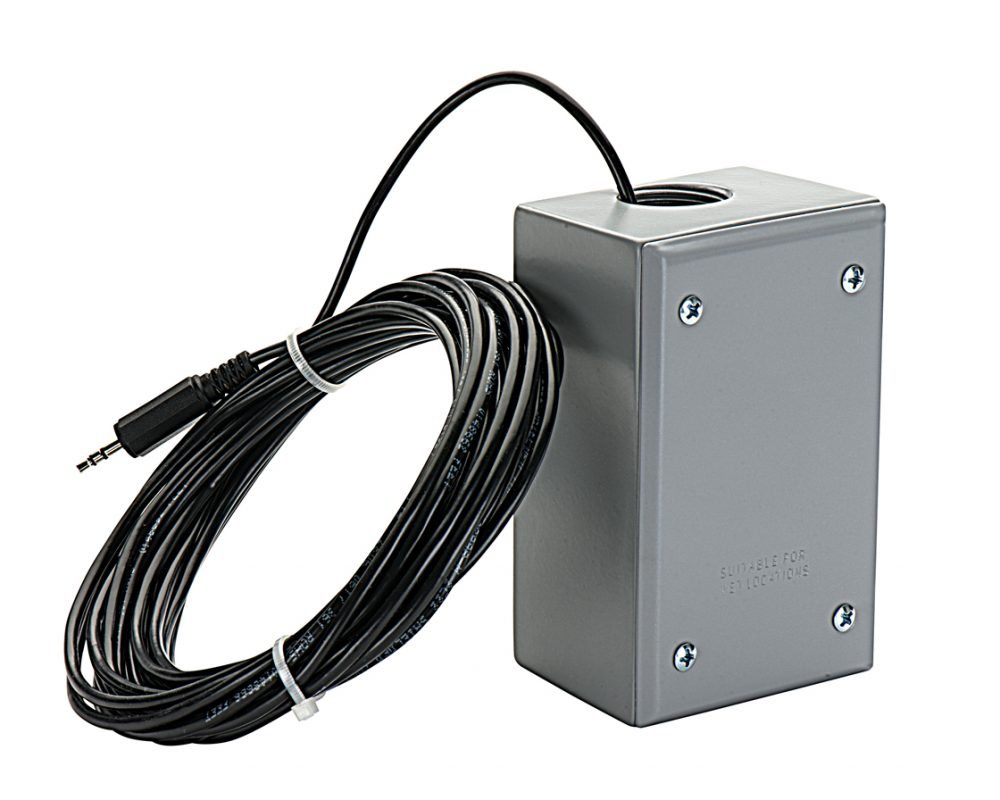

Louroe Model E-ML is an omni-directional, mic level low impedance, electret condenser microphones. It can pick up normal sounds approximately 15’ away if mounted to a wall, or within a 30’ circle if ceiling mounted. The microphone is mounted inside a single Bell Box for outdoor of in a moist environment. The unit comes with with pre-made 20’ cable with stereo plug for direct connect to the audio input of the IP camera.

Application

The Model E-ML Microphones can be used in situations such as:

  • Parking structures
  • Secured walkways
  • Maintenance yards
  • Building peripherals
  • Entry gates
  • Gas Stations
  • Any area requiring protection from weather

Features

  • Easy connection to an IP camera
  • Microphone can pick up normal sounds 15' away
  • Mounts inside a standard single gang Bell Box for surface mounting
  • May be located up to 20' from IP Camera or pre-amp.
  • Used in moist or damp environment
Part number:
LE-775
Price:
Sensitivity -45 dB/pa
Frequency response 50 Hz to 8 kHz
Output Impedance 1kΩ
Current drain 0.8mA
Supply voltage 1.8Vdc to 4.5Vdc
Microphone faceplate Stainless steel
Dimensions 2 3/4” W x 4 1/2” H
Weight 15.5 oz
Shipping Weight 1 lb
Name
Description
Size
Downloads
File
Instructions
0.2mb
File
Specifications
0.2mb
