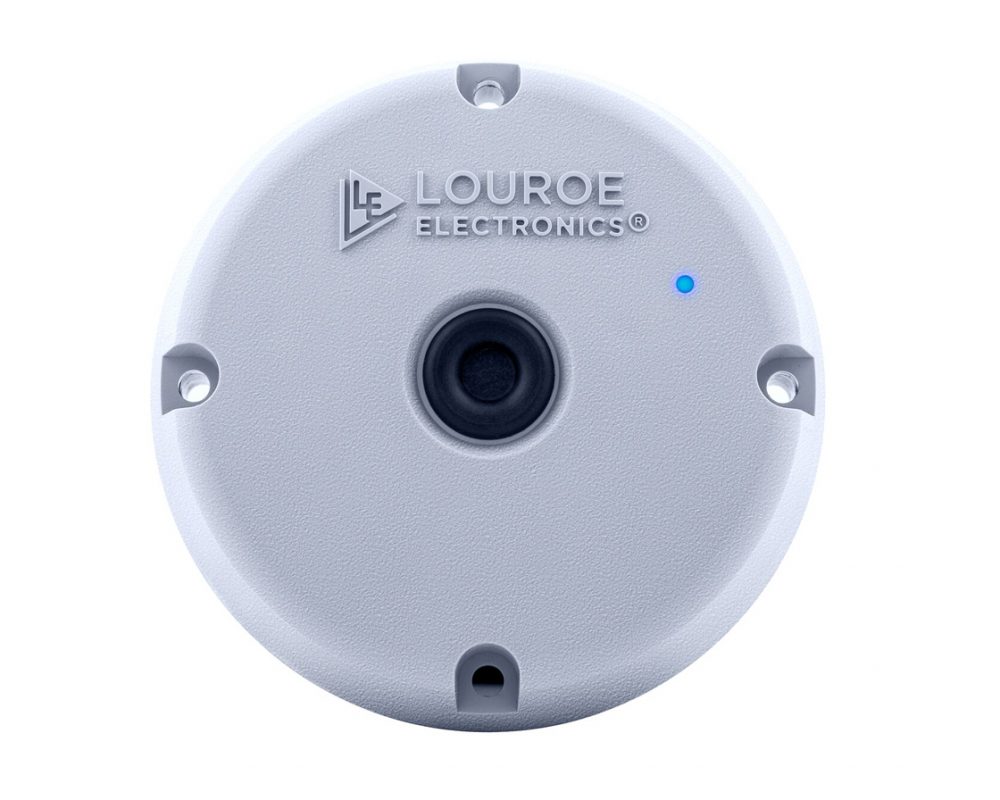

LOUROE - LE-870 - Ceiling Mount Digital IP Microhpone w/ Audio Analytics Capability

The all-new Digifact A is an IP microphone with audio analytics capabilities and an onboard processor to meet today’s security needs. The Digifact features a quad-core processor that streams audio over multiple industry standards including Real Time Streaming Protocol (RTSP) and can be easily connected to leading VMS platforms. It incorporates audio and signal processing for clear audio capture quality and a wide dynamic range.

The microphone's decibel level threshold alarming can create alarms based on specific dB levels and trigger relay outputs to cameras or other equipment making it capable of operating independently or as part of a larger security solution. When utilized with audio analytics, the Digifact A can automatically detect gunshots, aggression, car alarms and/or glass breakage.

Market

Ideal for education, law enforcement, hospitals, banks and other commercial applications

Features

  • PoE connectivity (IEE802.3af compliant)
  • Audio Analytics Capabilities
  • Sound decibel level threshold alarming
  • Digital alarm output ports

Compatible With

  • API integration with Video Management Systems
  • Audio Analytics including Gunshot and Aggression detection
  • Existing security systems through RTSP
Part number:
LE-870
Price:
Audio
Audio Streaming One-Way
Pick Up Pattern Omni-directional, 30' diameter circle
Sensitivity - 45 dBV/Pa, 1 Pa = 94 dB SPL
Frequency Response 50 Hz to 15 kHz
Network
Supported protocols IPv4, HTTP, RTSP, RTP, TCP, SSH
Security Password protection, user level access
General
Enclosure High Impact Anti-Static ABS
Power Power over Ethernet IEEE802.3af Optional external 5V DC 2A
Memory 512 MB RAM
Event Trigger Audio analytics, decibel threshold
Event Actions TCP notification, external output activation, pre and post-alarm audio recording to Network Attached Storage (NAS)
Connectors Female RJ45 for 10BASE-T/100BASETX PoE; 5-pin header for four outputs (5V DC), max load 100mA; 2-pin header for 5V DC 2A input
Name
Description
Size
Downloads
File
Instructions
0.4mb
File
Specifications
1.3mb
