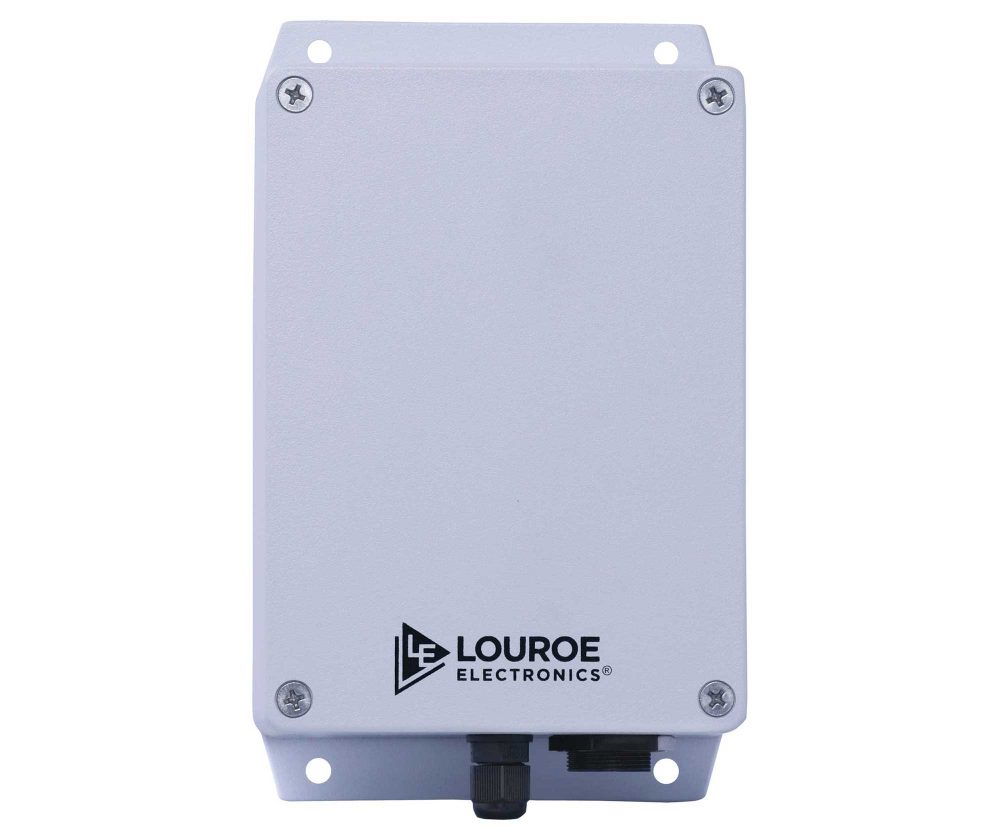

LOUROE - LE-875 - Outdoor Digital IP Microphone w/ Audio Analytics Capability
The Digifact E is a networked audio monitoring and streaming device which streams audio over several industry standard RTP protocols. The wide dynamic range microphone supports a wide frequency response capable of picking up low and high frequency sounds. The device features a robust quad-core microprocessor that has the capability of integrating signal processing applications, audio enhancements and analytic applications. Analytic applications can be added to the device to detect and report events such as:
The microphone’s decibel level threshold alarming can create alarms based on specific dB levels and trigger relay outputs to cameras or other equipment making it capable of operating independently or as part of a larger security solution. When utilized with audio analytics, the Digifact E can automatically detect gunshots, aggression, car alarms and/or glass breakage.
- Aggression/Duress
- Gunshots/Explosions
- Breaking Glass
- Car/Panic Alarms
- Smart IP microphone
- Designed for outdoor applications
- PoE connectivity (IEEE802.3af compliant)
- Audio Analytics Capabilities
- Sound decibel level threshold alarming
- Digital alarm output ports
| Audio | |
| Audio Streaming | One-way |
| Audio Compression: | PCM,16 bits linear G.711 a-Law G.711 mu-Law G.726-40 AAC |
| Sensitivity | -45 dBV/Pa, 1 Pa = 94 dB SPL |
| Frequency Response: | 50 Hz to 15 kHz |
| Network | |
| Security: | Password protection, user level access (admin and operator) |
| Supported protocols: | |
| Specifications (Microphone) | |
| Application programming: | Open API for software integration, specifications at www.louroe.com |
| interface Analytics: | Louroe/SI audio analytics, audio level (dB) alarm |
| Event triggers: | Analytics, audio level |
| Event actions: | TCP notification, external output activation, pre and post-alarm audio recording to Network Attached Storage (NAS) |
| System Integration | |
| Enclosure | Aluminum Alloy NEMA Enclosure |
| Power | Power over Ethernet IEEE802.3af external 5V DC 2A (2-pin header) |
| Memory | 512 MB RAM |
| Event triggers | Audio analytics, decibel threshold |
| Event actions | TCP notification, external output activation, pre and post-alarm audio recording to Network Attached Storage (NAS) |
| General | |
| Connectors: | Female RJ45 for 10BASE-T/100BASE-TX PoE; 5-pin header for four outputs (5V DC), max load 100mA; 2-pin header for 5V DC 2A input |
| Operating Conditions: | -20 C to 50 C Humidity 10-85% RH |
| Storage Conditions | -30 C to 60 C |
| Dimensions | 4.7 in (119mm) diameter x 2.0 in (50.8mm) height |
| Weight | 9.0 oz |
| Packaged weight | 1.0 lb |
| Included accessories: | User manual, 5-pin and 2-pin headers |
