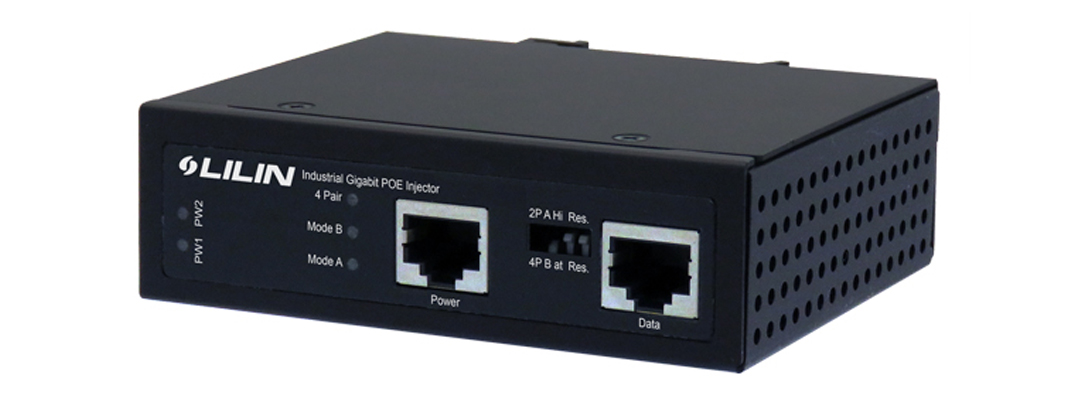

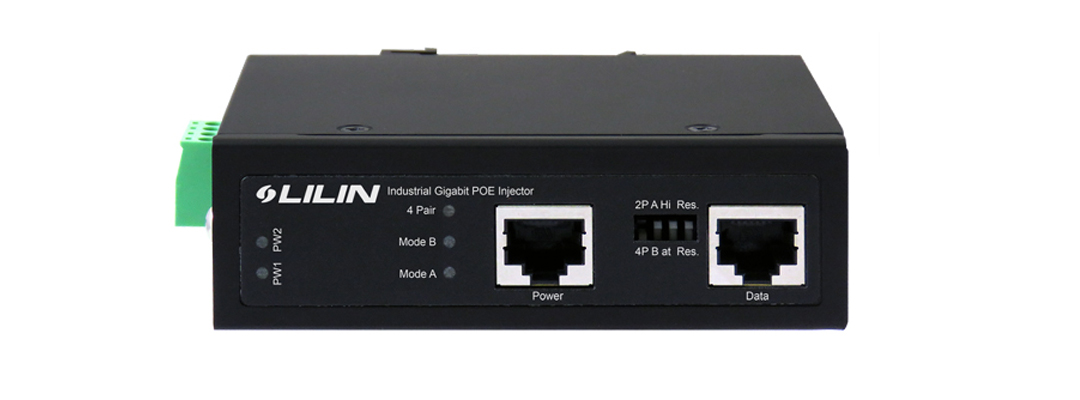

Lilin - PI6014 - Industrial Gigabit POE Injector
This Super Voltage Booster --- 60 Watts, high power Single port industrial POE Injector is equipped with our high efficiency ColdDesign technology which allows low input voltage, such as 24/48/56 VDC be boost up to 55VDC to provide 60Watts to 72 watts power to your security equipment by a 4 - pin selectable dip switch . The ColdDesign technology will not only boost up Input Voltage , also reduce the excessive heat problem to a minimum . It accepts the input voltage as low as 24/48 VDC to boost up to 55V to meet IEEE802.3af/at required voltage. This built-in 4 pin dip switches are able to select POE for Mode B or Mode A , to select standard IEEE802.3at 30Watts or high power 36Watts, and to select 2 pair or 4 pair for 30/36Watts or 60/72Watts power output. It is being rigorously tested for your Security, Transportation and Telco application.
Features:
- Industrial Gigabit POE Injector with voltage booster
- 60 Watts, selectable Mode A and Mode B
- Accept 24/48/56 VDC to boost up voltage to 55V for 60/72 Watts application
- 1x10/100/1000M TX PSE (802.3af/at POE+) TX, 1x10/100/1000M TX
- Operating temp: -40°C to +75°C
| Model | PI6014 |
| Protocols | CSMA/CD |
| IEEE Standard | IEEE 802.3 10Base-T Ethernet |
| IEEE Standard | IEEE 802.3u 100Base-TX Fast Ethernet |
| IEEE Standard | IEEE 802.3ab 1000Base-T Gigabit Ethernet |
| IEEE Standard | IEEE802.3af for POE |
| IEEE Standard | IEEE802.3at for POE+ |
| Network connector | 1xRJ-45 10/100/1000BaseT(X) Data |
| Network connector | 1xRJ-45 10/100/1000BaseT(X) Data with POE Output power |
| Housing design | Rugged Metal, IP30 Protection |
| Power Consumption | 1 W@24/48 VDC full load, Without POE |
| Network Cable | UTP/STP above Cat.5e Cable |
| Network Cable | EIA/TIA-568 10-ohm (100m) |
| LEDs | PW1(power 1) Green: ON- power good, OFF-power failed。PW2(power 2) Green: ON- power good, OFF-power failed |
| LEDs | Mode A : ON- End Span PD detected。Mode B: ON – Mid Span PD detected |
| LEDs | 4 Pair: ON – 60W PSE in active mode. OFF – 30W PSE in active mode |
| POE power | Maximum POE power 72watts at 24/48VDC input |
| Reserve polarity protection & Overload current protection | Present |
| Removable terminal block | Provide 4 pin terminal block |
| Removable terminal block | Wire range: 0.34mm^2 to 2.5mm^2 |
| Removable terminal block | Solid wire (AWG):12-24/14-22 |
| Removable terminal block | Stranded wire(AWG): 12-24/14-22 |
| Removable terminal block | Torque:5lb-In/0.5Nm/0.56Nm |
| Removable terminal block | Wire Strip length: 7-8mm |
| MTBF (mean time between failure) | 510,304 hrs ( MIL-HDBK-217F) at 25°C |
| EN55022/24 (Certifications) | ITE equipment |
| EN55011 (Certifications) | Industrial, Scientific and Medical (ISM) equipment |
| Safety (Certifications) | IEC EN60950-1 |
| EMC/EMS (Certifications) | CE、FCC、VCCI |
| (Certifications) EMI | FCC Part 15 Subpart B Class A，CE EN 55022 Class A |
| EN 50155 / EN 60068-2-6 (Certifications) | Vibration |
| EN 50155 /EN 60068-2-27 (Certifications) | Shock |
| EN 50155 / EN 60068-2-32 (Certifications) | Free Fall |
| EN50121-3-2 (Certifications) | Railway Applications – Electromagnetic Compatibility – Part 3-2 Rolling Stock - Apparatus |
| EN50121-4 (Certifications) | Railway Applications – Electromagnetic Compatibility – Part4 Emissions and Immunity of the Signaling and Telecommunications Apparatus |
| Installation | DIN Rail mounting and Wall Mounting |
| DIP switch | To select 2 pair (30/36Watts) or 4 pair (60/72Watts)。To select Mode A, or Mode B |
| DIP switch | To select standard IEEE802.3at 30watts or high power POE 36Watts |
| PoE Pin Assignment | Default: Mode A (End Span) V+, V+, V-, V- for pin 1, 2, 3, 6。DIP switch setting can be changed to Mode B, V+, V+, V-, V- for pin 4, 5, 7, 8 |
| Operating humidity | 5% to 95% (Non-condensing) |
| Operating temperature | -40℃〜75℃ fully tested |
| Storage temperature | -40℃~85℃ |
| Dimensions | 103.5mmx32mmx81.5mm |
| Power Supply | 2 Redundant power source, 18V〜56V VDC Power Input |
