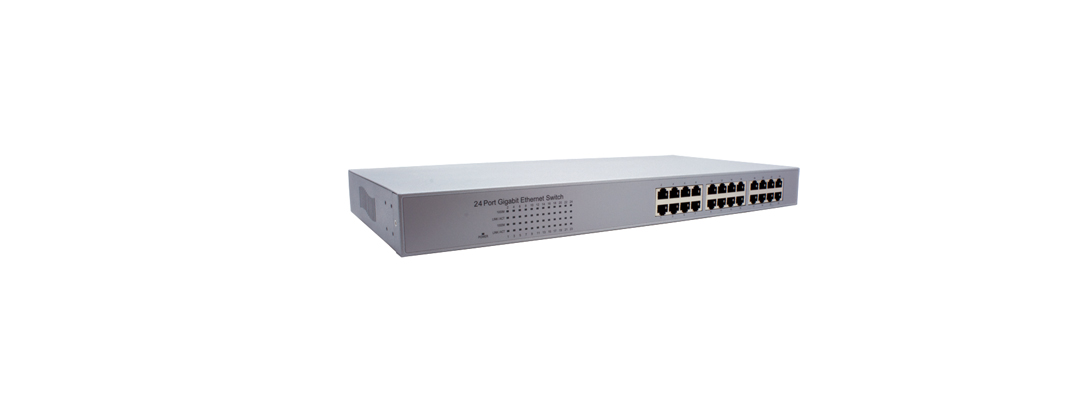

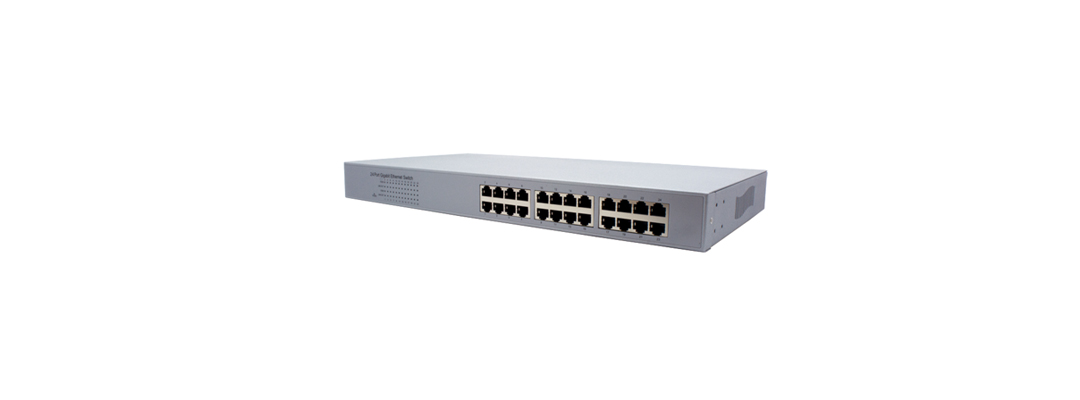

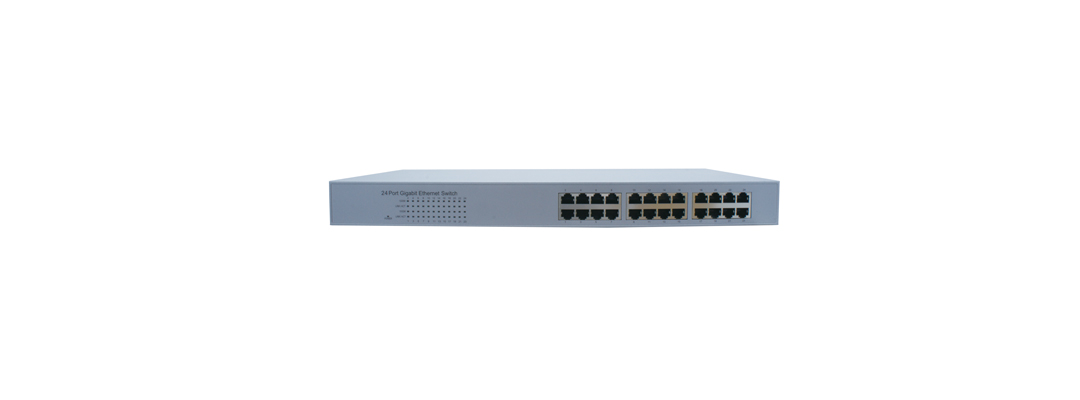

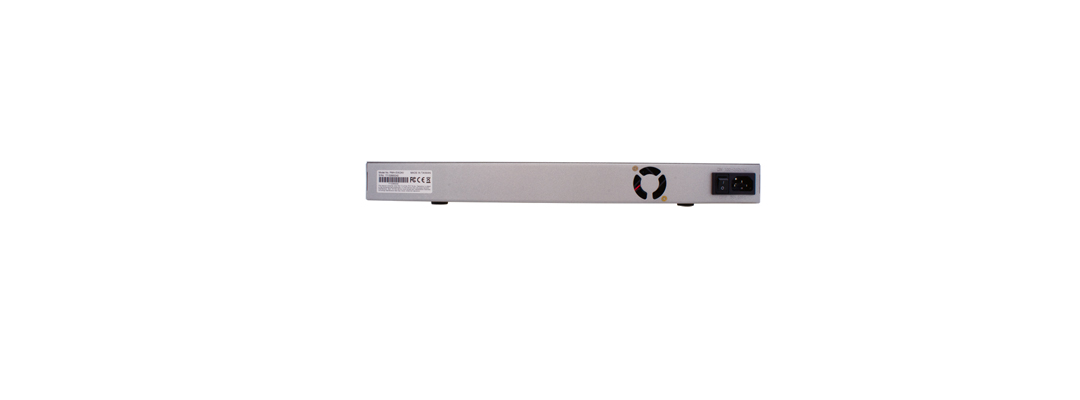

Lilin - PMH-EW24V - 24 Ports Gigabit Ethernet Switch
Part number:
PMH-EW24V
Price:
24 Ports Gigabit Ethernet Switch
Features:
- Complies with the IEEE802.3 Ethernet,IEEE802.3u Fast Ethernet and IEEE 802.3ab Gigabit Ethernet Standards
- 24 Port 10/100/1000M (Auto-negotiation) Switch
- 19” rack-mount size
- Non-blocking & Non-head-of-line blocking full wire speed forwarding
- Store-and-forward operation support
- Supports 9.6 KB JUMBO packet
- Provides 8K MAC address entry
- Supports broadcast storm filtering
- All ports provide Auto-Negotiation and Auto-MDI/ MDI-X functions
- Supports flow control: Back pressure for Half-duplex and IEEE 802.3x for Full-duplex mode
- Smart plug & play
| Model | PMH-EW24V |
| Standards | IEEE 802.3 10BaseT / IEEE 802.3u 100BaseTX / IEEE 802.3ab 1000BaseT / IEEE 802.3x Flow control |
| Filtering/Forwarding Rates | s 1000Mbps port – 1,488,000pps / 100Mbps port – 148,800pps / 10Mbps – 14,880pps |
| Transmission Media | 10BaseT Cat. 3, 4, 5 UTP/STP / 100BaseTX Cat. 5 UTP/ STP / 1000BaseT Cat. 5E UTP/STP |
| LED Indicators | Per Port: LINK/ACT, 1000M / Per Unit: Power |
| Power Requirement | 90 – 260V/AC, 50 – 60Hz |
| Power Consumption" | 20 Watts (Max) |
| Dimensions | 440 × 220 × 44 mm (L x W x H) |
| Weight | 2.9 kg /3 kg |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -20 to 90°C |
| Humidity | 10 to 90% RH (non-condensing) |
| Certifications | FCC Class B, CE |
| FE/GE | GE |
| RJ-45 Port | 24 |
| Buffer Memory | 500 Kbits |
| Switching Capacity | 48Gbps |
