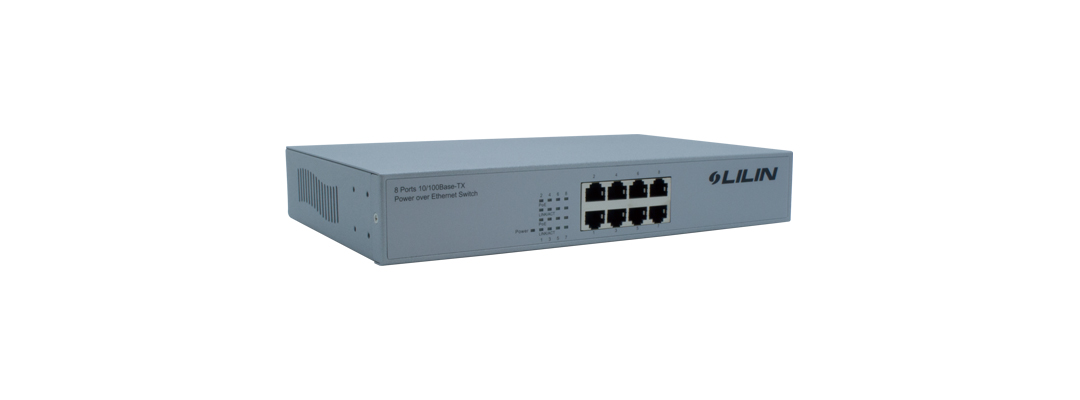

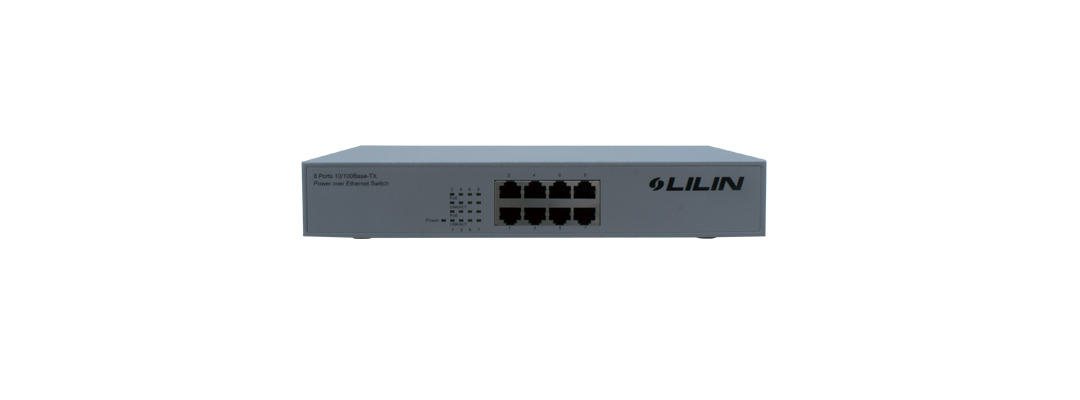

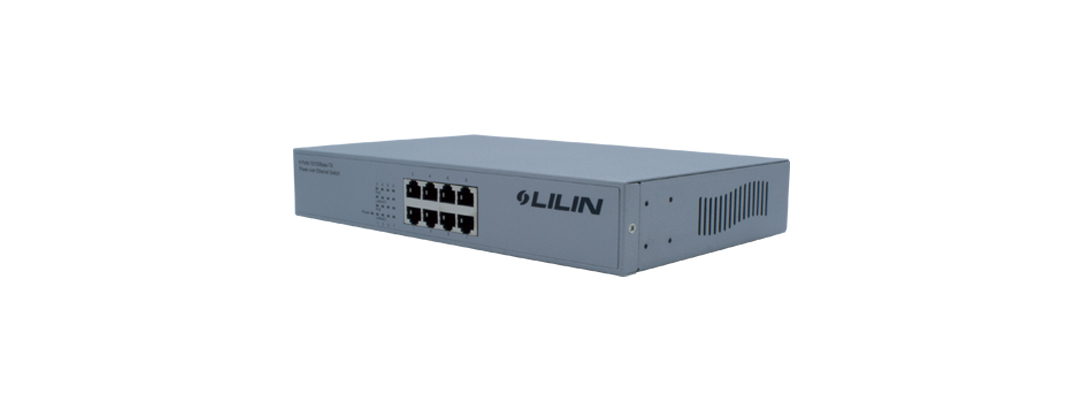

Lilin - PMH-POE08130WAT - 8 Port PoE Fast Ethernet Switch
Part number:
PMH-POE08130WAT
Price:
8 Port PoE Fast Ethernet Switch
Features:
- 8 Port 10/100M (Auto-negotiation) Switch
- 8 PSE/PoE function ports
- Supporting the power Max. 15.4 W for each PSE/PoE port
- 11” Desktop size with metal case
- Can be installed in a 19” cabinet by rack-mount kits
- Auto-learn of networking configurations
- Auto-detect full/half-duplex modes for any port
- Dedicated full-duplex 200Mbps bandwidth
- Store-and-Forward switching methods
- IEEE 802.3x flow control for full-duplex and back-pressure flow control for half-duplex
- Non-blocking & Non-head-of-line blocking full wire speed forwarding
- Auto-MDI/MDI-X function for any port
- Smart plug & play
| Model | PMH-POE08130WAT |
| Standards | IEEE 802.3af / IEEE 802.3 10BaseT / IEEE 802.3u 100BaseTX / IEEE 802.3x Flow control |
| Filtering/Forwarding Rates | 100Mbps port – 148,800pps 10Mbps – 14,880pps" |
| Transmission Media | 10BaseT Cat. 3, 4, 5 UTP/STP 100BaseTX Cat. 5 UTP/STP" |
| LED Indicators | Per Port: LINK/ACT, PoE ACT/Status Per Unit: Power" |
| Power Input | 100 – 240V/AC, 50 – 60Hz |
| Power Output | 48V/DC Per Port Output –15.4 W Max Per Port 8 Ports at Full 15.4 W Output Supported |
| Dimensions | 266 × 160 × 44 mm (L x W x H) |
| Weight | 1.6 kg |
| Operating Temperature | 0 to 55°C |
| Storage Temperature | -20 to 90°C |
| Humidity | 10 to 90% RH (non-condensing) |
| Certifications | FCC Class A, CE |
