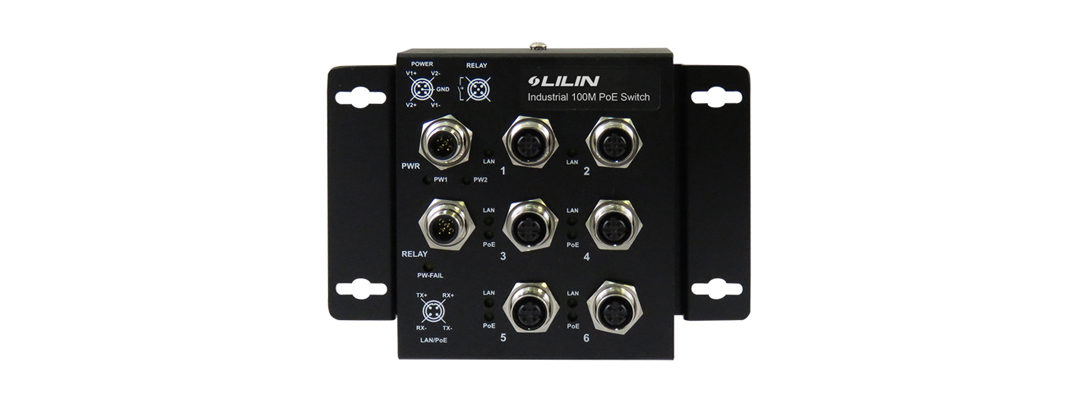

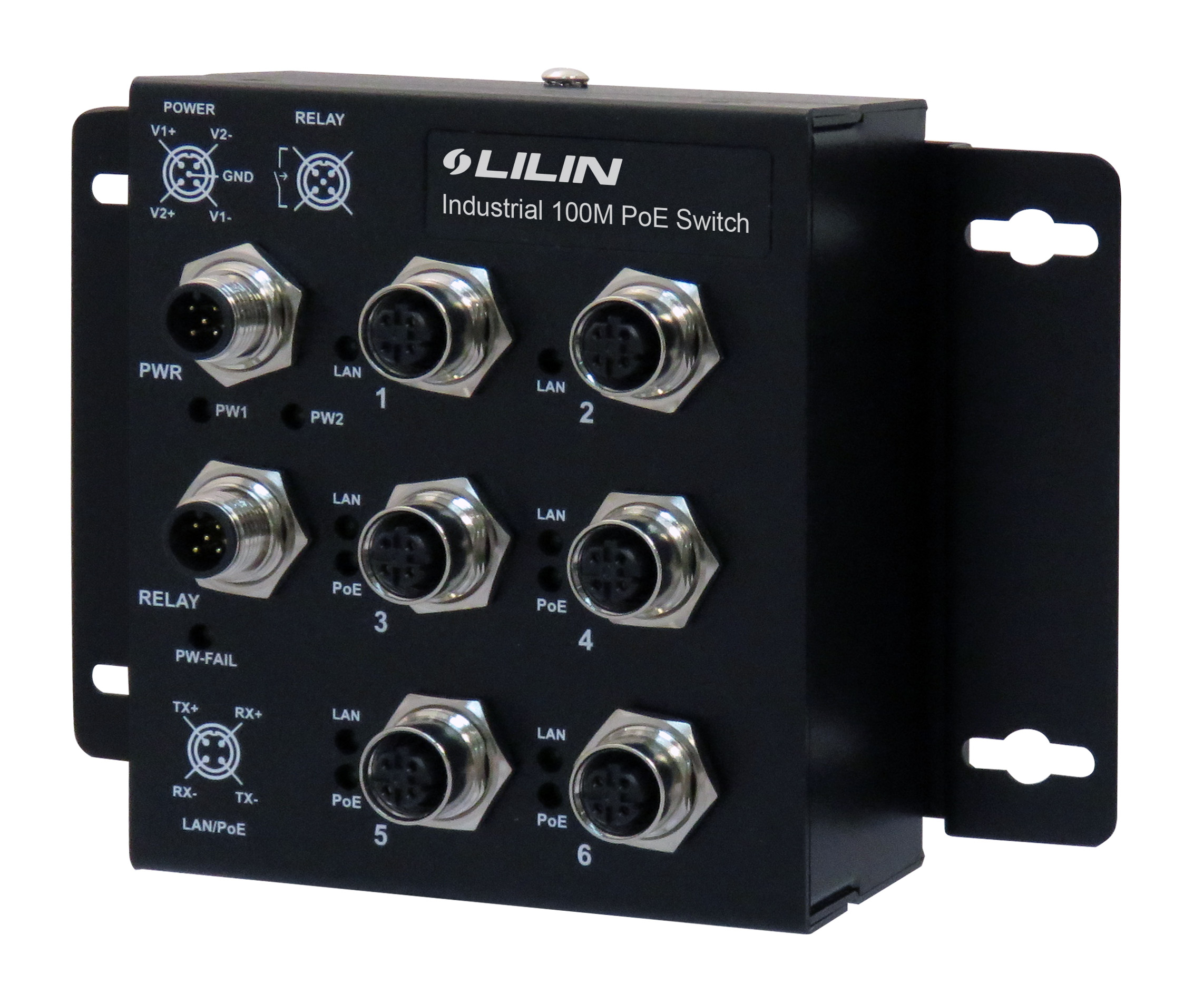

Lilin - PS3064DM - M12 POE Switch 24VDC
Part number:
PS3064DM
Price:
This rugged designed high power 6 port industrial POE+ Injector is equipped with our high efficiency ColdDesign technology which accept input voltage from 24-56VDC to boost voltage to 55vdc to power up PDs in moving train or vehicle application and to reduce the excessive heat problem to a minimum. It is equipped with 4 port 30Watts 10/100M M12 PSE to meet IEEE802.3af/at 30Watts per port and 2 M12 uplink ports for your remote device. It is being rigorously tested for your Security, Transportation and Telco application.
Features:
- Rugged Industrial 6 port 10/100M POE switch
- With 4 x 10/100M M12 PSE (IEEE802.af/at 30W)+ 2x10/100M M12 (data)
- Power input 24 -56 VDC with voltage booster
- Operating temp: -40°C to +75°C
| Model | PS3064DM |
| Protocols | CSMA/CD |
| IEEE Standard | IEEE 802.3 10Base-T Ethernet with M12 connector / IEEE802.3at for POE+ |
| IEEE Standard | IEEE 802.3u 100Base-TX Fast Ethernet with M12 connector |
| IEEE Standard | IEEE802.3x Flow Control and Back Pressure / IEEE802.3af for POE |
| MAC address table size | 1K |
| Housing design | Rugged Metal ,IP40 Protection |
| Network Interface/Ethernet | 6xM12 10/100BaseT(X) auto negotiation。4 x M12 10/100M POE+ 802.3at/af PSE port。2 x M12 10/100M port。Auto MDI/MDI-X function, Full/Half duplex |
| Power Consumption | 3.76W@48 VDC full load, Without POE / Max 126W @ 24VDC full load with POE |
| Network Cable | UTP/STP above Cat.5e Cable |
| Network Cable | EIA/TIA-568 10-ohm (100m) |
| Switch Architecture | Back-plane (Switching Fabric): 12Gbps |
| Packet Buffer Size | 1M |
| Data Processing | Store and Forward |
| LEDs | M12 PW1(Power 1) Green, M12 PW2(Power 2) Green, SW( Relay) Amber, |
| LEDs | M12 port: Green --- LNK (Link/Active), Amber --- POE link |
| POE power | Input Voltage 24VDC-56VDC |
| Reserve polarity protection & Overload current protection | Present |
| MTBF (mean time between failure) | 510,304 hrs ( MIL-HDBK-217F) at 25°C |
| EN55022/24 (Certifications) | ITE equipment |
| EN55011 (Certifications) | Industrial, Scientific and Medical (ISM) equipment |
| Safety (Certifications) | IEC EN60950-1 |
| EMC/EMS (Certifications) | CE, FCC, VCCI |
| (Certifications) EMI | FCC Part 15 Subpart B Class A, CE EN 55022 Class A |
| EN 50155 / EN 60068-2-6 (Certifications) | Vibration |
| EN 50155 /EN 60068-2-27 (Certifications) | Shock |
| EN 50155 / EN 60068-2-32 (Certifications) | Free Fall |
| Alarm Relay Contact | Relay outputs with current carrying capacity of 1 A @24VDC, Relay in open circuit mode when 2 powers are connected. In short circuit mode when only one power supply is connected |
| Installation | Wall Mounting |
| Flow Control | IEEE 802.3x Flow Control and Back Pressure |
| Operating humidity | 5% to 95% (Non-condensing) |
| Operating temperature | -40℃〜75℃ fully tested |
| Storage temperature | -40℃〜85℃ |
| Dimensions | 163cm x 100cm x 56.2mm |
| Power Supply | Redundant Dual DC24V-56V Power Input |
