Luminys - K56-8D1A2 - 8 Channel 5MP LumiDeterrent IP Bundle
• 4K NVR With 2 TB HDD
• Eight (8) Channels With One (1) SATA Port
• HDMI and VGA Output
• PoE Plug-and-Play
• 5MP Turret Housing
• Camera Compatible With R3 Recorders Only
• 2.8 mm Fixed Lens
• LumiLuxLite — IR and White-Light LEDs
• iMD
• NDAA Compliant
• FCC
• ONVIF
| Camera | Luminys Series N3 Series (Starter) |
| Image Sensor | 1/2.7-in. 5MP Progressive CMOS |
| Maximum Resolution | 2880 x 1620 |
| Minimum Illumination | Color: 0.01 Lux at F1.6 (AGC On) Black/White: 0 Lux With IR Light On |
| Number of Illuminators | Four (4) White-Light LEDs, Four (4) IR LEDs, Supports LumiLuxLite |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance | IR: Up to 30.0 m (98.4 ft) White Light: Up to 20.0 m (65.6 ft) |
| Electronic Shutter Speed | Automatic, Manual 1/5 s to 1/20,000 s |
| Installation Angle | Pan: 0° to 355° Rotation: 0° to 360° Tilt: 0° to 80° |
| S/N Ratio | > 38 dB |
| Lens Iris Type | Fixed |
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperture | F1.6 |
| Field of View | Horizontal: 108.3° Vertical: 59.9° Diagonal: 126.8° |
| Video Compression | H.265, H.264 |
| Standard Codec | Supported |
| Stream Capability | Two (2) |
| Resolution | 2880 x 1620, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, D1 (704 x 576), VGA (640 x 480), CIF (352 x 288) |
| Maximum Frame Rate | Main Stream: 2880 x 1620 at 25 fps Sub Stream: D1 at 25 fps |
| Video Bit Rate | H.265: 128 kbps to 6,144 kbps H.264: 64 kbps to 1,024 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Automatic (ICR), Color, Black and White |
| Light Balancing | Digital Wide Dynamic Range (DWDR), BLC, HLC |
| Image Angle | 0°/180° |
| Mirror Rotation | Supported |
| Privacy Masking | Four (4) Zones |
| Analytics³ | Intelligent Motion Detection Supported With Alarms for Vehicles and Humans |
| Audio Compression | G.711U |
| Audio Interface | Input: Built-In Microphone Output: Built-In Speaker |
| Alarm Event | Motion Detection, iMD |
| Network Interface | RJ-45 (10/100 Base-T) |
| Network Protocol | HTTP, TCP/IP, IPv4, DHCP, NTP |
| Interoperability | ONVIF (Profile S), SDK |
| Browser | Chrome, Firefox, Edge |
| Storage | FTP, SFTP, Micro SD Card (Max. 128 GB) |
| Power Supply | 12 VDC (-15% to +25%), PoE (802.3af) |
| Power Consumption | Maximum (White-Light On): 8.5 W Normal (IR Off): 2.0 W |
| Net Weight | 0.5 kg (1.0 lb) |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Operating Humidity | < 90% RH |
| Protection Ratings | IP66 |
| Product Dimensions | φ 111.0 mm × 100.8 mm (φ 4.4 in. × 4.0 in.) |
| Material | Metal |
| Certifications | FCC, IC |
| Compliance | NDAA |

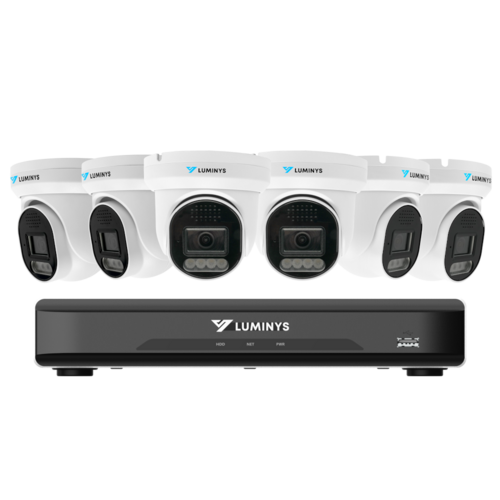

The K56-8D1A2 is a comprehensive security solution. It contains one Luminys R3 series NVR and six 5MP network cameras. This smartly designed kit is highly cost-effective, offering a curated selection of technologies and features to provide high-quality security without any unnecessary or complicated add-ons. As all the devices are part of the powerful Luminys security ecosystem, integration between the cameras and NVR is seamless, providing the highest levels of compatibility and functionality.
