Luminys - K5T-16L2A4 - 16 Channel 5MP LumiLuxLite IP Bundle

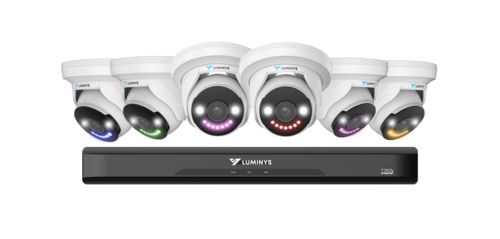

The K86-8B2A4 is a full-featured security solution. It contains one (1) Luminys R3 series NVR and six (6) 8MP network cameras. This smartly-designed kit is highly cost-effective and designed with a curated selection of technologies and features to provide high-quality security without unnecessary or complicated add-ons. With all devices part of the powerful Luminys security ecosystem, integration between the cameras and NVR is seamless and provides the highest levels of compatability and functionality.
Key Technologies:
R3 series NVRs are compatible with the LumiViewer desktop platform and mobile app. LumiViewer streamlines security management by providing real-time surveillance, playback of historical footage, and instant alarm notifications. With features like device sharing, an alarm hub for safety alerts, visual intercom for video calls and door control, and remote access management, LumiViewer ensures comprehensive and efficient monitoring.

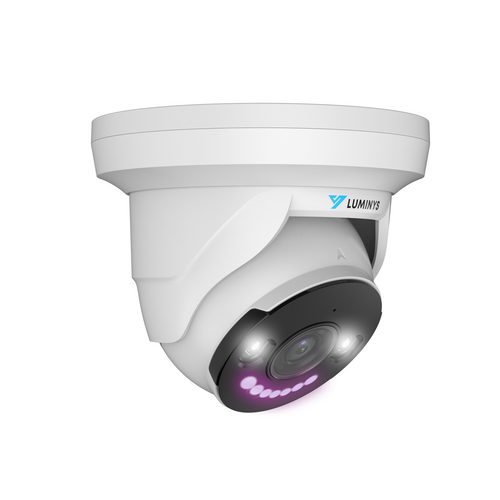

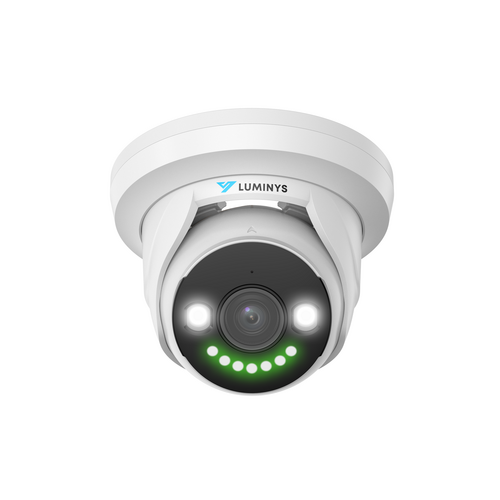

LumiLightBand technology activates a camera’s light strip according to a schedule, event trigger, or motion detection. When the camera’s sensor detects motion, the semi-ring of colorful LEDs turn red to deter intruders. Once motion stops, the colorful LEDs return to their normal state. The lights come in eight (8) different colors and can be set to keep steady, wave, or flash for a specific amount of time. LumiLightBand cameras offer three low-light modes: covert IR-only mode, nighttime white-light deterrent LEDs, and motion-activated IR and LED dual-illumination. The brightness and intensity of the white-light LEDs can be remotely adjusted, preventing unnecessary light pollution.
Key Features:
- 8CH 8MP NVR with Dual SATA, 4TB HDD
- 6 × 8MP LumiLightBand Turret Cameras
- iMD Included
- 1.5U Form Factor, 2 SATA, Audio, Alarm Support
- 4K NVR With 4 TB HDD
- Eight (8) Channels With Two (2) SATA Ports
- HDMI and VGA Output
- PoE Plug-and-Play
- 8MP Turret Housing
- 2.8 mm Fixed Lens
- LumiLightBand
- Video Content Analytics: Line Crossing and
- Intrusion
- iMD
Certifications and Compliance:
- NDAA Compliant
- FCC
- ONVIF
| NVR Specifications - R32-16PA4 R3 Starter Series NVR, 4K 16 Channel, 16 PoE With 4 TB HDDR3 Starter Series NVR, 4K 16 Channel, 16 PoE With 4 TB HDD | |
| Video Input | 16 Channels |
| Recording Resolutions | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Output Resolutions (HDMI) | 4K (3840 × 2160), 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Output Resolutions (VGA) | 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Live View/Playback Resolutions | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Decoding Format | H.265, H.264, H.264H, H.264B, MJPEG |
| Decoding Capability | Two (2) Channel: 8MP at 30 fps; Eight (8) Channel: 1080p at 30 fps |
| Synchronous Playback | 1, 4, 8, 9, 16 views |
| Supported Analytics by N3T-5KA2 | Intelligent Motion Detection (12 Channels) |
| Smart Search | Search by Target Classification and Event Type |
| SATA | Two (2) Ports |
| HDD | 4 TB Pre-Installed HDD (Max. 10 TB per HDD) |
| Network Port | One (1) RJ-45 Self-Adaptive Ethernet (10/100/1000 Mbps) |
| PoE Ports | 16 Ports (RJ-45 Self-Adaptive Ethernet 10/100 Mbps) |
| USB Ports | Front Panel: One (1) USB 2.0; Rear Panel: One (1) USB 2.0 |
| Alarm | Input: Four (4) Channels; Output: Two (2) Channels |
| Audio | Input: One (1) RCA Channel; Output: One (1) RCA Channel |
| Network Bandwidth | Incoming/Recording: 160 Mbps; Outgoing: 60 Mbps |
| Supported Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS |
| Interoperability | ONVIF, RTSP |
| PoE Standard | IEEE 802.3 af/at |
| Client | LumiViewer, LumiViewer Mobile App, LumiCloud1 |
| Power Supply | 100-240 V, 47-63 Hz, 3.5 A |
| Power Consumption | < 10 W (Without HDD); PoE: 115 W (Max. Output per Port: 25.5 W) |
| Weight | 2.6 kg (5.8 lb) Without HDD |
| Operating Temperature | -10 °C to 55 °C (10 °F to 131 °F), 10% to 93% |
| Dimensions (W × L × H) | 372.0 mm × 325.8 mm × 43.7 mm (14.7 in. × 12.8 in. × 1.7 in.) |
| Certifications | FCC |
| Compliance | NDAA |

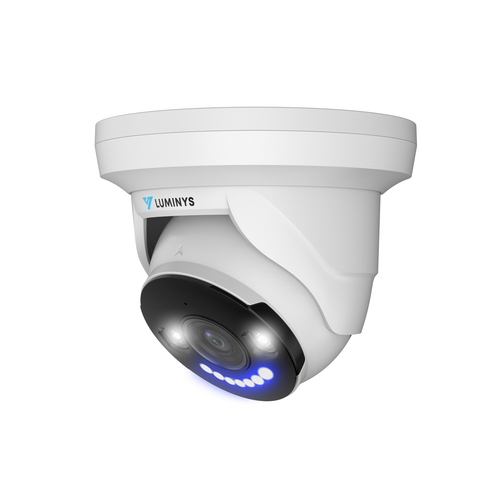

| Camera Specifications - N3T-5KA2 (Kit Only)2 5MP LumiLuxLite Fixed Turret Network Camera (2.8 mm)5MP LumiLuxLite Fixed Turret Network Camera (2.8 mm | |
| Camera Model | Luminys Series N3 Series (Starter) |
| Image Sensor | 1/2.7-in. 5MP Progressive CMOS |
| Maximum Resolution | 2880 × 1620 |
| Minimum Illumination (Color) | 0.01 Lux at F1.6 (AGC On) |
| Minimum Illumination (B/W) | 0 Lux With IR Light On |
| Number of Illuminators | Four (4) White-Light LEDs, Four (4) IR LEDs, Supports LumiLuxLite |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance (IR) | Up to 30.0 m (98.4 ft) |
| Maximum Illumination Distance (White Light) | Up to 20.0 m (65.6 ft) |
| Electronic Shutter Speed | Automatic, Manual (1/5 s to 1/20,000 s) |
| Installation Angle (Pan) | 0° to 355° |
| Installation Angle (Rotation) | 0° to 360° |
| Installation Angle (Tilt) | 0° to 80° |
| S/N Ratio | > 38 dB |
| Lens Iris Type | Fixed |
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperture | F1.6 |
| Field of View (Horizontal) | 108.3° |
| Field of View (Vertical) | 59.9° |
| Field of View (Diagonal) | 126.8° |
| Video Compression | H.265, H.264 |
| Codec Supported | Standard Codec Supported |
| Stream Capability | Two (2) |
| Resolutions | 2880 × 1620, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720, D1 (704 × 576), VGA (640 × 480), CIF (352 × 288) |
| Maximum Frame Rate (Main Stream) | 2880 × 1620 at 25 fps |
| Maximum Frame Rate (Sub Stream) | D1 at 25 fps |
| Video Bit Rate (H.265) | 128 kbps to 6,144 kbps |
| Video Bit Rate (H.264) | 64 kbps to 1,024 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night Mode | Automatic (ICR), Color, B/W |
| Light Balancing | DWDR, BLC, HLC |
| Image Angle | 0°/180° |
| Mirror Rotation | Supported |
| Privacy Masking | Four (4) Zones |
| Analytics | Intelligent Motion Detection with Alarms for Vehicles and Humans |
| Audio Compression | G.711U |
| Audio Interface | Input: Built-In Microphone; Output: Built-In Speaker |
| Alarm Events | Motion Detection, iMD |
| Network Interface | RJ-45 (10/100 Base-T) |
| Protocols | HTTP, TCP/IP, IPv4, DHCP, NTP |
| Interoperability | ONVIF (Profile S), SDK |
| Browser Support | Chrome, Firefox, Edge |
| Storage Options | FTP, SFTP, Micro SD Card (Max. 128 GB) |
| Power Supply | 12 VDC (-15% to +25%), PoE (802.3af) |
| Power Consumption | Max (White-Light On): 8.5 W; Normal (IR Off): 2.0 W |
| Net Weight | 0.5 kg (1.0 lb) |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Operating Humidity | < 90% RH |
| Protection Ratings | IP66 |
| Product Dimensions | φ 111.0 mm × 100.8 mm (φ 4.4 in. × 4.0 in.) |
| Material | Metal |
| Certifications | FCC, IC |
| Compliance | NDAA |
