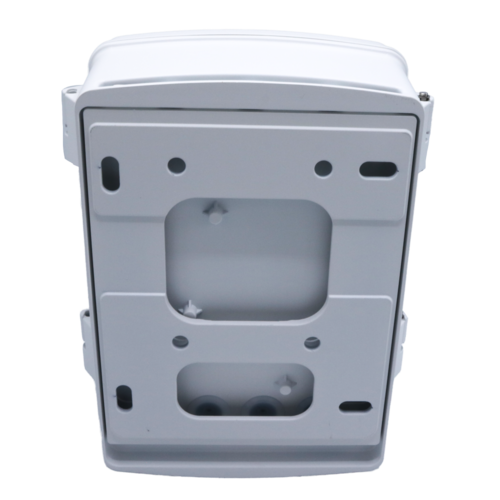

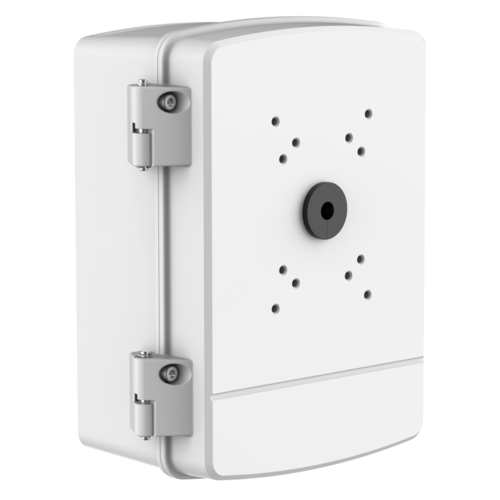

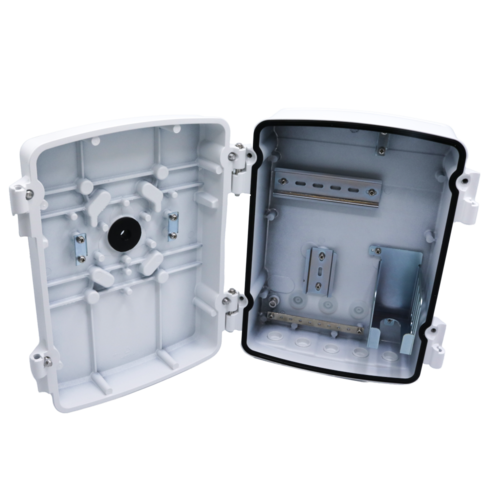

Luminys - LUM-J10 - Junction Box for Select P55/P54/P45 Series PTZ Camera Models
Part number:
Price:
• For Select P55, P54, and P45 PTZs
• Aluminum Alloy and SECC Construction
• Dimensions: 297.2 mm x 248.0 mm x 130.7 mm (11.69 in. x 9.76 in. x 4.13 in.)
• Max. Load Capacity: 17.6 lb (8.0 kg)
• Compatible With Wall, Corner, and Pole Mounts
• IP66 Rating
| Weight | 3.4 kg (7.5 lb) |
| Load Bearing Capacity | 8.0 kg (17.6 lb) |
| Material | Aluminum Alloy and SECC |
| Color | White |
| Dimensions (W x H x D) | 297.2 mm x 248.0 mm x 130.7 mm (11.69 in. x 9.76 in. x 4.13 in.) |
| Thread Size | G1/2 in. |
| IP Rating | IP66 |
| Operating Temperature | –40 °C to 60 °C (–40 °F to +140 °F) |
| Operating Humidity | < 90% (RH) |
| Storage Temperature | –40 °C to 60 °C (–40 °F to +140 °F) |
| Storage Humidity | 10% to 90% (RH) |
Name
Description
Size
Downloads
File
Luminys - LUM-J10 - Junction Box - Datasheet.pdf
0.1mb
